8.18.2 FUSE & RELAY BOX DETAILS
The fuses & relays are located in three fuse boxes,
1. Battery mounted fuse box or BDU (Battery distribution unit) mounted on battery in engine compartment
2. Engine compartment fuse & relay box or MDU (Main distribution unit) in the engine compartment.
3. Cabin fuse & relay box under the dashboard on driver side RH. It is part of main wiring harness.

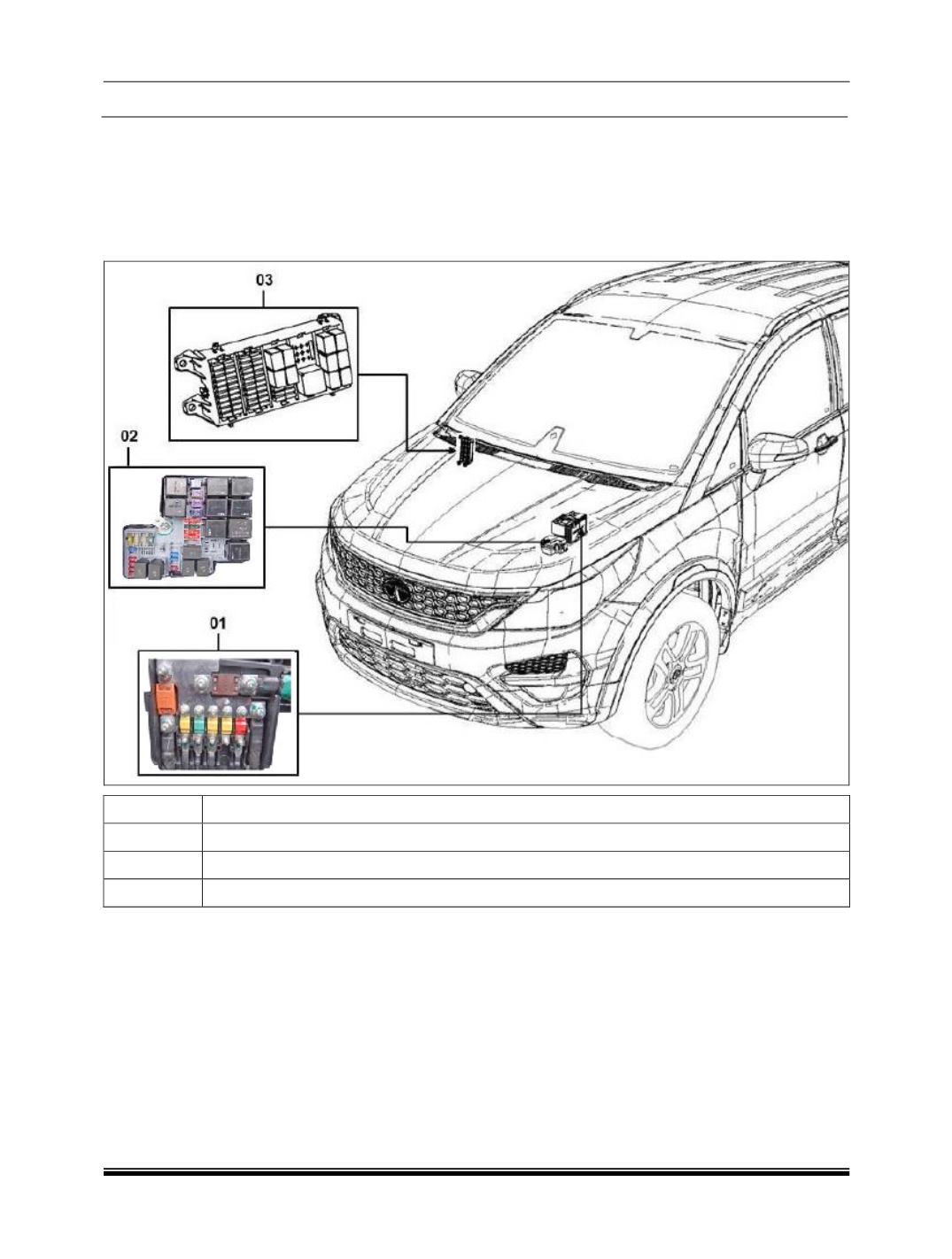

Callout
Description
01
Battery mounted fuse box
02
Engine compartment fuse and relay box
03
Cabin fuse and relay box
