ELECTRICAL
255

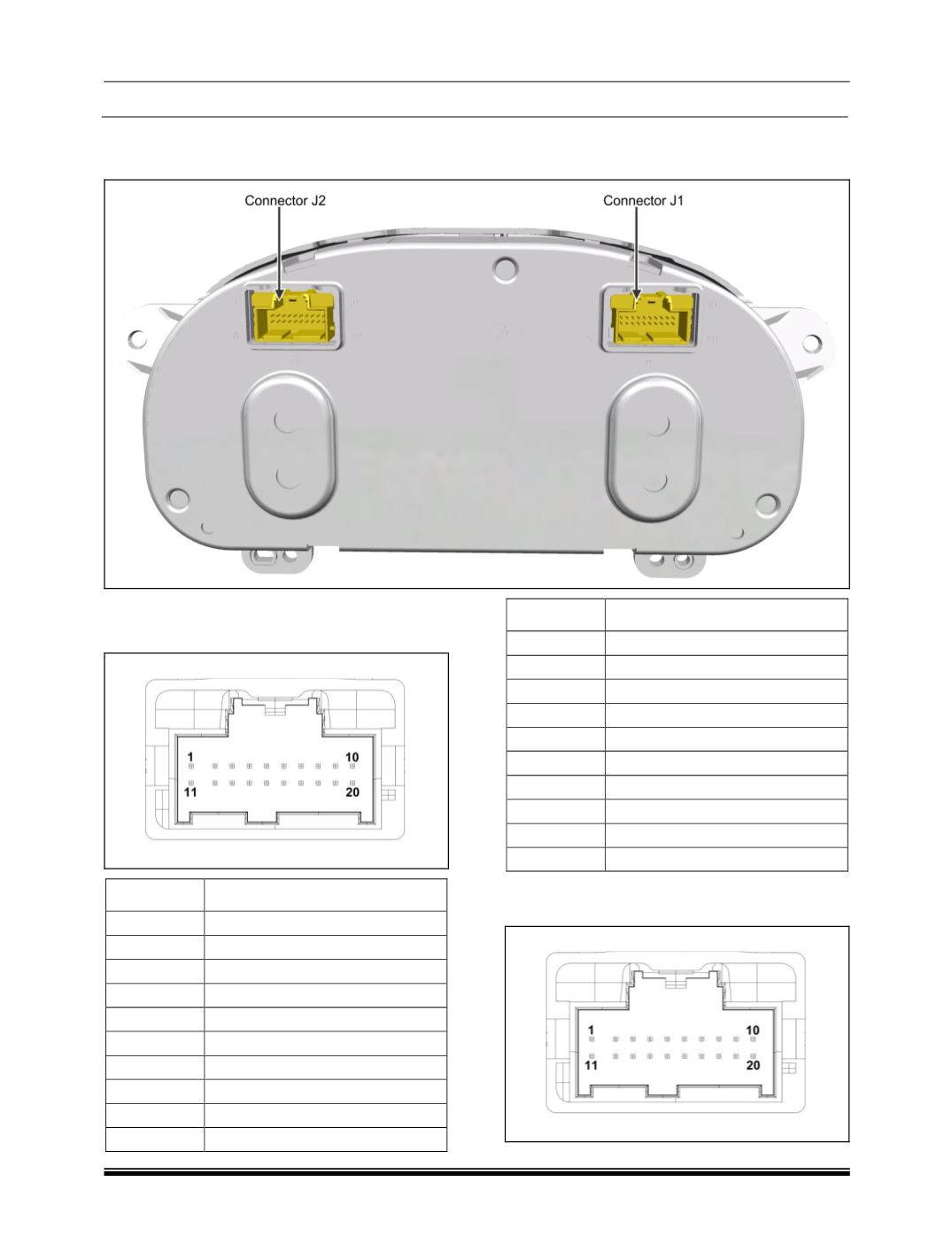

CONNECTOR DETAILS:
XE VARIANT INSTRUMENT CLUSTER
PINOUT DETAIL
i. Connector J1
PIN
DESCRIPTION
1
Dimmer Input
2
Not Used
3
Outside Ambient Temperature
4
Driver Door Open
5
Hazard
6
Not Used
7
Trip Switch Input
8
Low Engine Oil pressure
9
Battery Positive
10
Ignition Positive
PIN
DESCRIPTION
11
Ground
12
DIC Switch Input
13
Turn Right
14
Turn Left
15
Odometer Pulse Output
16
Not Used
17
Battery Negative
18
Co-Driver Door Open
19
CAN High
20
CAN Low
ii. Connector J2
