HEXA

ELECTRICAL

254

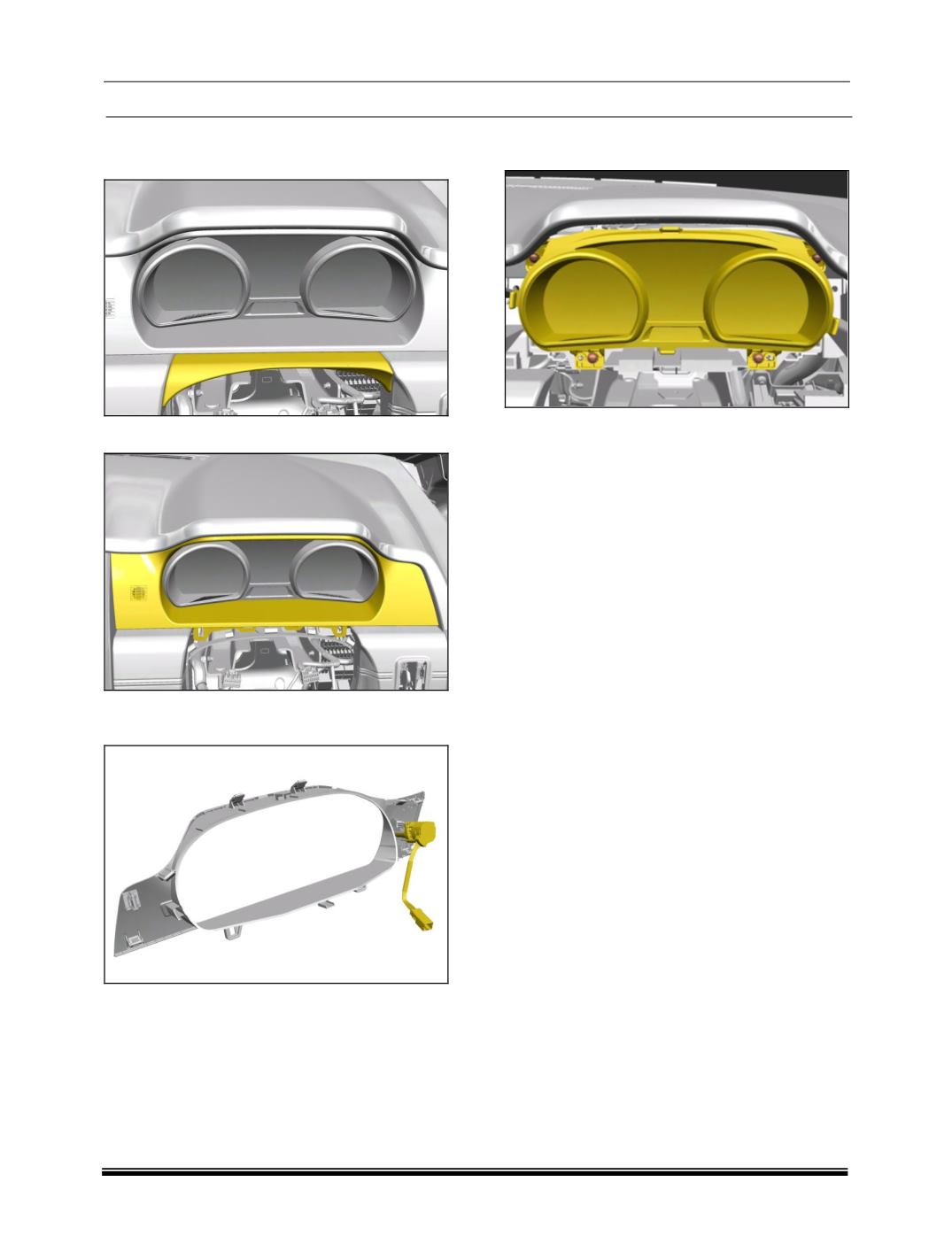

REMOVAL

1. Carefully pull the steering column upper cover.

2. Remove the instrument cluster cover.

3. Disconnect the electrical connection of incar

sensor & take out the cover.

4. Remove four mounting screws of Instrument

cluster.

5. Disconnect the electrical connection of

Instrument cluster.

6. Take out the cluster.

REFITMENT:

1. Connect the electrical connection of instrument

cluster.

2. Fit the instrument cluster.

3. Tighten the four mounting screws of instrument

cluster.

Tightening torque of screws – 0.44 Kgfm

4. Connect the electrical connection of Incar

sensor

5. Fit the instrument cluster cover.

6. Fit the steering column upper cover.
