REFITMENT:

1. Fit the wiper motor on the wiper linkage

assembly.

Tightening torque for bolts – 0.8 Kgfm.

2. Connect the electrical connection of wiper

motor.

3. Fit the wiper linkage assembly.

4. Fit the wiper motor mounting bracket.

5. Connect the washer hoses to washer nozzle on

leaf screen and fit the wiring harness as per

routine.

6. Fit the leaf screen.

7. Fit the wiper arm and blade assembly.

8. Connect the negative terminal of battery.

Note:

Take care to adjust wiper blade with suitable

distance and not to park on the sensor.

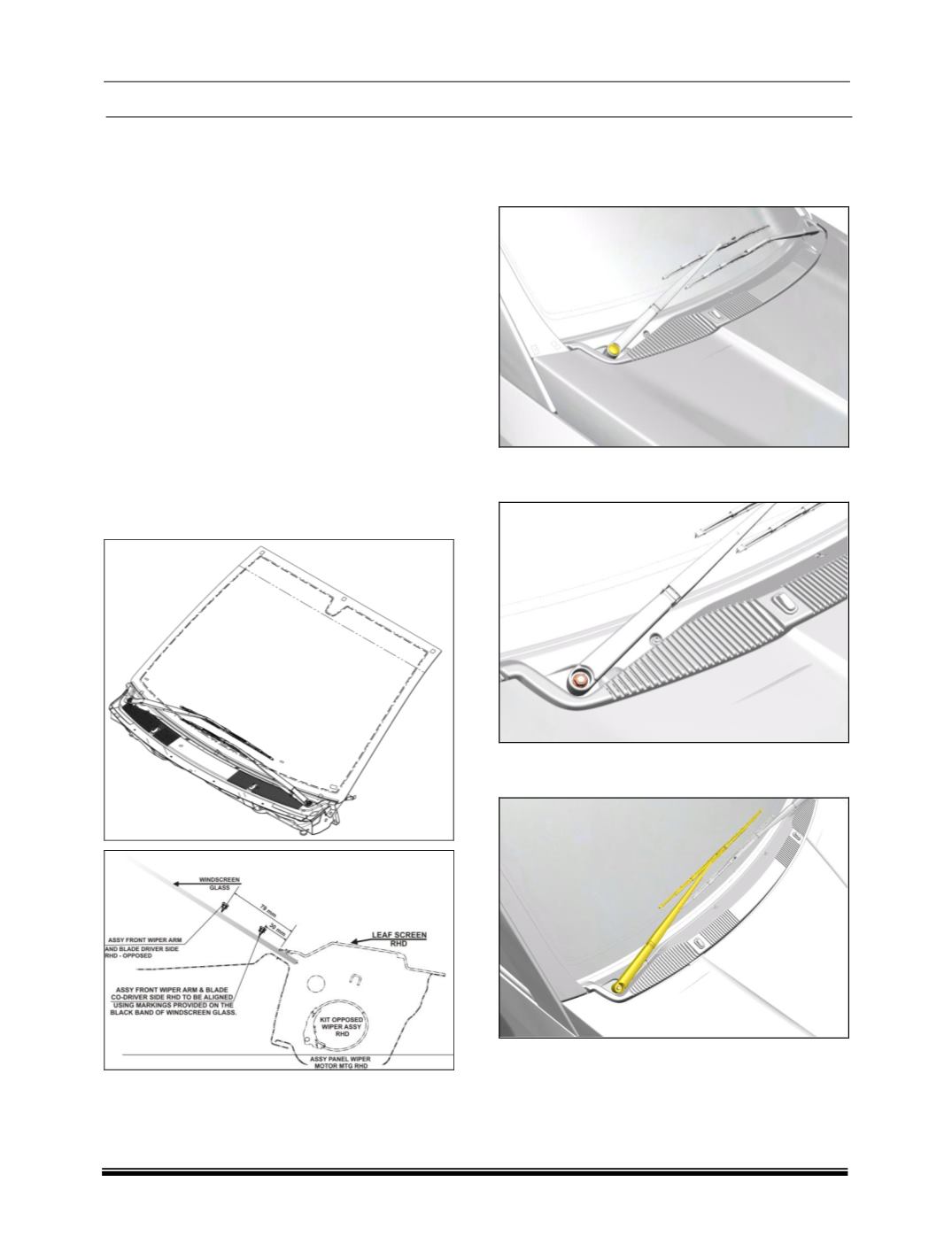

8.8.4 FRONT WIPER ARM and BLADE

REMOVAL

1. Remove the rubber cover.

2. Remove one mounting nut of wiper arm

assembly.

3. Take out the wiper arm and wiper blade

assembly from the shaft.
