FRONT AXLE (4X4)
43

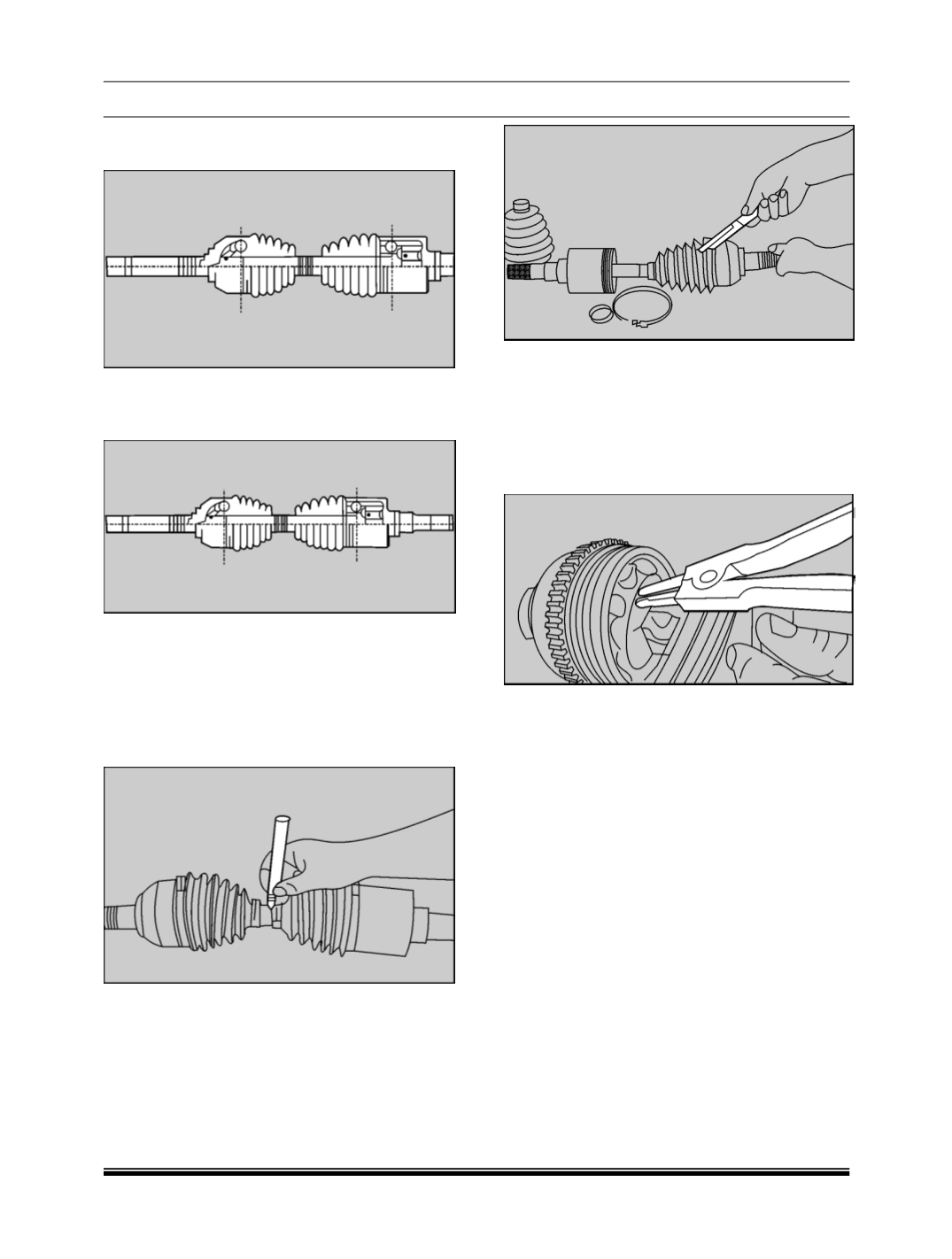

LH half shaft has male splines on DOJ side and it
fits inside gear in differential case.
RH half shaft has female splines and it fits on axle
shaft. Fix Rzeppa joints are used at wheel end.
Double offset joints are used at center section.
NOTE
Only rubber boots are serviceable in driveshaft
DISMANTLING
1. Mark the position of small end of the boot on
shaft. It has been fitted back in the same
position during reassembly.
2. Cut boot clamps and discard. Cut boots and
discards
NOTE
Boot clamps and boots are not to be reused.
3. Wipe away grease, to make snap ring of inner
race visible.
4. Expand snap ring and remove shaft by tapping
on outer race by brass hammer.
