TIAGO

AMT KIT

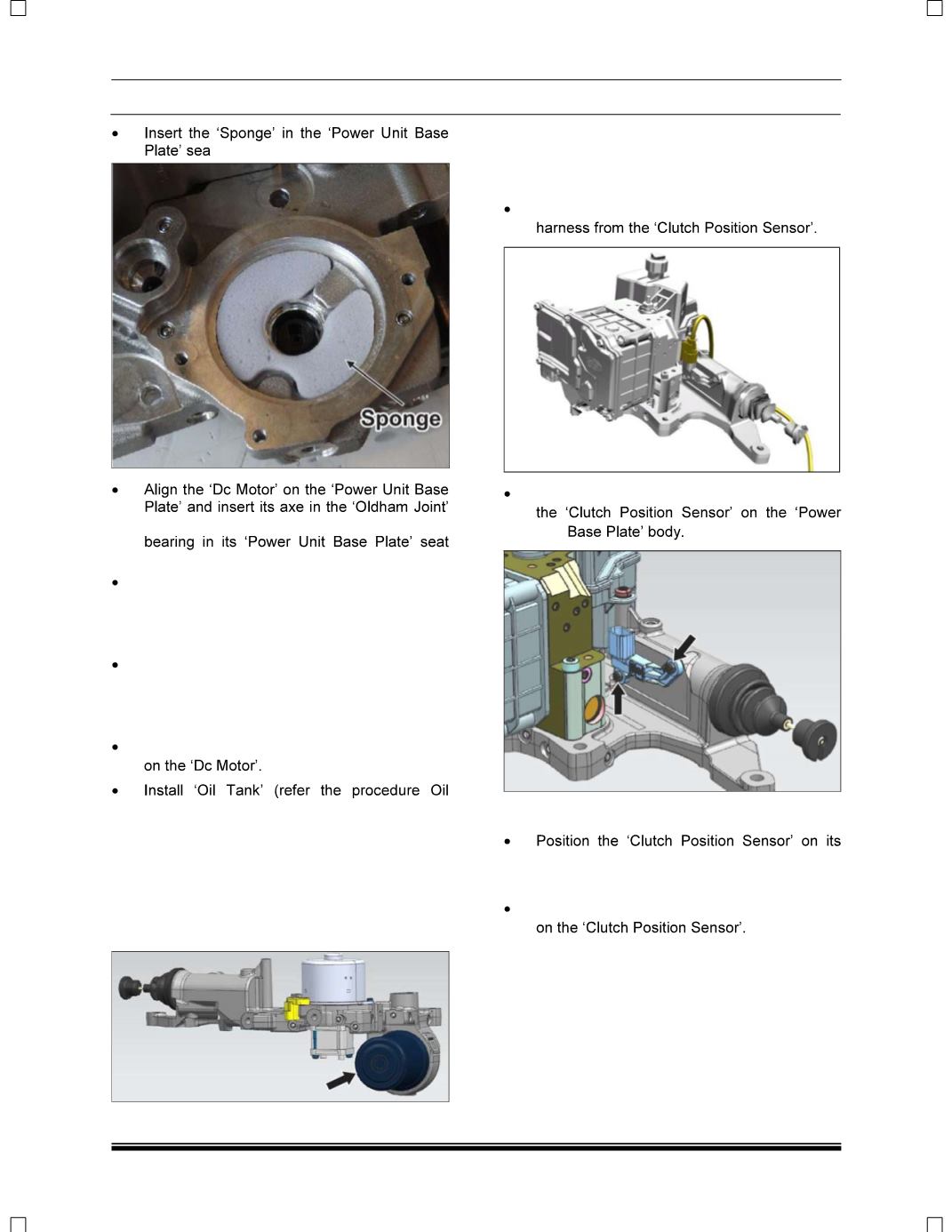

slot, continue the translation of the ball

with care.

Preassemble the two screws M5x15 in the

motor flange at 180° before and after the

third screw M5x15 (the ground screw)

without tighten.

Then screw with alternating sequence the

two screws at 180° until to reach the right

torque (6 ± 1 [Nm]) and then tighten the

ground screw with the same torque.

Connect the connector of the wiring harness

Tank Removal and Re-Fitment on Bench).

E. HYDRAULIC

OIL

ACCUMLATOR

REMOVAL AND RE-FITMENT:

DANGER!!

Do not remove hydraulic oil accumulator, it is

pressurized unit it can pose a safety threat.

F. CLUTCH POSITION SENSOR REMOVAL

AND RE-FITMENT:

Removal:

Disconnect the connector of the wiring

Unscrew and remove the two screws fixing

Unit

Installation:

seat using the two screws at the right torque

2.5 ± 0.1 Nm.

Connect the connector of the wiring harness
