TIAGO

AMT KIT

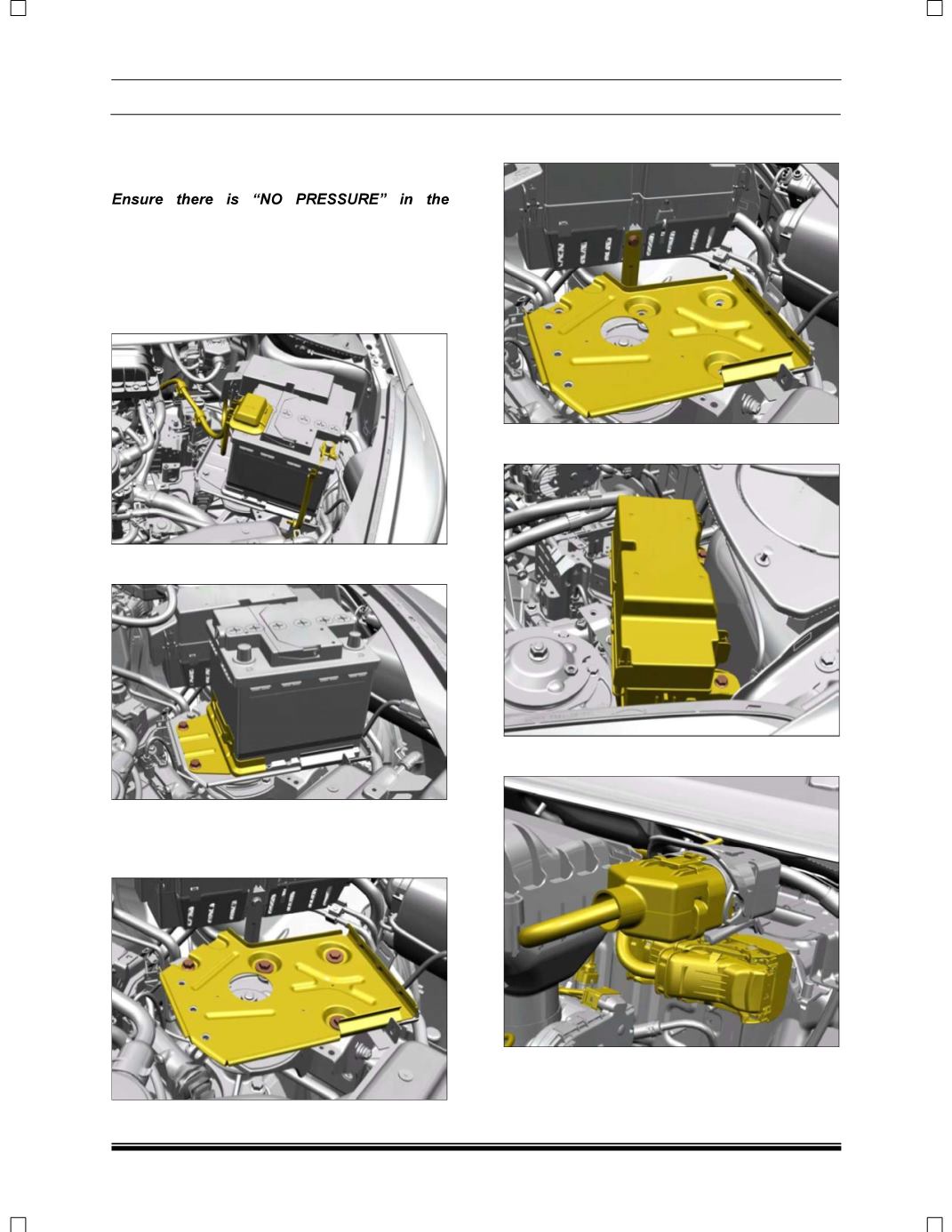

B. AMT KIT REMOVAL (FROM TOP)

CAUTION:

hydraulic circuit with the help of Diagnostic

tool. (Refer procedure for Depressurization of

AMT Kit).

1. Park the vehicle on two post lift, apply park

brake & put vehicle in neutral gear.

2. Remove Battery connection.

3. Remove Battery locking clip & remove

battery.

4. Remove wiring harness mounting on battery

tray with the use of panel popper.

5. Loosen & remove mounting bolts of Battery

Tray & remove battery tray.

6. Loosen & remove mounting bolts of Battery

Tray mounting bracket on fuse box & take it

out.

7. loosen & remove mounting bolts of fuse box

& keep Loosen fuse box assembly.

8. Disconnect ECU connector & front wiring

connector.
