FRONT SUSPENSION
19

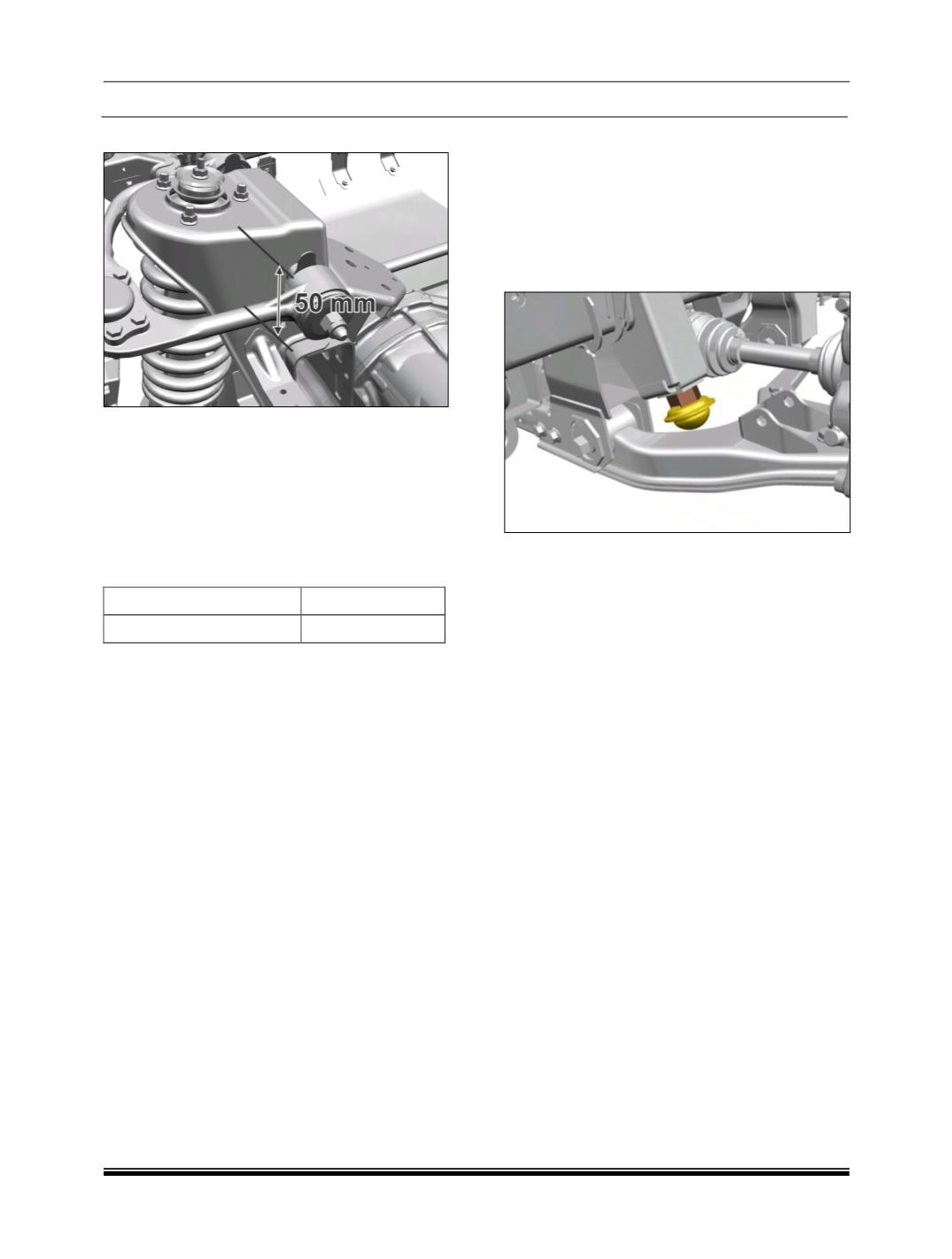

Distance at rear: 50mm
NOTE
Upper wishbone torque to be given in the
above specified condition.(Refer tightening
torque table)
Before assembly check condition of ball joint,
Check excessive play in the ball joint, if
excessive wear is found replace the same
with new one.
Ball Joint Axial Play
0.1 mm max.
Ball Joint Radial Play
0.2 mm max.
E. BUMP STOPPER
REMOVAL
Bump stopper is mounted on the frame. Loosen
and remove the bump stopper and separate the
same from the frame.
Follow the same procedure for other stopper
also.
ASSEMBLY
For assembly tighten the stopper assembly on the
frame.
NOTE
Make sure that the specified torque is always
maintained. Refer tightening torque table.
Check condition of bump stopper for any
cracks chipping, wear and tear before fitment.
