FRONT SUSPENSION
24

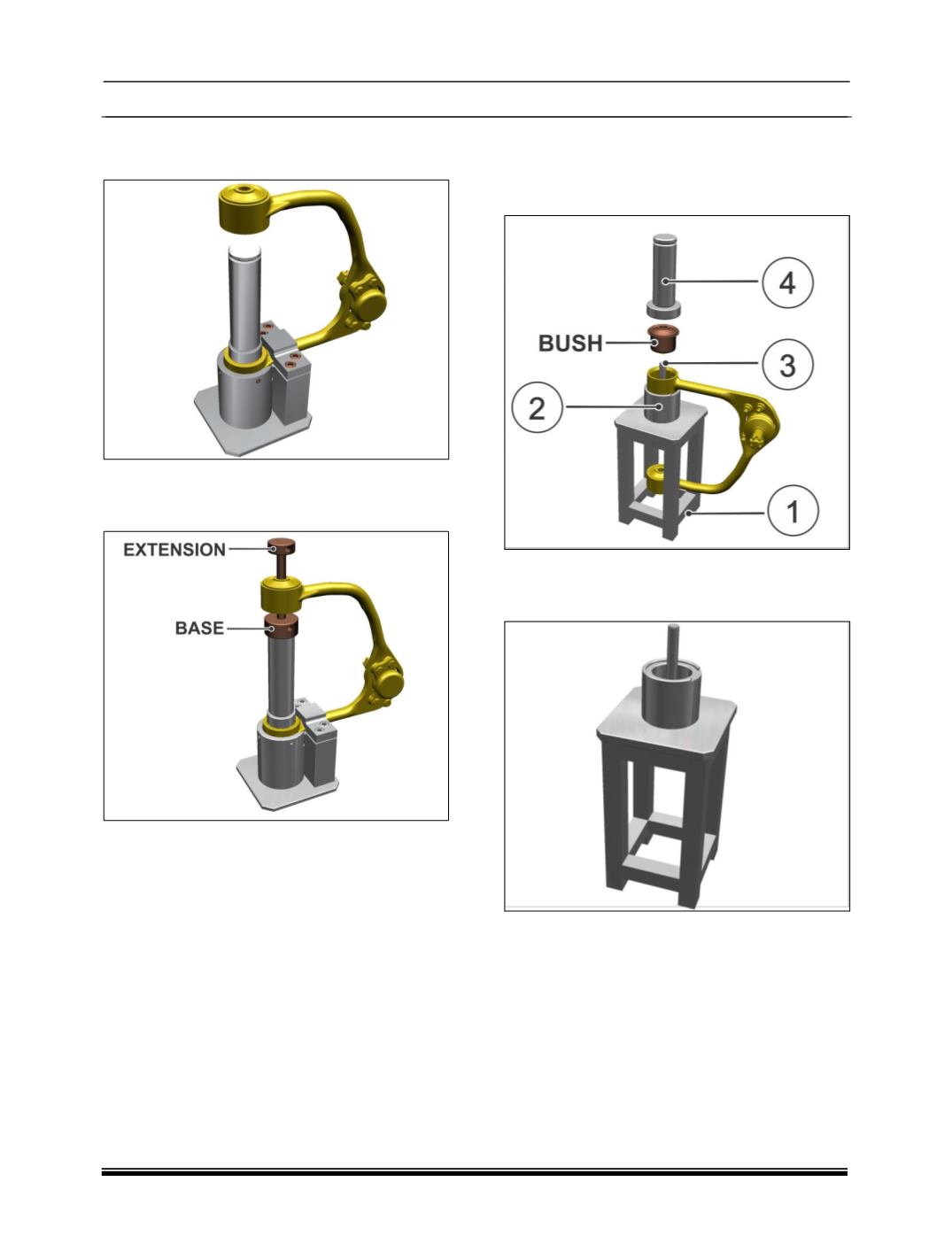

3. Place the drift between the Upper Wishbones
as shown in figure.
4. Place the base
between the drift and upper
wishbone and insert the Extension through
the rubber bush and lock it with the base.
5. Press the Extension with the hydraulic press
and take out the Wishbone bush.
NOTE
Follow the same procedure for bush removal at
other end.
INSTALLATION
1. Install the Upper Wishbone suspension bush
using special tool assembly
(Part No. 2870
5890 01 11)
as shown in below arrangement.
2. Take a tool holding structure stand and place
the support along with the guide bush on the
stand.
