HEXA

ENGINE

105

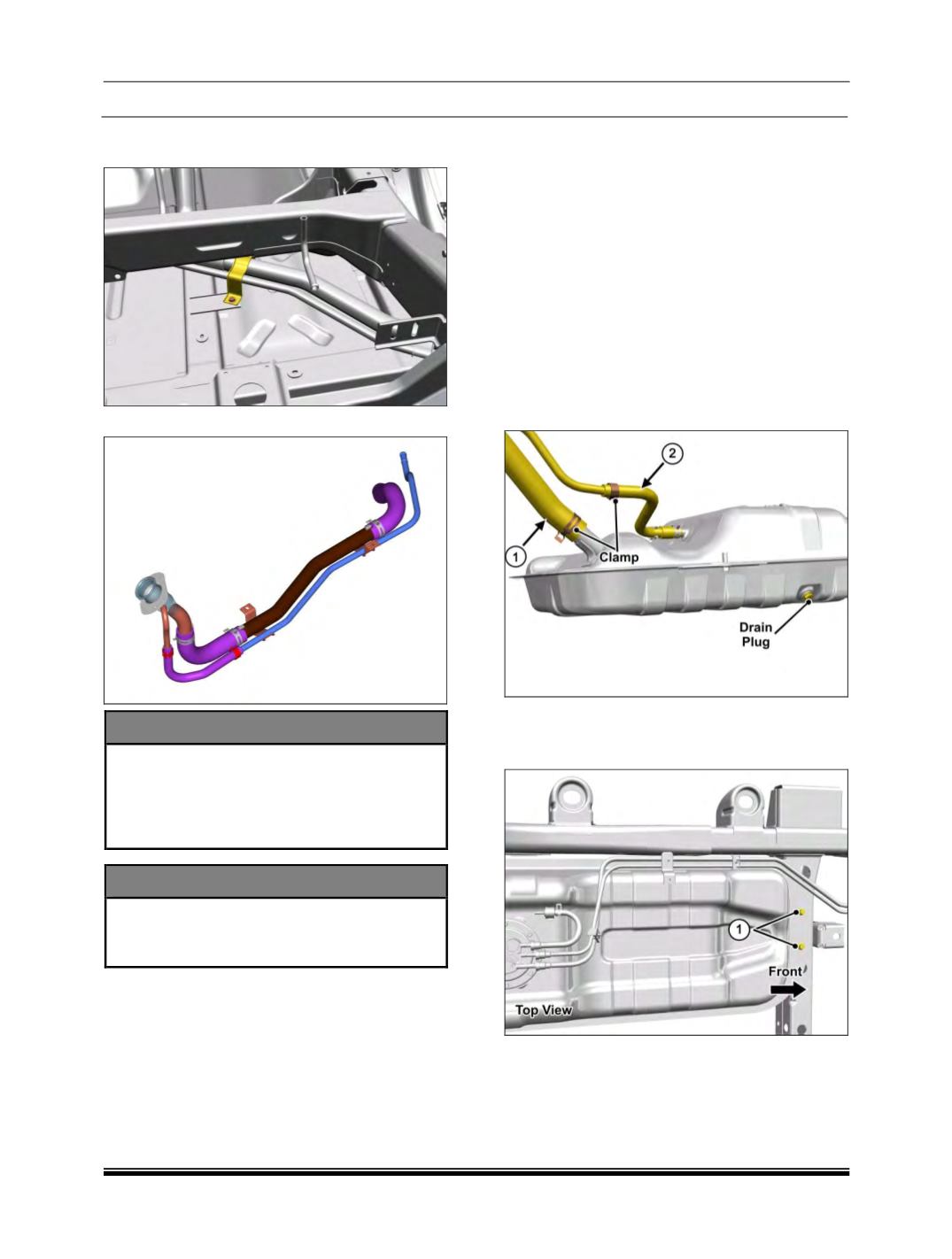

4. Loosen and remove fuel filler pipe clamp

bolts.

5. Take out fuel filler assembly from body shell.

WARNING



A small amount of fuel may be released

after fuel lines are disconnected. To avoid

the chance of injury, cover the pipe to be

disconnected with cotton cloth. Do not use

cotton waste

CAUTION



To avoid damage to vapour hoses while

disconnecting, slide back the clamps then

twist the lines as you pull

FITMENT :

Follow the reverse order of removal for fitment.

O. Fuel Tank :

Removal :

1. Place the vehicle in a 2 poster lift.

2. Disconnect the electrical connections of the

in- tank pump and the fuel lines. Refer In-tank

pump removal process.

3. Raise the vehicle and drain the fuel.

NOTE :

• Ensure that the drain plug is refitted after the

fuel is being drained.

• Refit new washer in drain plug and apply

specified torque (4 Kg-m).

4. Disconnect the fuel filler hose (1) and the

breather hose (2).

5. Support the fuel tank from below.

6. Remove the front mounting bolts (1), mounted

from top
