ENGINE
100

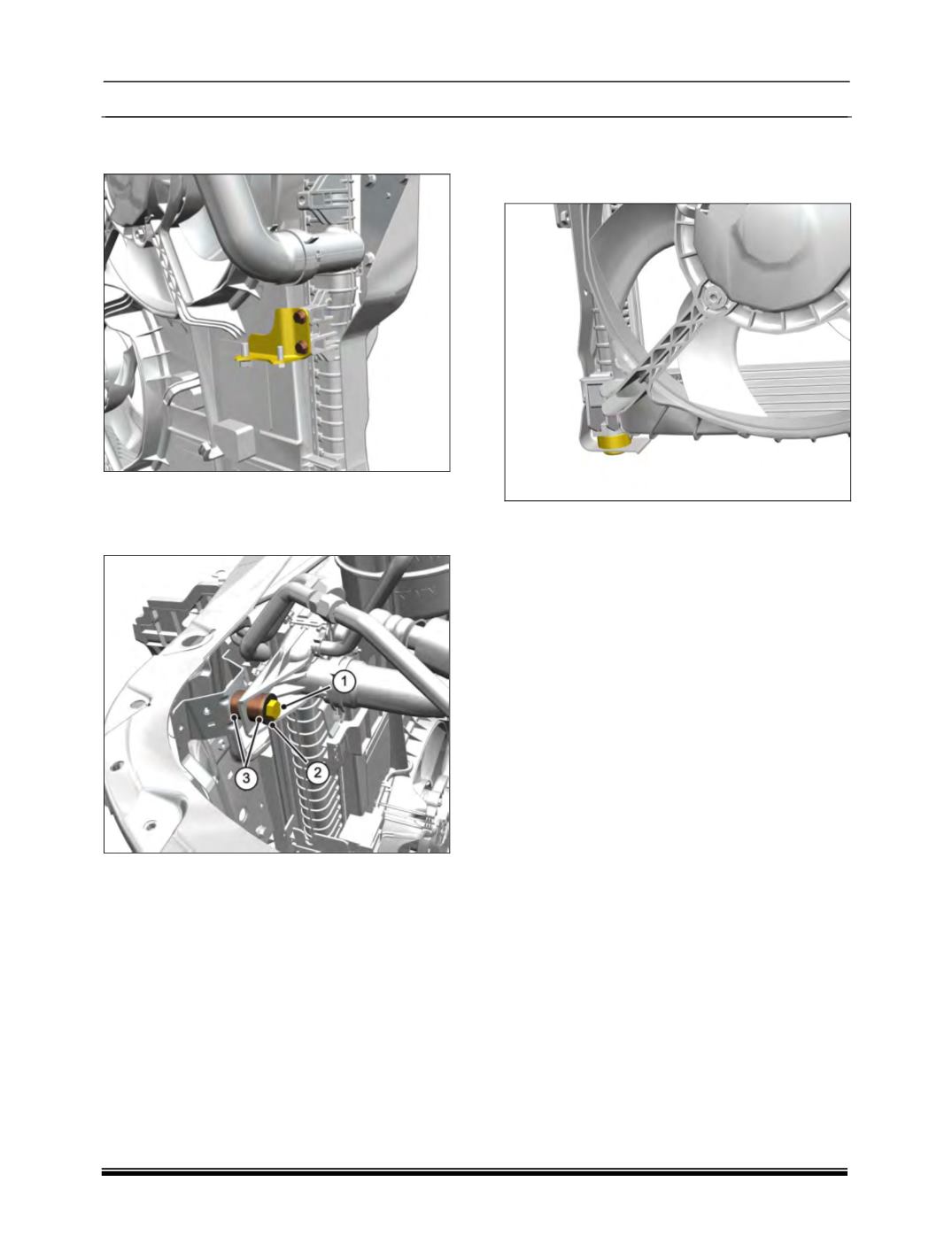

8. Remove the intercooler inlet pipe bracket from
radiator by loosening the bolts.
9. Loosen and remove the LH radiator top
mounting screw (1), along with the washer (2)
and grommet (3). Similarly remove the RH
mounting screw.
10. Tilt the radiator inwards and lift the radiator
and condenser assembly from the grommet
on the bottom mounts, both LH and RH
simultaneously.
11. After removing the radiator and condenser
assembly out, separate the condenser from
the radiator, refer condenser removal
procedure.
Fitment :
For fitment follow the reverse order of removal.
Tighten the following fasteners to the
recommended torque.
Refer engine tightening torque section.
Radiator top mounting
M10 bolt – (4.6 kg-m)
Refrigerant lines on condenser
M6 bolt – (0.9 ̴
1 kg-m)
