ENGINE

113

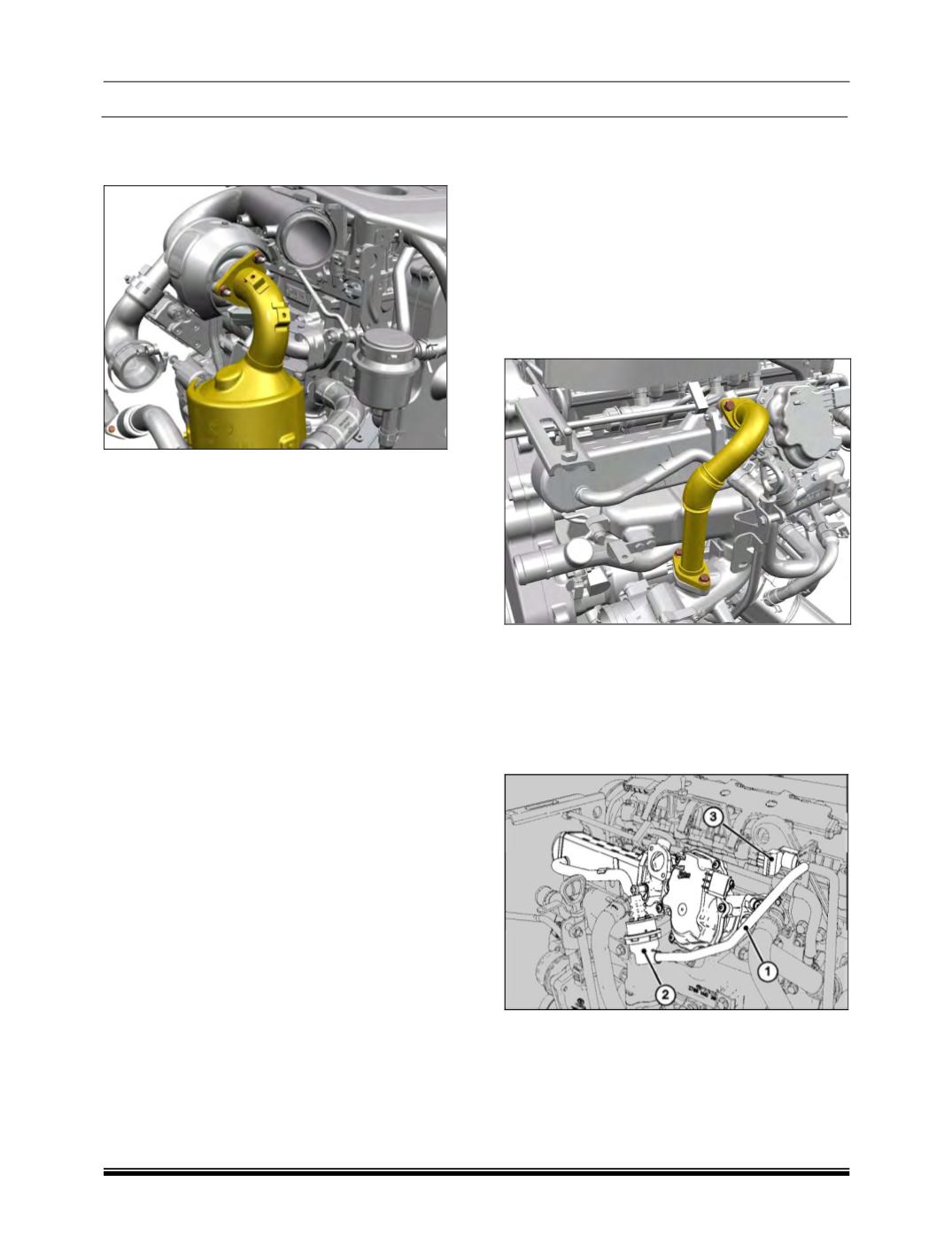

5. Loosen and remove the mounting screw of

close coupled catalytic converter and remove

close coupled catalytic converter.

Fitment :

For fitment follow reverse procedure of removal.

X. EGR Cooler Module :

Removal :

1. Drain the coolant. Refer coolant replacement

procedure in Engine “On Vehicle Repair

‘section

2. Open the bonnet and remove the engine

cover.

3. Disconnect the electrical connection of the

EGR valve.

4. Loosen and remove the bolts to disconnect

the EGR pipe from the EGR cooler assembly.

NOTE :

The EGR pipe is bent in the intake adaptor pipe

and cannot be removed. Do not attempt to

remove it without the intake adaptor pipe.

5. Disconnect the hose (1) connecting the

vacuum solenoid valve (3) to the By-pass

actuator valve (2).
