The Specified resistance values and calibration details of the Tank unit fuel gauge are given below.
Float Position
Full
-
-
Half
-
Empty High Empty Low
Usable fuel
volume in liters
58
48.5
39
30
21
12
3
Height in mm
152
120
99
80
61
40.5
20.5
Resistance
value in Ohms
8
32
51
67
83
103
126
Tolerance in
Ohms
±2
±4
±4
±2
±4
±2
±2

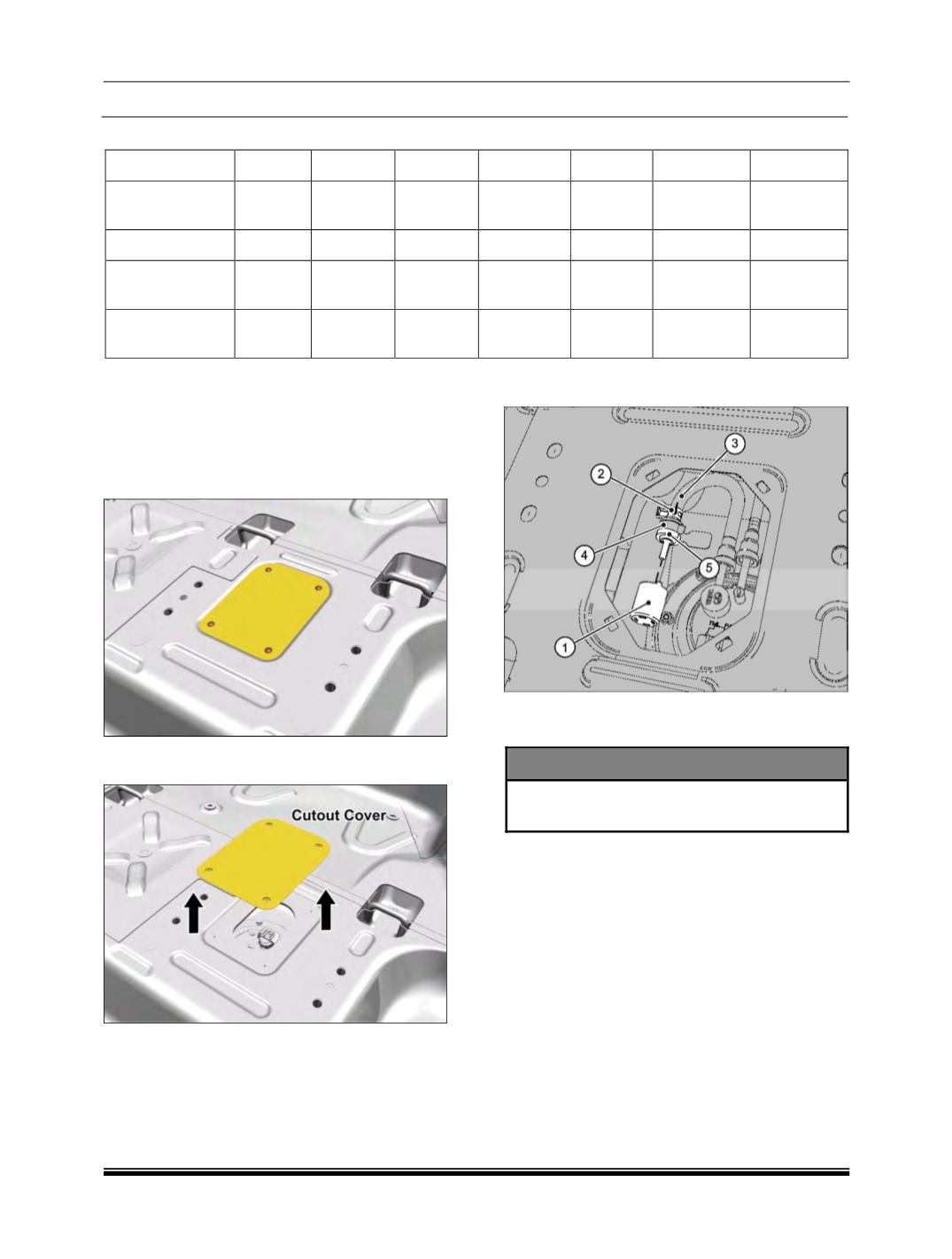

R. Tank Pressure Valve (TPV) :
REMOVAL :
1. Fold the 2
nd
row RH Seat and somersault it
to access the in tank pump cut out.
2. Lift the carpet with foam (1) at the cutout.
3. Loosen and remove the four screws of the
cutout cover and remove it.
4. Remove the TPV protection cap (1).
5. Loosen the clamp and disconnect the pipe.
6. Remove the TPV from the clamp.
CAUTION
Be careful not to damage the vapour line
pipe. If found damaged replace it
.
INSPECTION :
1. Check tank pressure valve for crack or
damage.
2. Replace if any damage is found.
3. When air is smoothly blown from the tank unit
side it should pass through the valve.
4. Similarly if air is smoothly blown from the
open end side it should pass through the
valve.
5. If air does not pass through valve in step 2 or
hard blows are required in step 3, replace
tank pressure valve.
