HEXA

ELECTRICAL

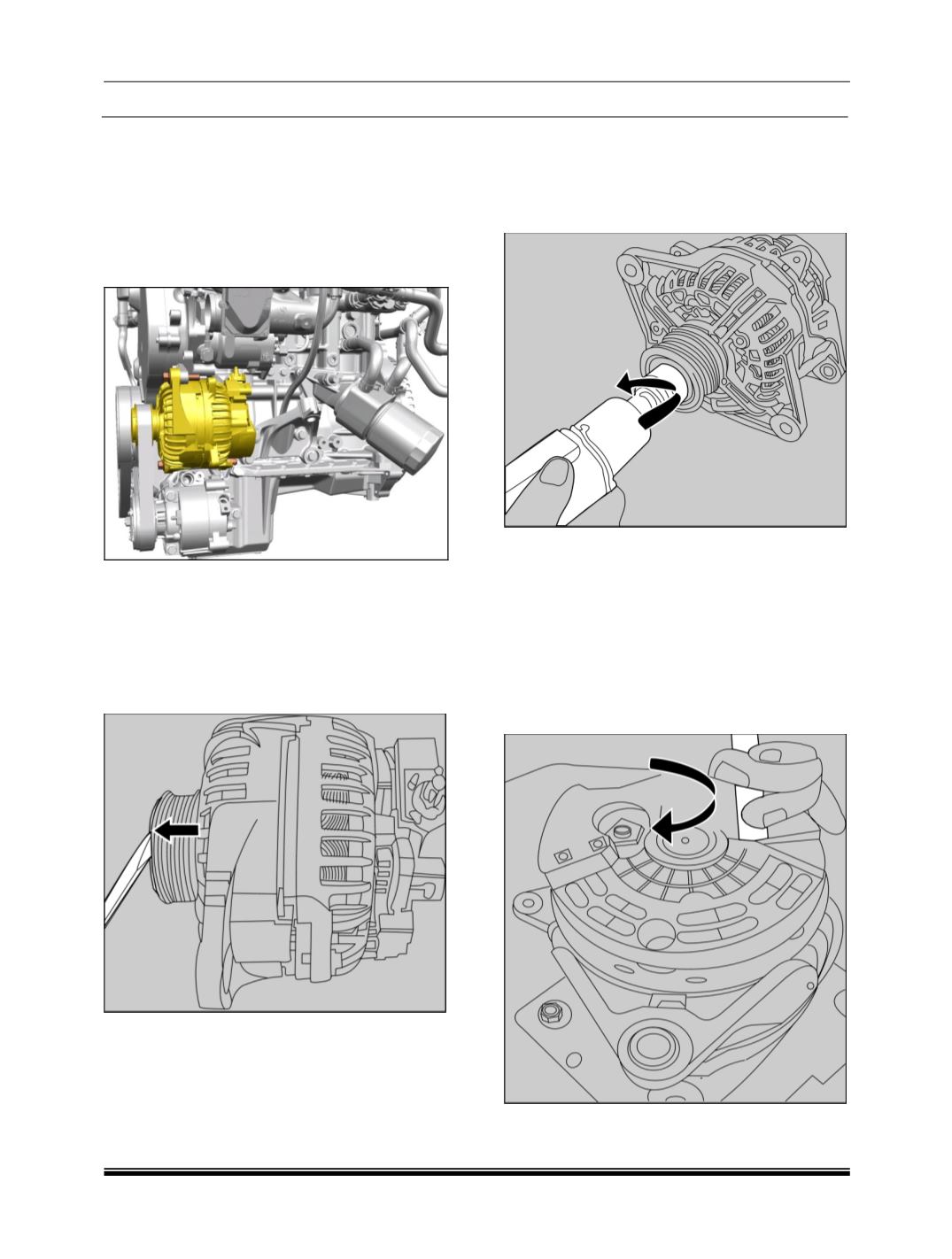

REMOVAL:

1.Remove the Alternator belt

(Refer alternator belt

removal procedure).

2.Disconnect the electrical connection.

3.Loosen and remove the front mounting bolts (1)

and the rear mounting bolt (2) to remove the

Alternator (3).

DISMANTLING PROCEDURE

1. REPAIR INSTRUCTIONS:

1.1 Dismantling of protective cap for OAP:

To dismantle the inner Snapping Protective cap,

the elastomer membrane is pierced with a sharp

tool (

Screw Driver

) as shown in the fig.

1.2 Dismantling of Overrunning Pulley

Hold the alternator pulley by hand or with a pulley

holder, using the serration tool overrunning

alternator pulley can be unscrewed from the

alternator shaft.

NOTE:

Assembly/dismantling tool is to be designed with

serration in accordance to DIN 5487-7X20.

Mounting chamfer in radial and axial are

recommended in the area around the serrations.

1.3 Dismantling of Protective cap:

Turn the alternator around and remove protective

cap and nuts and remove the screw. Take off the

Protection cap.
