ELECTRICAL

23

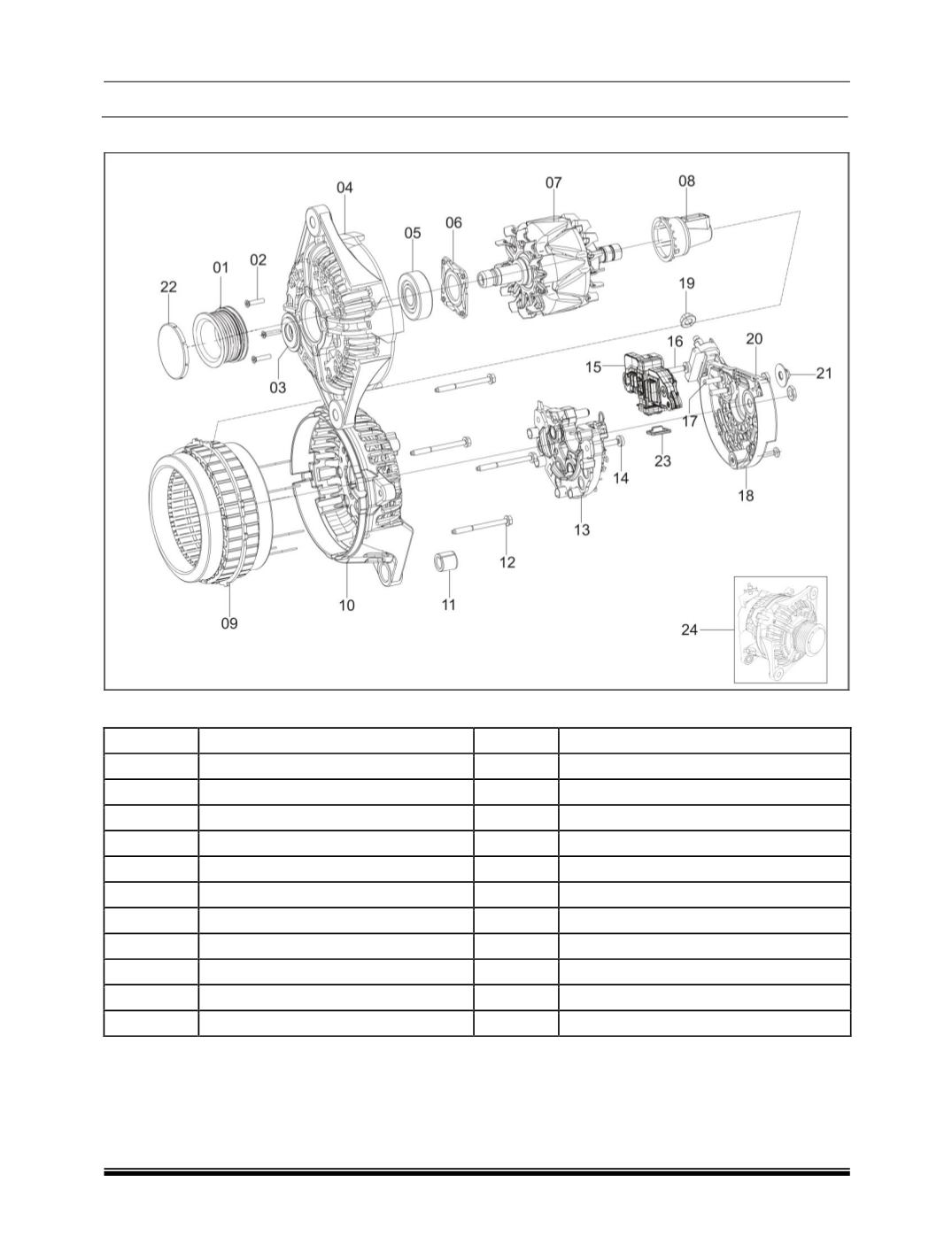

EXPLODED VIEW:

PART LIST:

DESCRIPTION

DESCRIPTION

1

Solid Pulley

12

Hexagonal Screw

2

Counter Sunk-Head Screw

13

Rectifier

3

Spacer Ring

14

Washer And Screw Assembly

4

Drive End Shield

15

Transistor Regulator

5

Deep Groove Ball Bearing

16

Oval-Head Screw

6

Cover Plate

17

Washer And Screw Assembly

7

Rotor

18

Protective Cap

8

Fitting Ring

19

Flanged Nut

9

Stator

20

Hexagonal Nut

10

Slip Ring End Shield

21

Protective Cap

11

Bush

22

Protective Cap for OAP
