REAR AXLE

31

IV DIFFERENTIAL

SHIM

SELECTION

PROCESS

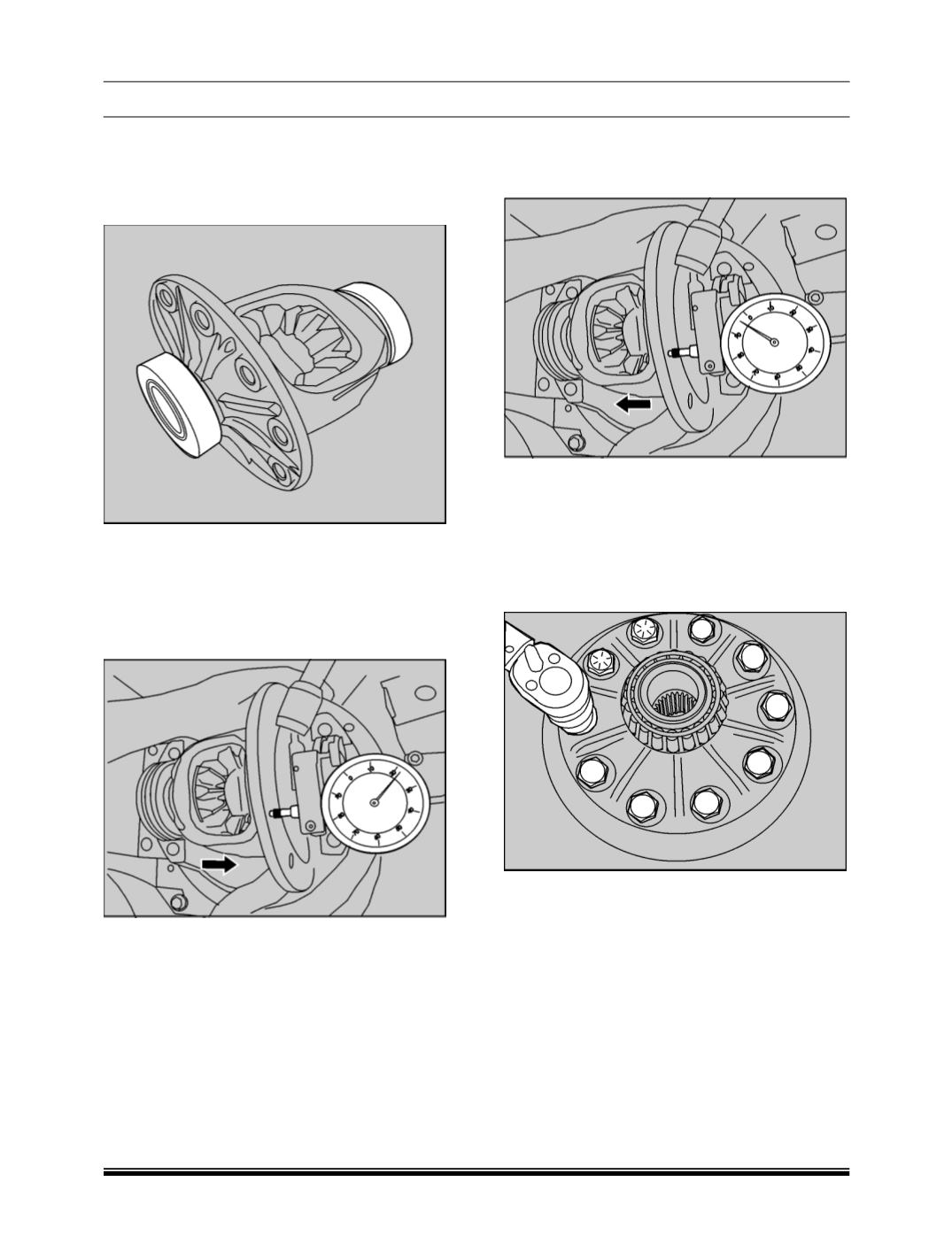

1. Assemble dummy differential bearings

(Part

No. 289458903505)

2. Assemble differential case into carrier.

(

Without Ring Gear)

3. Mount dial indicator with a magnetic base.

Locate its tip on that surface of case and force

differential assembly to the extreme in the

direction towards the indicator.

4. With force still applied, set indicator to zero.

Force differential assembly to the extreme end

in opposite direction.

5. Repeat above steps until the same reading is

obtained.

6. Record reading in the format given as 'A'.

7. Remove master bearing and set aside.

8. Assemble ring gear to case. Torque ring gear

screws to specification.

NOTE

Use new ring gear screws.

9. Assemble master differential bearing

(Part No.

289458903505)

on to case hubs.
