REAR AXLE
37

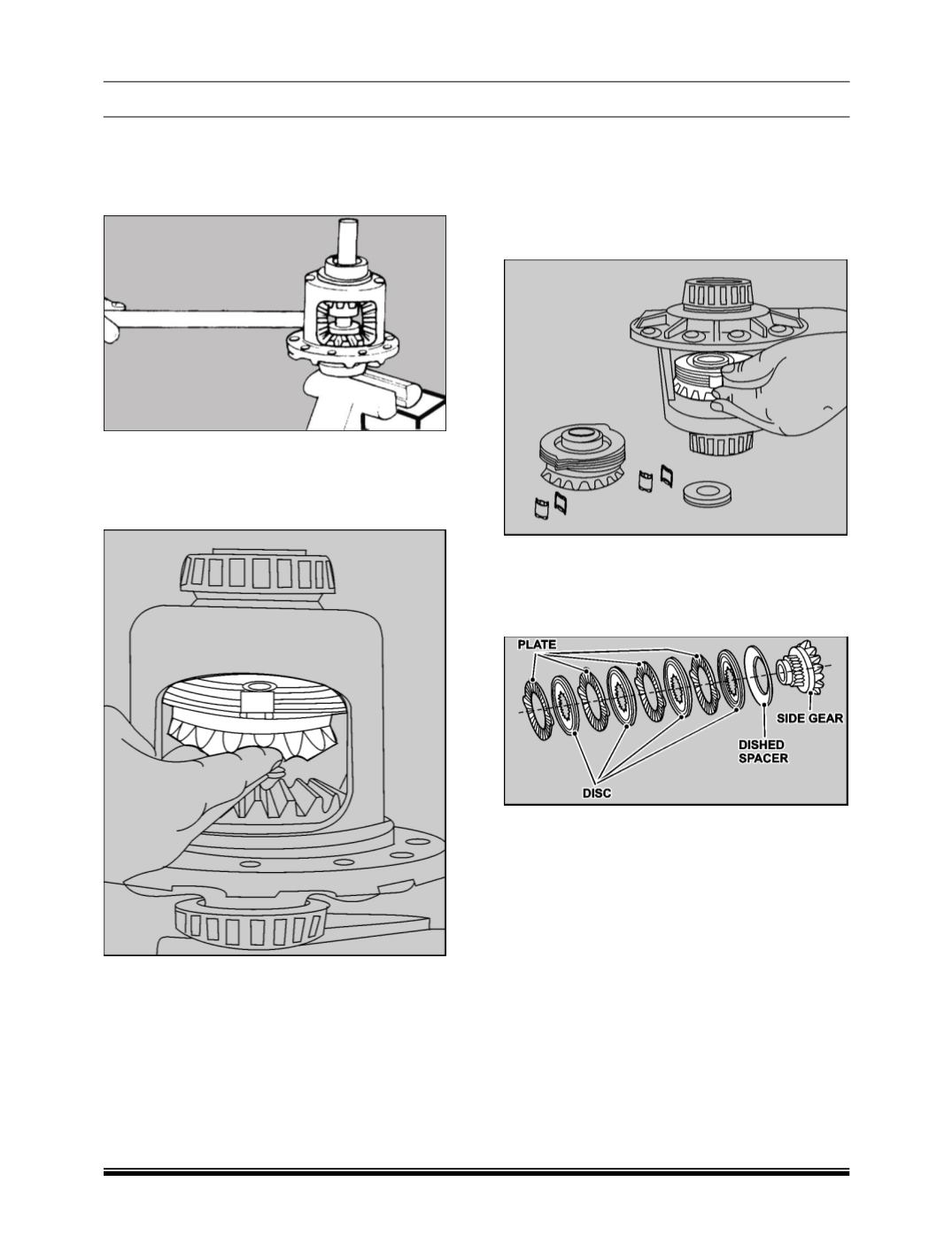

8. Insert small OD end of turning bar into cross
pin hole of case. Pull on bar and case will
rotate until the pinion mate gears can be
removed from opening.
9. It might be necessary to adjust the forcing
screw slightly to allow the case to rotate.
10.Hold top clutch pack with one hand and
remove tools.
might be necessary to hold threaded adaptor
with screw driver.
12.Remove top side gear and clutch pack. Keep
the stack of plates and discs intact in exactly
the same position while they are being
removed. Remove the case from the axle
shaft. Turn case with the flange or ring gear
side up and allow the step plate, side gear and
clutch pack to be removed from the case.
13.Remove move the retainer clips from both
clutch packs to allow separation of plates and
discs. Keep the stack of plates and discs exact
as they were removed.
