Automated Manual Transmission
39

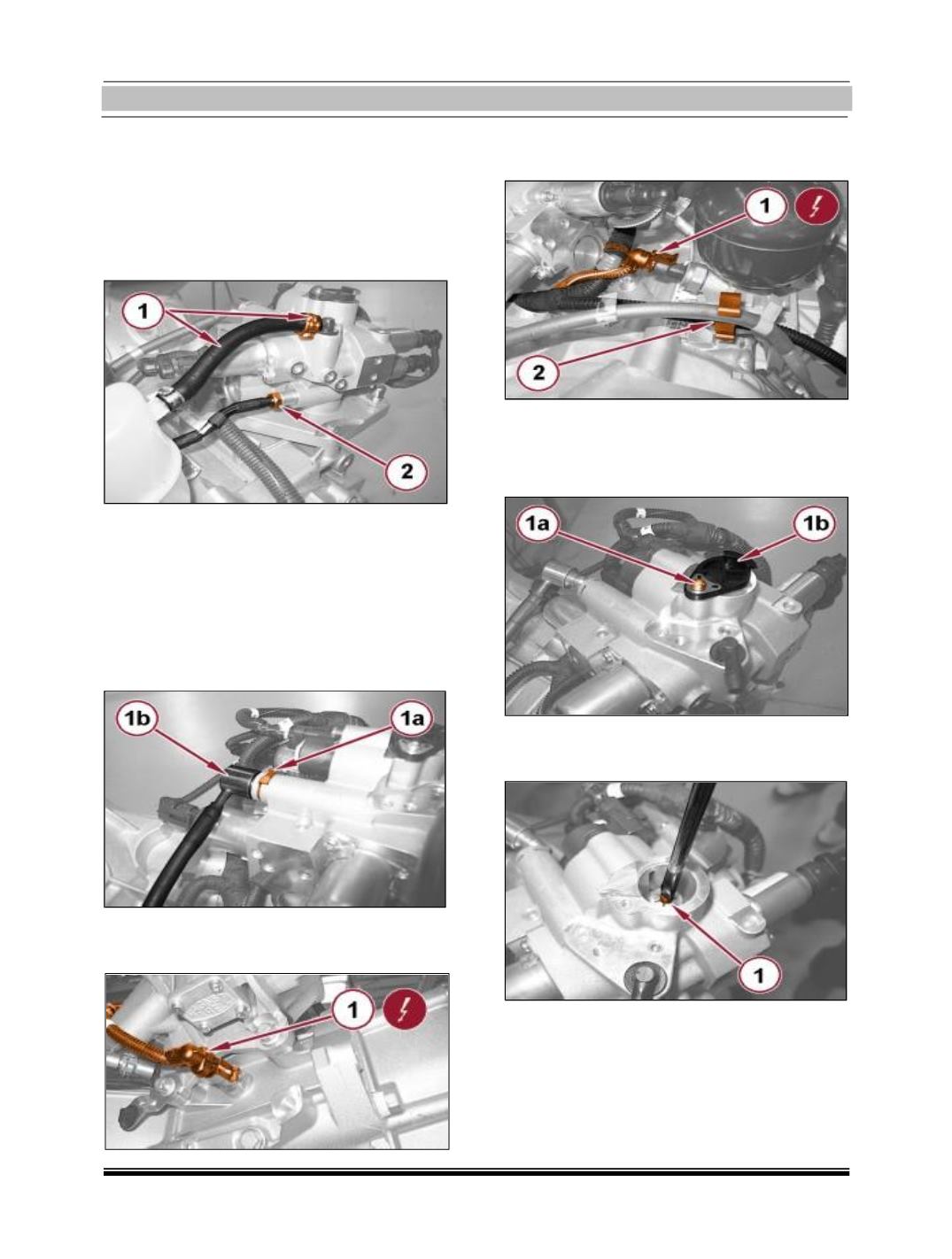

Hydraulic Unit/Electro hydraulic Selection
Gearbox Electric Pump Assembly with Gear-
box Removed Removal:
1. Loosen the band and disconnect the return
pipe from solenoid valve unit to reservoir,
solenoid valve unit side.
2. Loosen the connector for the pipe from
electric pump to solenoid valve unit, sole-
noid valve unit side.
1. Raise the retaining clip (1a) and disconnect
the pipe from hydraulic unit to clutch re-
lease actuator (1b), hydraulic unit side,
complete with O-rings.
1. Disconnect the electrical connection for
the gearbox input speed sensor.
1. Disconnect the electrical connection from
the oil pressure sensor.
2. Release the wiring from the retaining clip.
1. Loosen the screw (1a) and remove the pro-
tective cover (1b).
1. Rotate the gear selection actuator anti-
clockwise by 90°.
1. Loosen the screws (1a) and remove the
solenoid valve unit (1b).
