Automated Manual Transmission
35

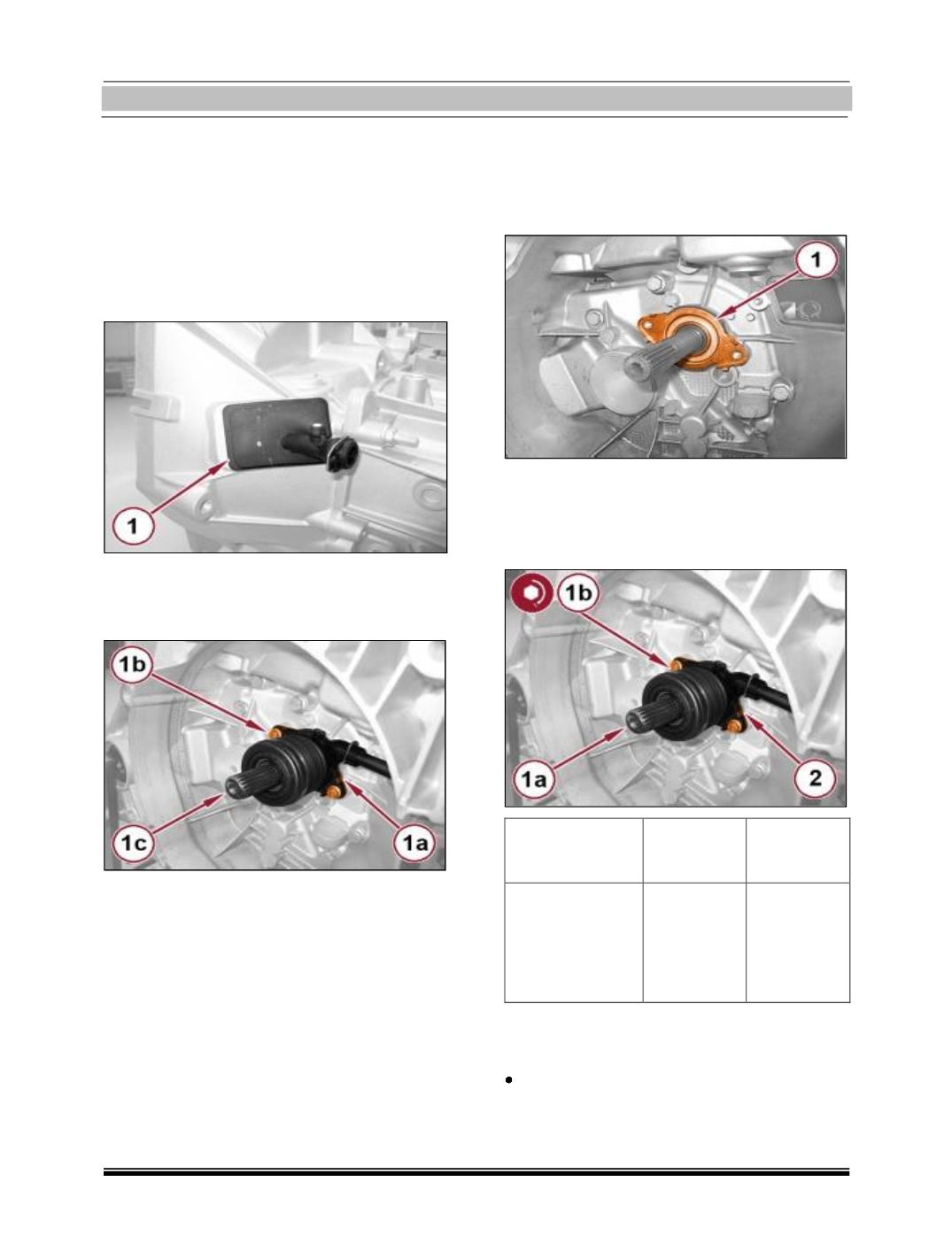

Hydraulic Clutch Actuator with Coaxial Con-
trol with Gearbox Removed Removal:
NOTE:
Back to hydraulic selection gearbox clutch
position sensor.
1. Prise up the protection from the gearbox
bell housing and remove it.
1. Open the retaining tabs (1a), Loosen the
screws (1b) and remove the coaxial con-
trol hydraulic clutch actuator (1c).
Hydraulic Clutch Actuator with Coaxial Con-
trol with Gearbox Removed Fitment:
1. Apply sealant to the new flange and oil
seal and place it in position.
1. Place the coaxial control hydraulic clutch
actuator (1a) back in its housing and tight-
en the screws (1b) to the prescribed
torque.
Component
Fixing Di-
ameter
Value (Nm)
Clutch Control
coaxial actua-
tor
Screw M6
9 – 11
2. Fold over the retaining tabs for the flange
with oil seal.
Place the gearbox bell housing protection
back in position.
