Automated Manual Transmission
36

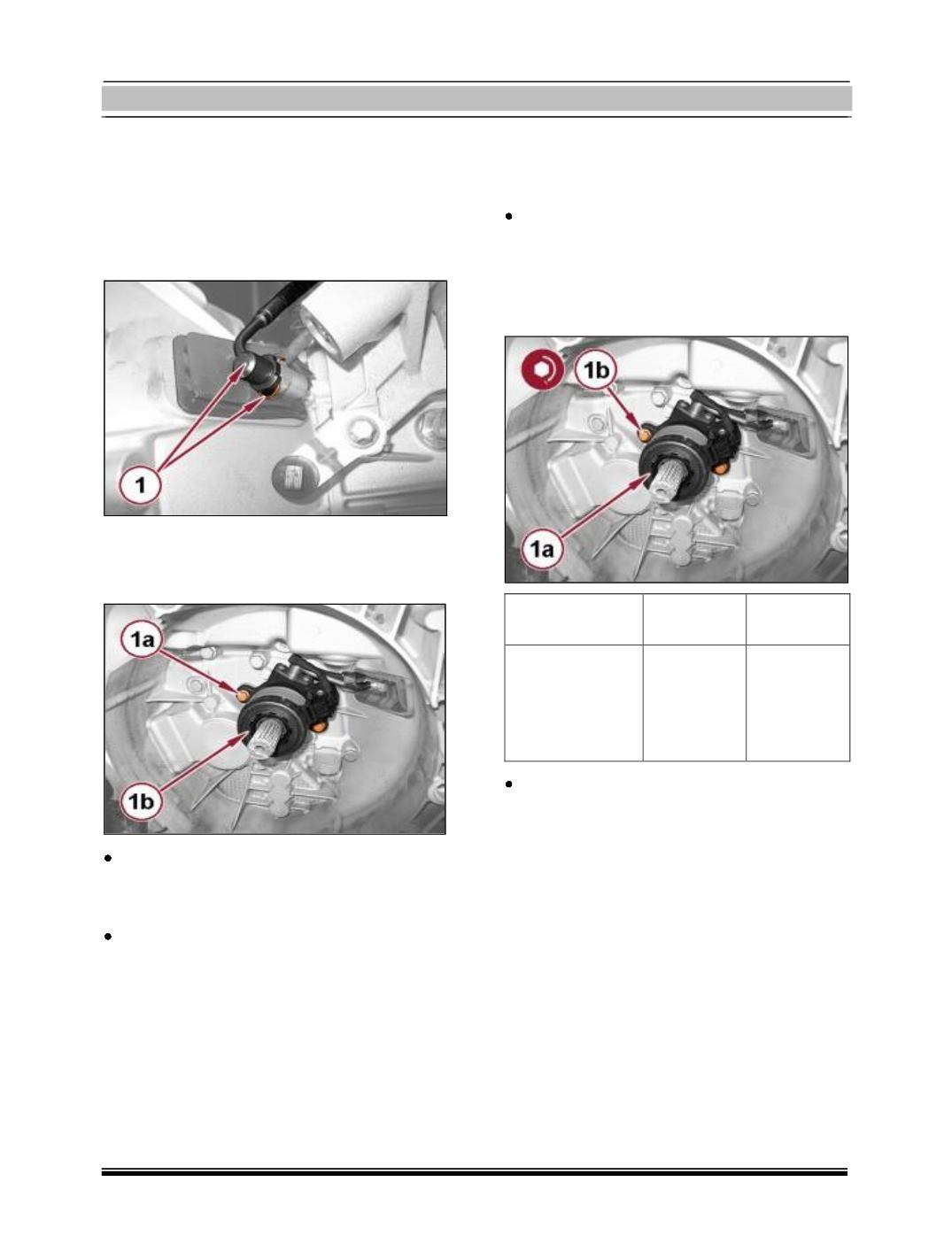

Hydraulic Clutch Actuator with Coaxial Con-
trol with Gearbox Removed Removal Valid
For Versions with Robotised Gearbox:
1. Raise the clip and disconnect the pipe from
master cylinder to clutch release actuator,
actuator side.
1. Loosen the screws (1a) and remove the
clutch hydraulic actuator (1b) releasing it
from the sealant.
Remove the residues of sealant from the
clutch - gearbox hydraulic actuator contact
surfaces.
The hydraulic actuator includes the clutch
position sensor, which is not individually
managed at the Spare Parts Department.
Hydraulic Clutch Actuator with Coaxial Con-
trol with Gearbox Removed Fitment Valid
For Versions with Robotised Gearbox:
Lay a bead of sealant on the clutch - gear-
box hydraulic actuator contact surfaces.
1. Fit the hydraulic clutch actuator (1a) in
place and tighten the screws (1b) to the pre-
scribed torque.
Component
Fixing Dia
Value (Nm)
Clutch Control
coaxial actua-
tor
Screw M6
9 – 11
Connect the pipe from master cylinder to
clutch release actuator, actuator side,
complete with new 0-ring and engage the
retaining clip.
