8.16 ENTERTAINMENT SYSTEM:

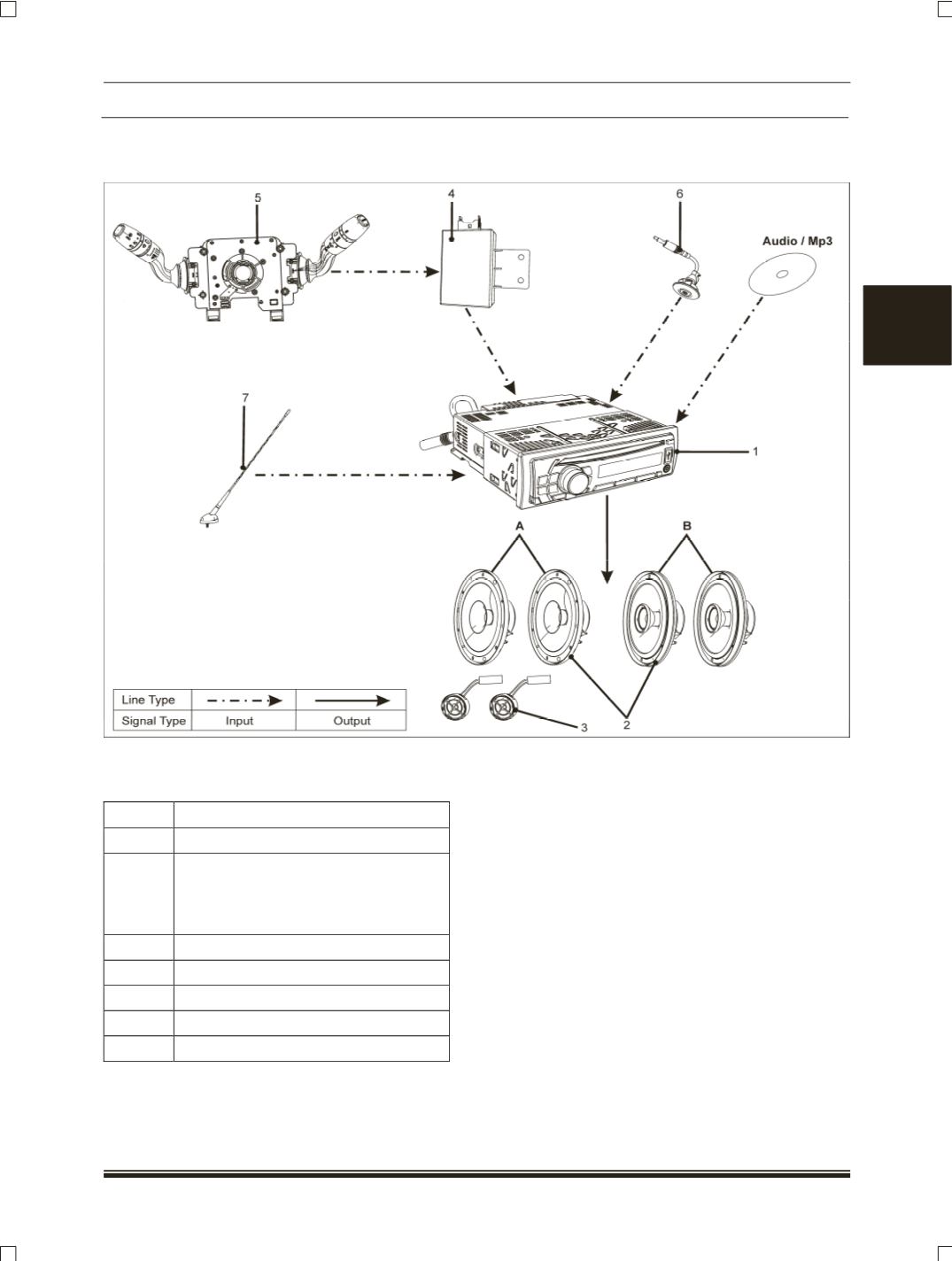

8.16.1 CONTROL SCHEMATICS:
DESCRIPTION:
Entertainment system consists of following components,
SR.NODESCRIPTION
1
1 DIN music system.
2
Speakers
A. Component speakers on front
doors,
B. Co-axial speakers on rear doors
3
Tweeters
4
Audio supplementary unit
5
Combi - Switch controls
6
Microphone
7
AM / FM Antenna
