ELECTRICAL

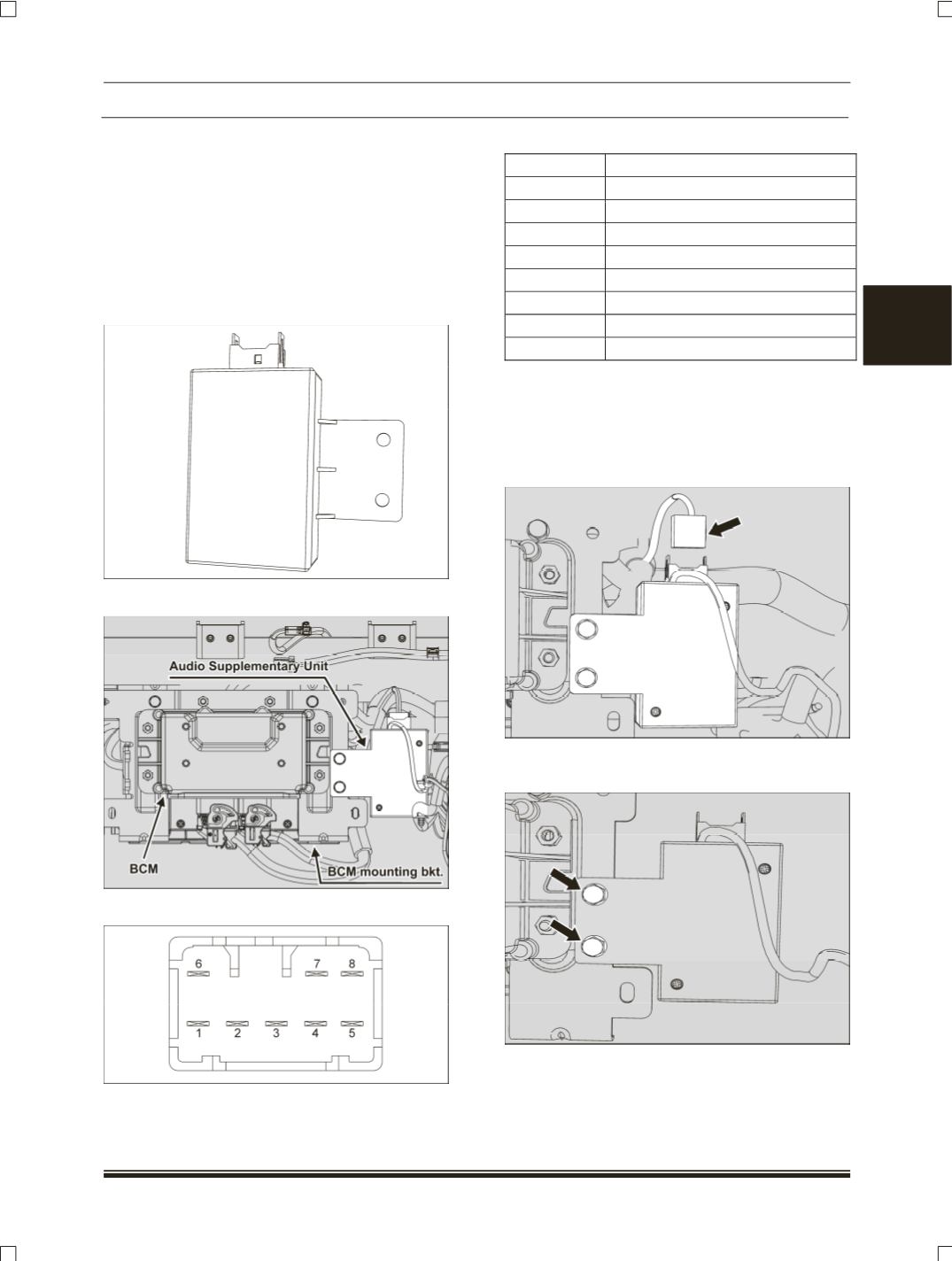

2. AUDIO SUPPLEMENTARY UNIT:
The Audio supplementary unit is used for
controlling music system from the Combi switch
controls.
SPECIFICATION:
Operating Voltage: 9 to 16 V
Operating Current: 50mA Max
Operating Temperature: -15°C to +60°C
LOCATION:
It is fitted on BCM mounting bracket.
CONNECTOR DETAILS:
PIN OUT DETAILS:
PIN NO
DESCRIPTION
1
Ground
2
Steering switch Input 1
3
NC
4
NC
5
+12 V DC
6
Steering switch Input 2
7
NC
8
NC
REMOVAL:
1.Remove glove box assembly (
Refer body
section).
2.Disconnect the electrical connection of audio
supplementary unit.
3.Remove two mounting screw of audio
supplementary unit and take it out.
