ELECTRICAL
139
ELECTRICAL
2. EXTERIOR LIGHTING:
A.FRONT HEAD LIGHTING:
The BCM will support two versions of Front Main Lighting, with and without Fog lamp. The BCM will
be configured at End of Line to the correct version.
The BCM will control the Position Lights, Dip Beam, Main beam, Front Fog lights and Rear Fog
lights.

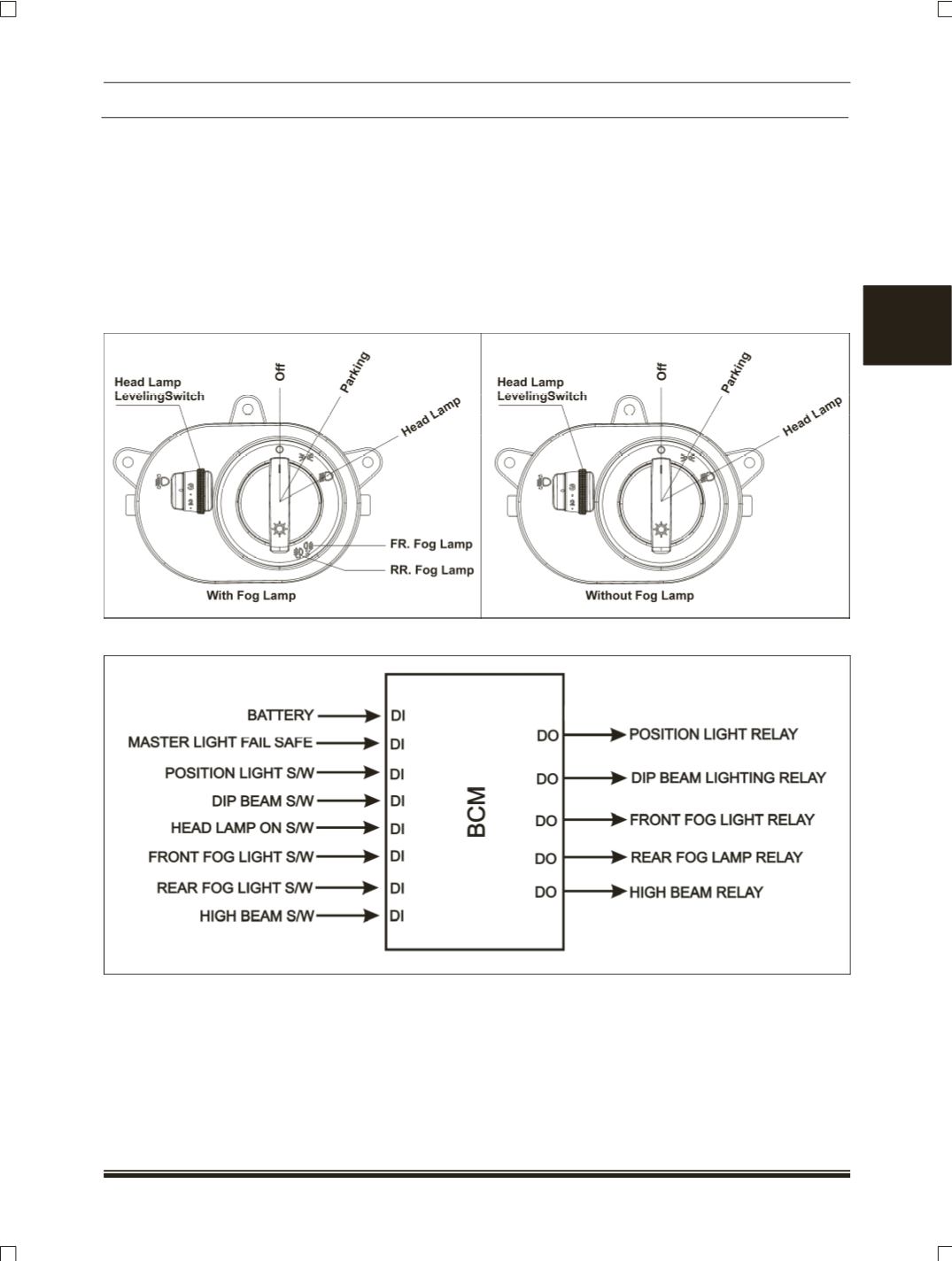

Two versions of Master Light switch will be fitted to the vehicle, with or without Fog lamp. The Master
Light Switch is directly connected to the BCM inputs. The Master light switch provides a mechanical interlock
to control the operation of front and rear fog lights.
INPUT/OUTPUT DIAGRAM:
