B. REAR WIPE AND WASH:

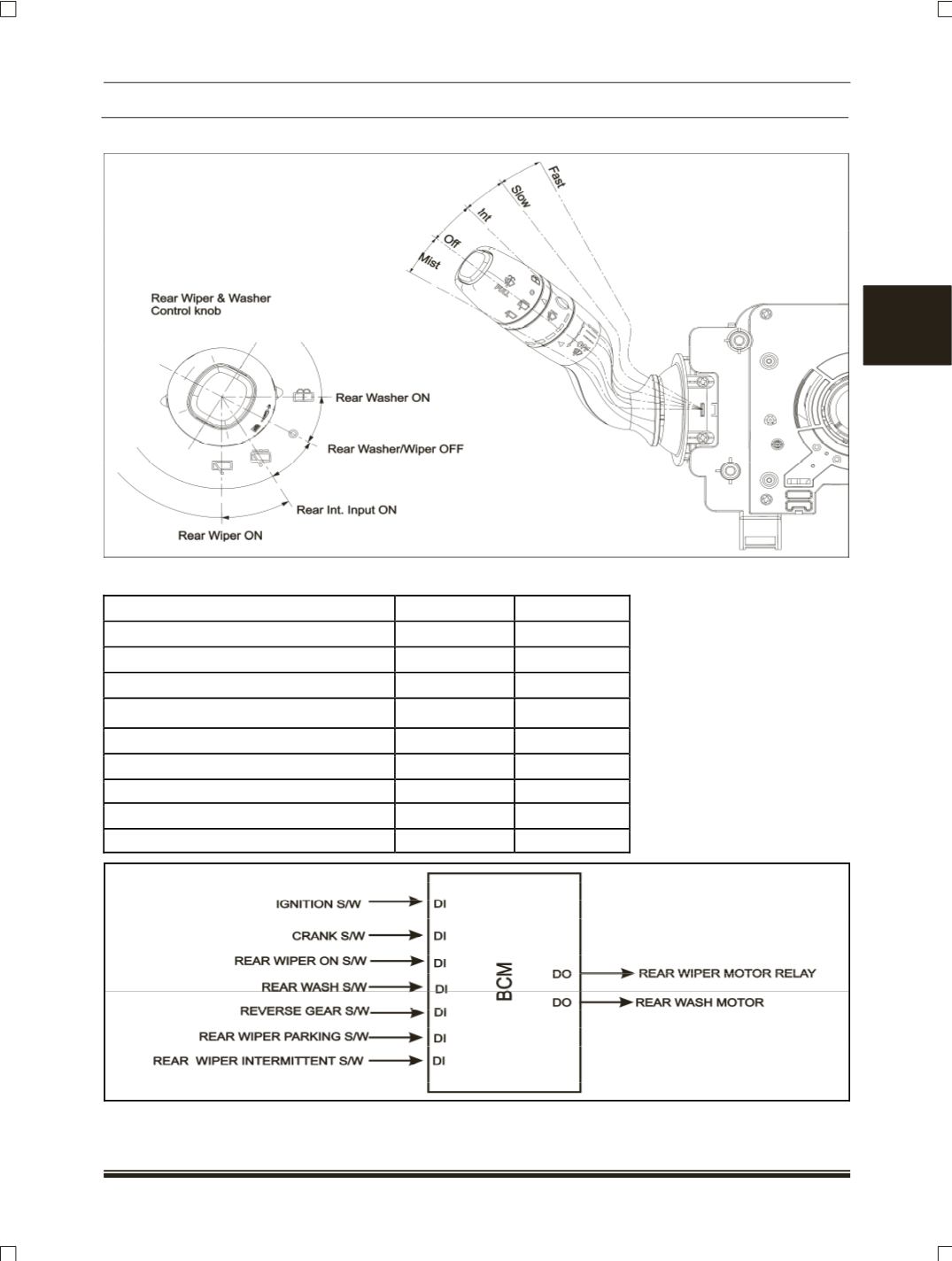

INPUT/OUTPUT DIAGRAM:
SIGNAL
LEVEL
TYPE
Ignition S/W
High
Input
Crank Switch
High
Input
Rear Wiper ON S/W
Low
Input
Rear Wiper Parking S/W
Low
Input
Rear Wash S/W
Low
Input
Reverse Gear S/W
High
Input
Rear Wiper Intermittent S/W
Low
Input
Rear Wash Motor
High
Output
Rear Wiper Motor Relay
Low
Output
