ELECTRICAL
145
ELECTRICAL
3. INTERIOR LIGHTING:
Interior lighting covers the following lighting functions:
Roof mounted interior lighting. Three lamps for each row of seating
(Two spot lamps and one main
lamp).
Ignition Barrel Illumination.
Battery Saver Function
Hazard warning parking LED illumination.
Door open LED (Inside the Instrument cluster)
Interior Lighting is active in all Vehicle Power States.

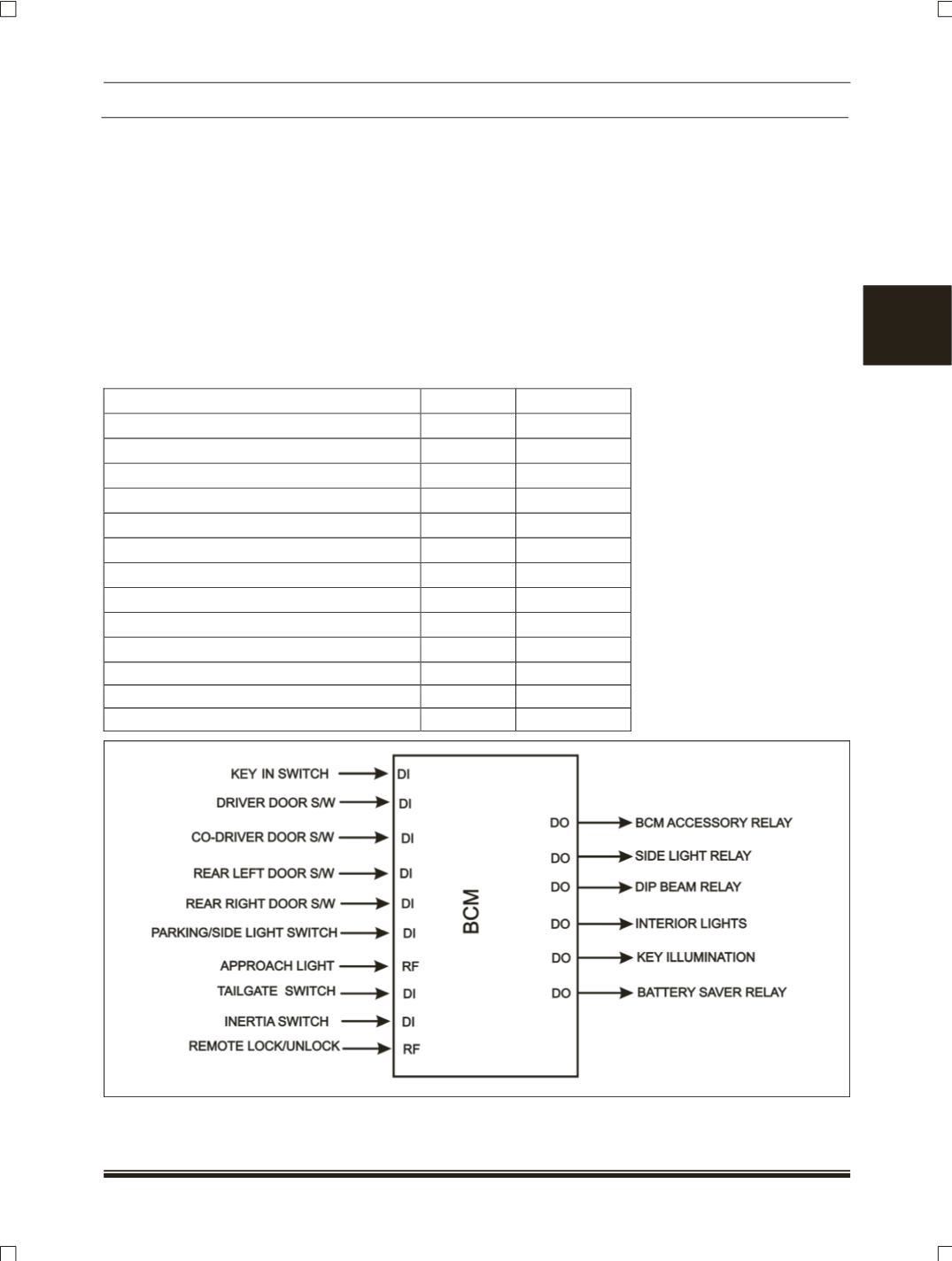

INPUT/OUTPUT DIAGRAM:
SIGNAL
LEVEL
TYPE
Key in switch
High
Input
Driver Door Switch
Low
Input
Co-Driver Door Switch
Low
Input
Rear Left Door Switch
Low
Input
Rear Right Door Switch
Low
Input
Parking/Side Light Switch
High
Input
Tail Gate Switch
low
Input
Approach light
RF
Input
Inertia switch
High
Input
Remote lock/unlock
RF
Input
Interior lamp
PWM
Output
Key illumination
PWM
Output
Battery saver relay
PWM
Output
