ELECTRICAL
92

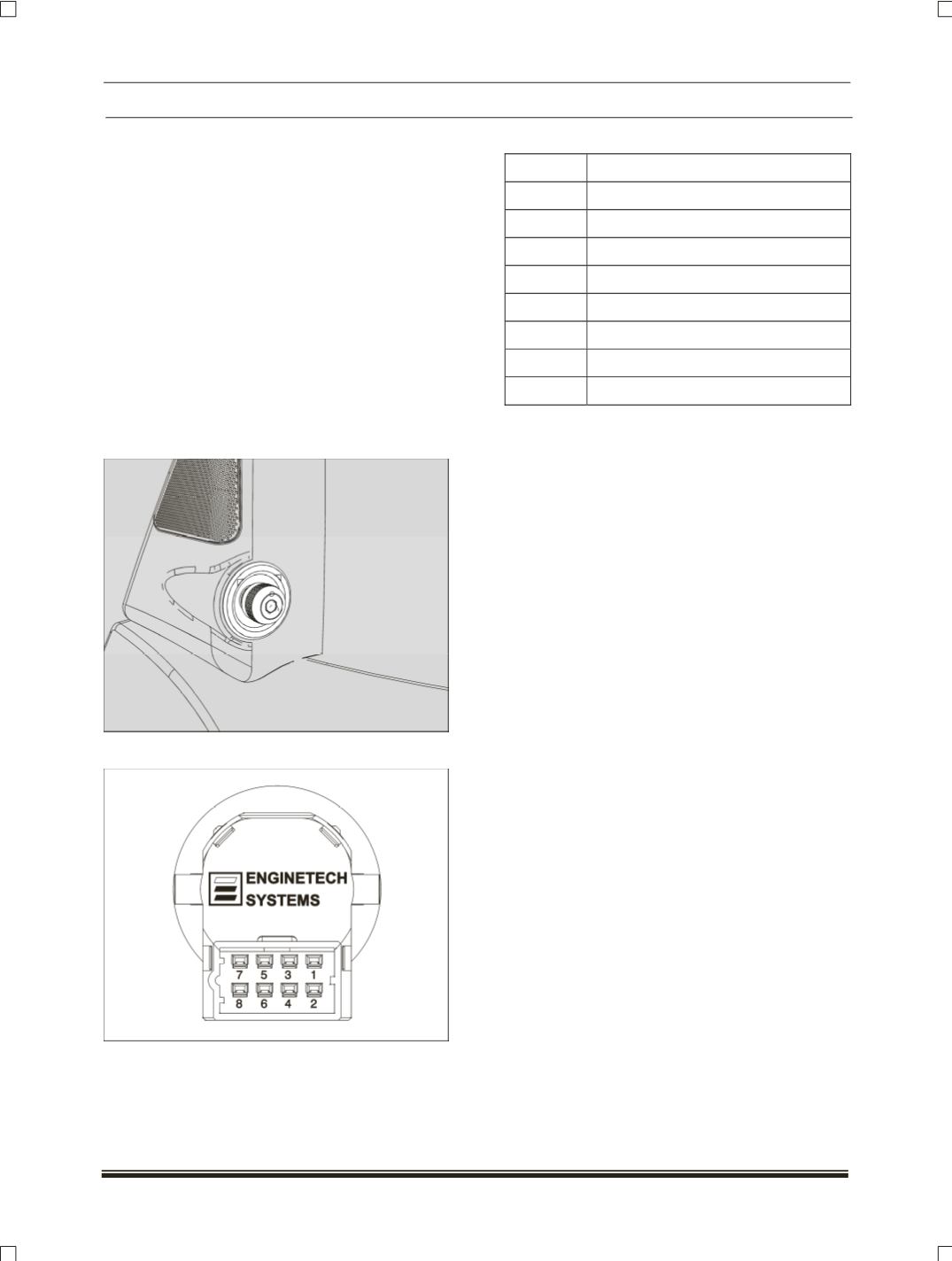

8.10.4 ORVM SWITCH
A.POWER MIRROR SWITCH
For adjusting the mirror, first select the RH
or LH side mirror using selector switch. Then push
the appropriate edge of adjustment switch to
move the mirror left, right, up & down.
B.MIRROR FOLD SWITCH:
Mirror fold switch which enables you to park
the vehicle in limited parking space. Press the
mirror folds switch downwards to fold up the both
outside mirrors simultaneously. To foldout press
the switch again.
LOCATION:
These are located on the LH & RH Cheater
assembly.
CONNECTOR DETAILS:
PINOUT DETAILS:
SR. NO.
DISCRIPTION
1
Vertical Left
2
Vertical Right
3
Common
4
+VE
5
Horizontal Right
6
-VE
7
Horizontal Left
8
Fold
