ELECTRICAL
81
ELECTRICAL

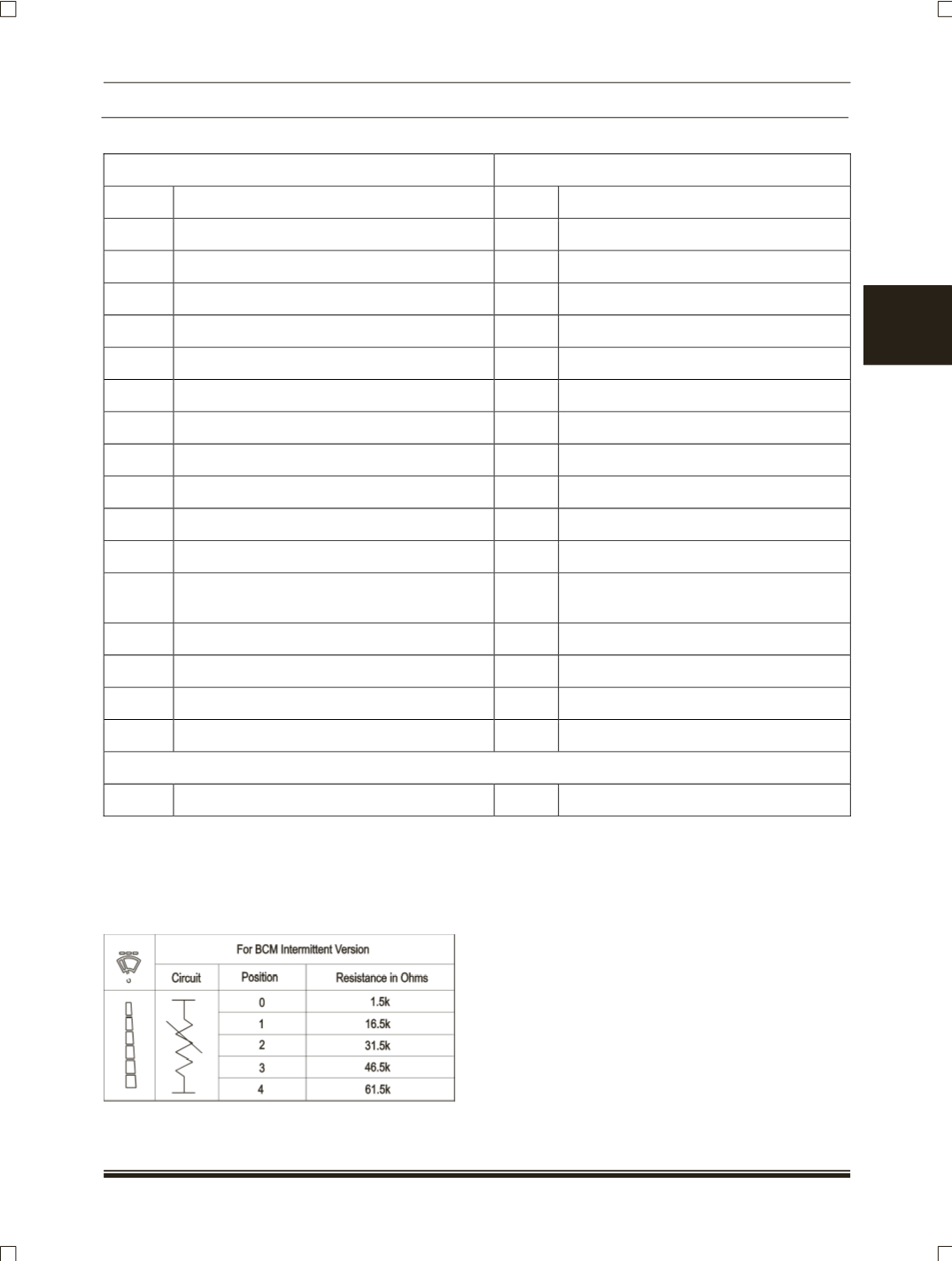

PINOUT DETAILS:
WIPER STALK CONNECTOR
LIGHT STALK CONNECTOR
PIN NO DESCRIPTION
PIN NO DESCRIPTION
B1
Blank
A1
MLS Head Lamp on I/P
B2
Wash I/P To BCM Pin X1,E2
A2
Turn Feed Signal (GND)
B3
Blank
A3
RH Turn (BCM)
B4
Connected To Front Wiper Slow/Fast Relay
A4
LH Turn (BCM)
B5
In BCM Pin Connected to X1, E2
A5
I/P To Flash Relay For High Beam
B6
Connected To Front Wiper On/Off Relay Coil
A6
Blank
B7
In BCM Pin Connected to GND
A7
Battery +ve
B8
GND
A8
Blank
B9
Blank
A9
Blank
B10
Blank
A10 Blank
B11
In Analog I/P To BCM Pin No. X1,G4
A11 Blank
B12
IGN. Supply Required In Case Of BCM
Version
A12 Blank
B13
Earth
A13 Blank
B14
Rear Wiper On SW To BCM Pin No. X1,F1
A14 Music Control Pin B
B15
Rear Wiper On SW To BCM Pin No. X1,F3
A15 Music Control Pin A
B16
Rear Int Wiper o BCM Pin No. X2,E2
A16 Blank
HORN CONNECTOR
C1
To steering wheel switch horn
(+ve
)
C2
To steering wheel switch horn (-
ve
)
CONNECTION DETAILS:
WIPER CIRCUIT:
RESISTANCE VALUES:
1. For Intermittent BCM version
