ELECTRICAL
76

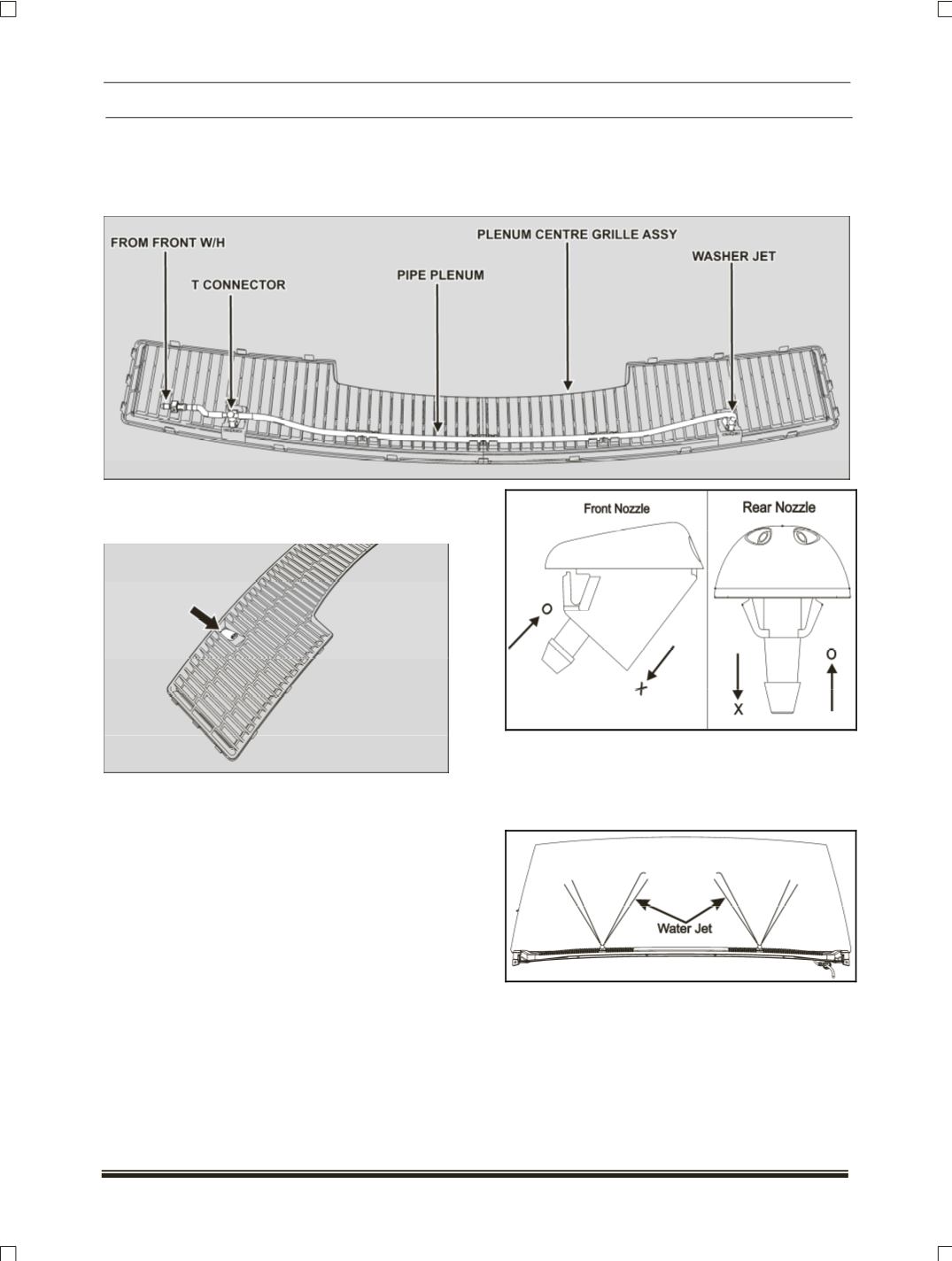

8.9.4.3 FRONT WAHSER NOZZLE
LOCATION:
There are two nozzles at front fitted
on centre plenum assembly. Nozzles are snap
fitted.
REMOVAL
1.Fry out the front nozzle from its snap fitting.
2. Pull out the nozzle assemble from the cutout
and disconnect the washer hose.
INSPECTION:
Blow air in the injection direction and
make sure that air flows only one way. Make sure
that the reverse direction is not possible.
Check
periodically nozzle for air trapping / dust entry.
NOZZLE SETTING:
1.See the water jet spot, if it is in the middle zone
of the windscreen as shown in below fig then
OK.
2. If the water jet is not at the middle of
windscreen screen, then adjust the nozzle tip
angle manually such that water jet spot should
be at the middle of windscreen glass.
3. All four jet should be on same level.
