ELECTRICAL

INSPECTION:

OPERATION

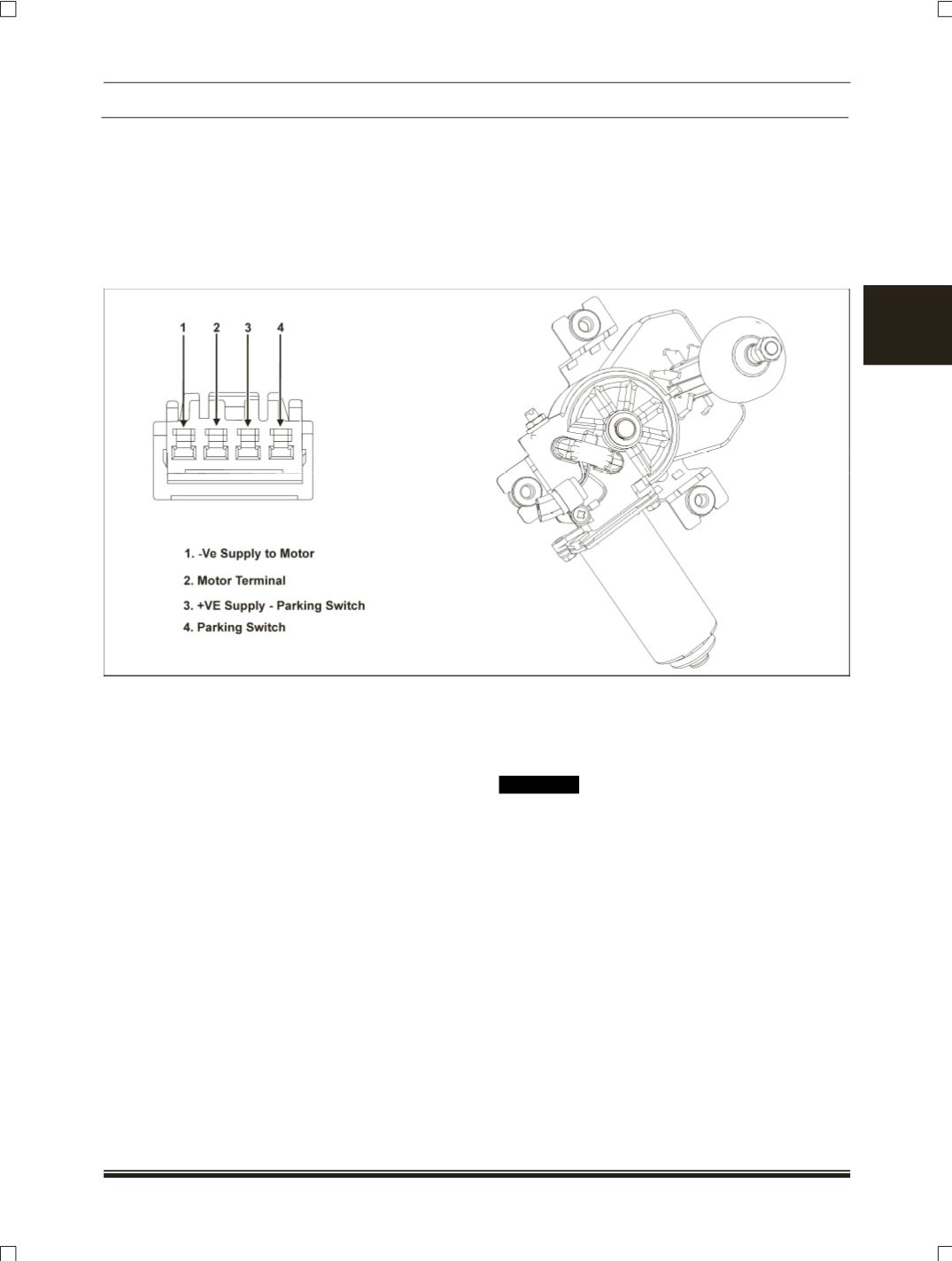

Connect the positive (+) lead from the battery to

terminal 2 and the negative (−) lead from the

battery to terminal 1, check that the motor

operates.

If operation is not as specified, replace the motor.

REFITMENT:

1.First insert steel washer and next insert rubber

washer

(inner

) on wiper motor shaft.

2.Locate the wiper motor assembly in the tail gate

and fit three mounting bolts and tight with

specified torque.

Tightening torque for bolts – 1 Kgm

3.Insert rubber washer first and next insert cup

washer and tight the mounting nut.

Tightening torque for bolts – 1 Kgm

4.Insert the cover over the mounting nut and put

the arm and blade assembly on wiper motor

shaft in unlock condition.

5.Place arm and blade assembly on parking

position so as to get lock it with wiper motor

shaft.

6. Fit one mounting nut and tight with specified

torque.

Tightening torque for bolts – 1 Kgm

7.Connect the electrical connection to the wiper

motor.

8.Fit the rear tail gate lower trim. (

For procedure

refer body section

)

! CAUTION

While fitment of rear wiper motor first insert steel

washer and insert rubber washer (inner) on wiper

motor shaft and locate the wiper motor on its

location and fit three mounting bolts. After this

insert the rubber washer (outer) then insert cup

washer on the wiper motor shaft and fit one

mounting nut.
