BRAKES
39
BRAKES

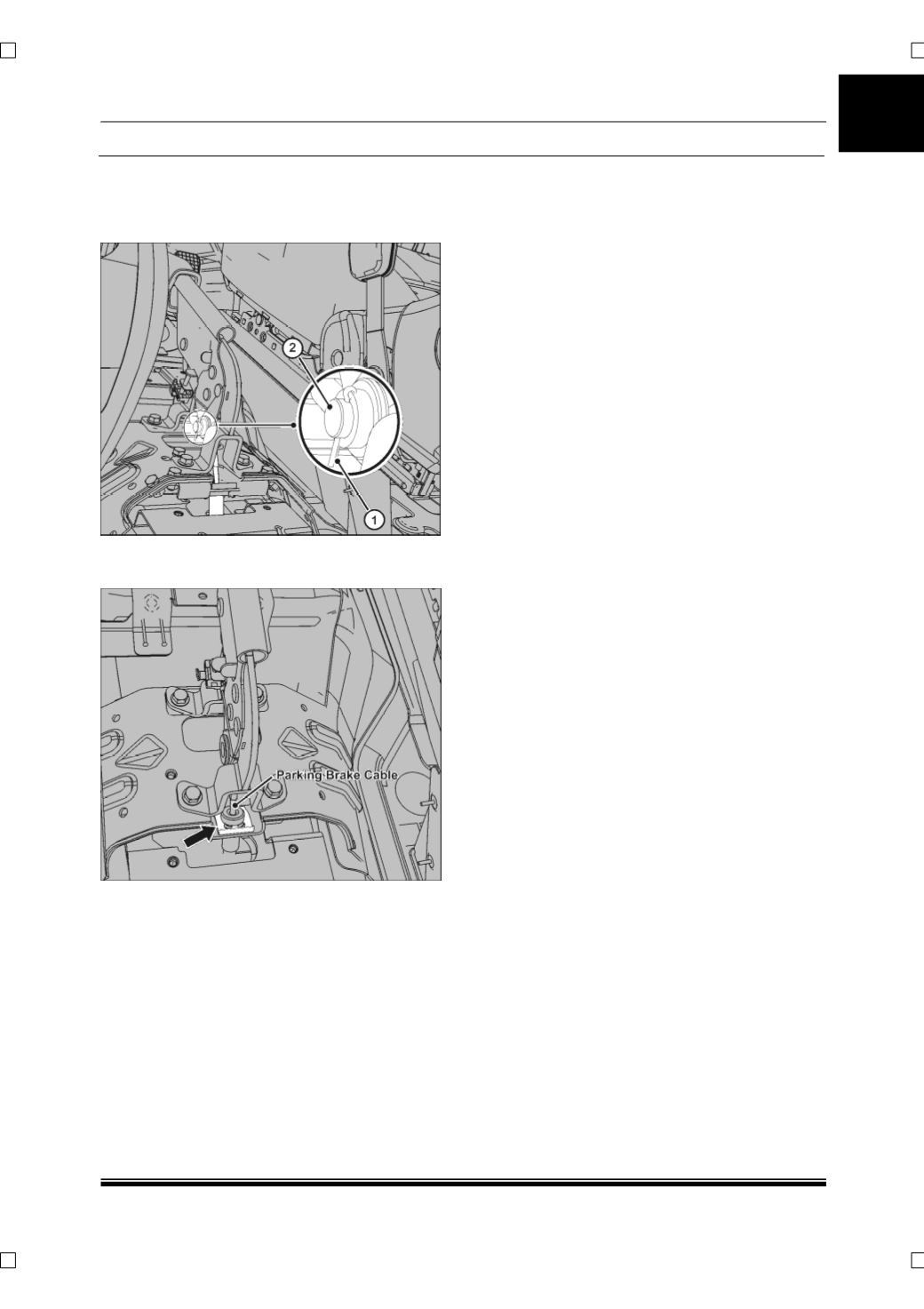

8. Pull out the split pin
(1)
and remove the clevis
pin
(2)
and keep the spacer and bright washer
properly and separate the front brake cable
from the hand brake.
9. Pull out the brake holder clip and remove the
front parking brake cable.
INSPECTION
•
Check front and rear cable for any damage if
so, replace the cable.
•
Check other parts like plastic bushes; links etc.
for damage and replace defective parts.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
•
While assembly, ensure that there are no
twists in the cables.
•
Check for the rubber grommets for any
damage and if needed replace with new one.
•
After fitment adjust the parking brake. (For
procedure refer parking brake adjustment in
regular maintenance section)
