BRAKES

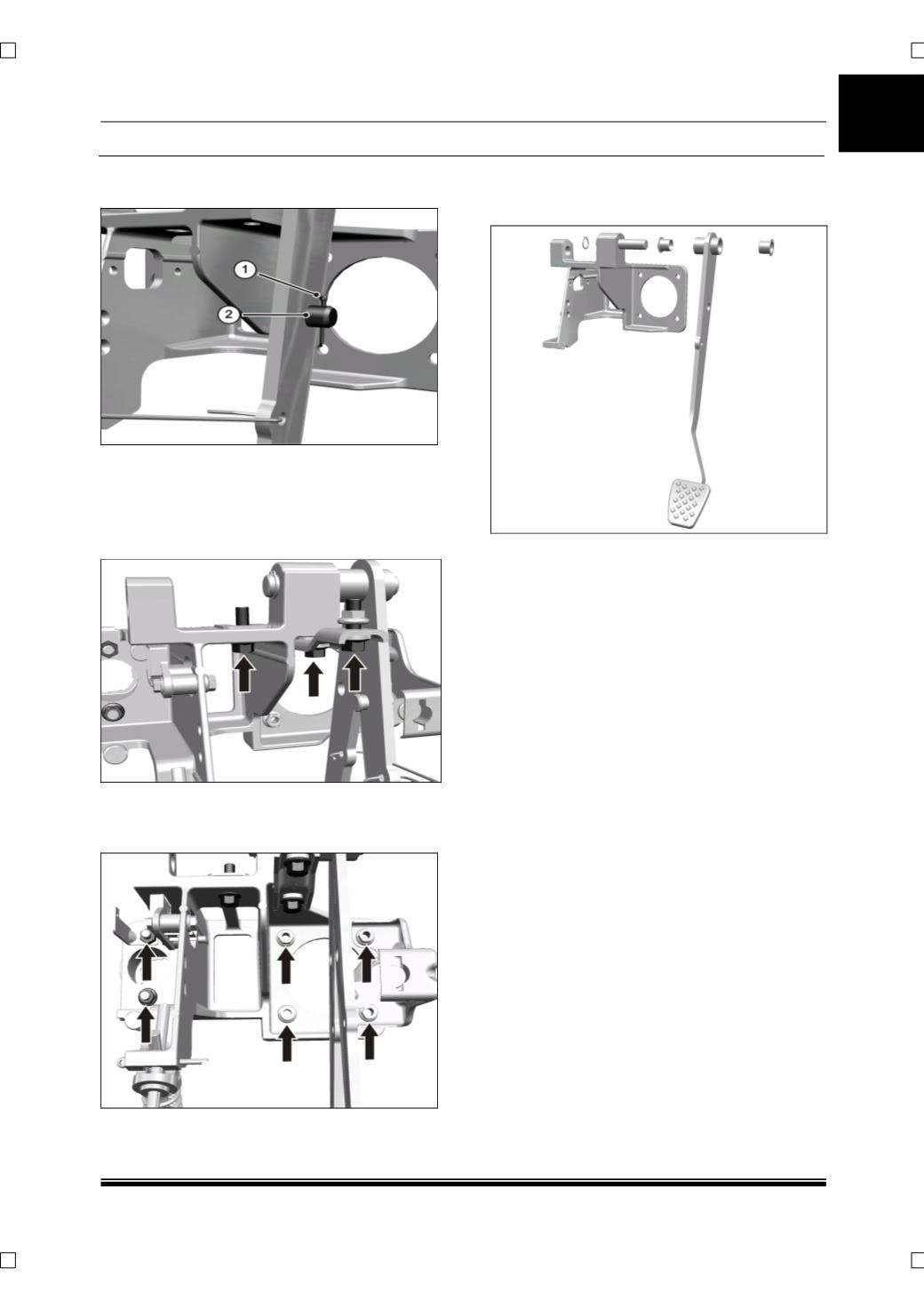

8. Remove the split pin
(1)
and take out the pin
(2)
and free the brake pedal from the booster.
9. Remove the booster assembly.
(Refer on
vehicle procedure of booster removal in this
section).
10. Remove 'Z' bracket and CCB Support bracket
bolt.
11. Loosen and remove the mounting bolts of
assembly control unit and take out the
assembly from vehicle.
12. Remove the external circlip and slide the
brake pedal lever with its bushes to remove
the brake pedal from control bracket pin.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
•
At the time of fitment apply thin coat of multi
purpose grease on clevis pin.
•
Align the axis of brake pedal hole with the
Booster fork hole and after inserting the clevis
pin through Booster fork and brake pedal
check the free rotation of clevis pin.
