5. Remove the caliper assembly along with the
carrier from the brake disc.
NOTE
If only the caliper housing has to be removed.
•
Remove the caliper pads. (Refer caliper pad
replacement in regular maintenance)
•
Remove the upper sliding bolt and take out the
caliper housing. (Lower sliding bolt is already
taken out while removing the pads.)
FITMENT
For fitment follow the reverse procedure of
removal.
B. BRAKE DISC REMOVAL
FRONT BRAKE DISC REMOVAL
For front brake disc removal refer Front Axle
section.
REAR BRAKE DISC REMOVAL
1. Release the hand brake.
2. Check from rear back plate inspecting window
if the brake shoe has completely retracted if
not, retract the same using screw driver.
3. Position the vehicle on two post lift and remove
the wheel.
4. Remove caliper assembly.
(For procedure
refer caliper removal process in this section.)

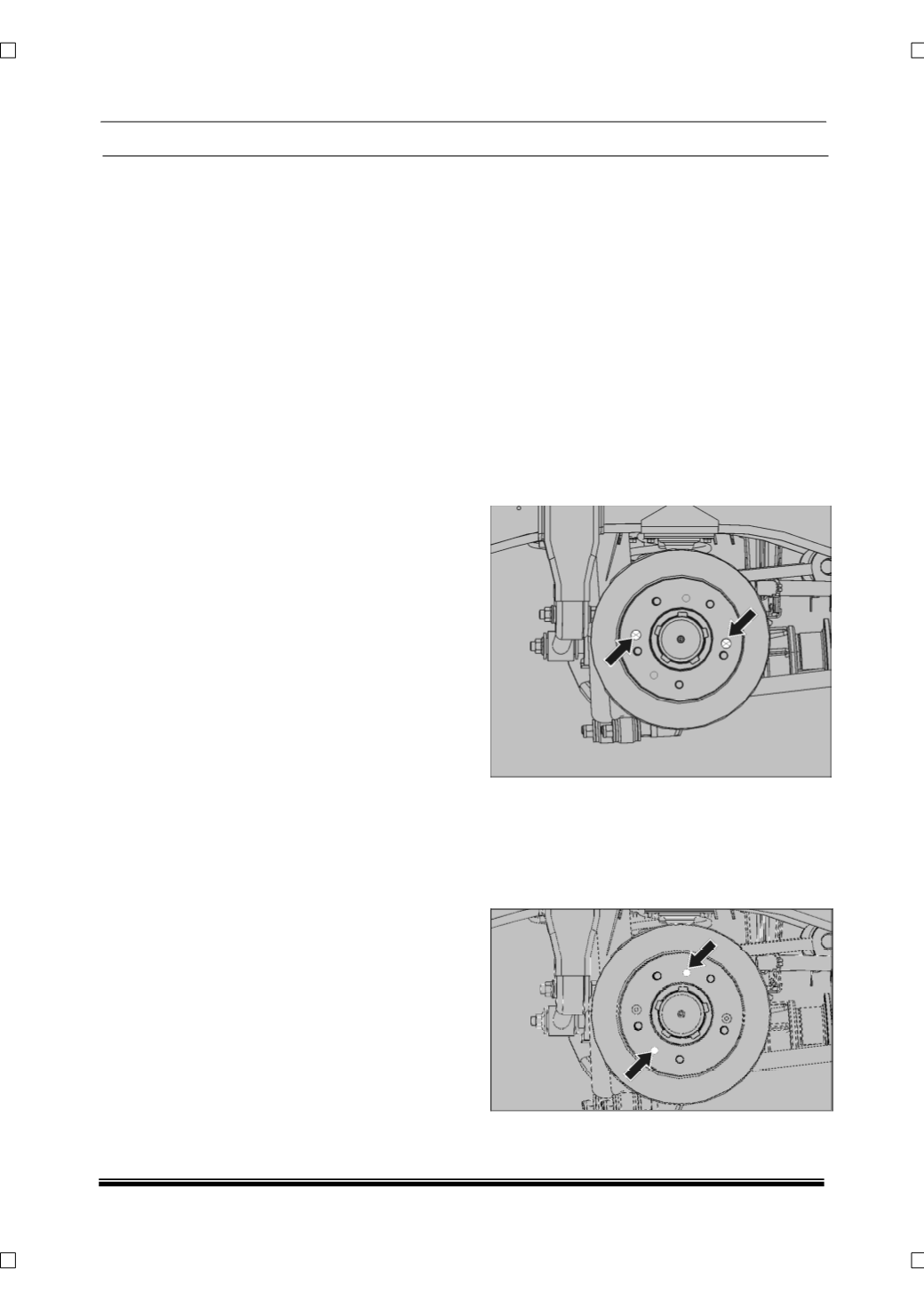

5. Loosen brake disc screws
(2 Nos.)
securing
brake disc to the hub.
6. Pull off the brake disc.
NOTE
If the disc does not come out easily, insert two
screws in the holes provided on the disc. Tighten
both the screws simultaneously to pull out the
disc.
