BRAKES
38

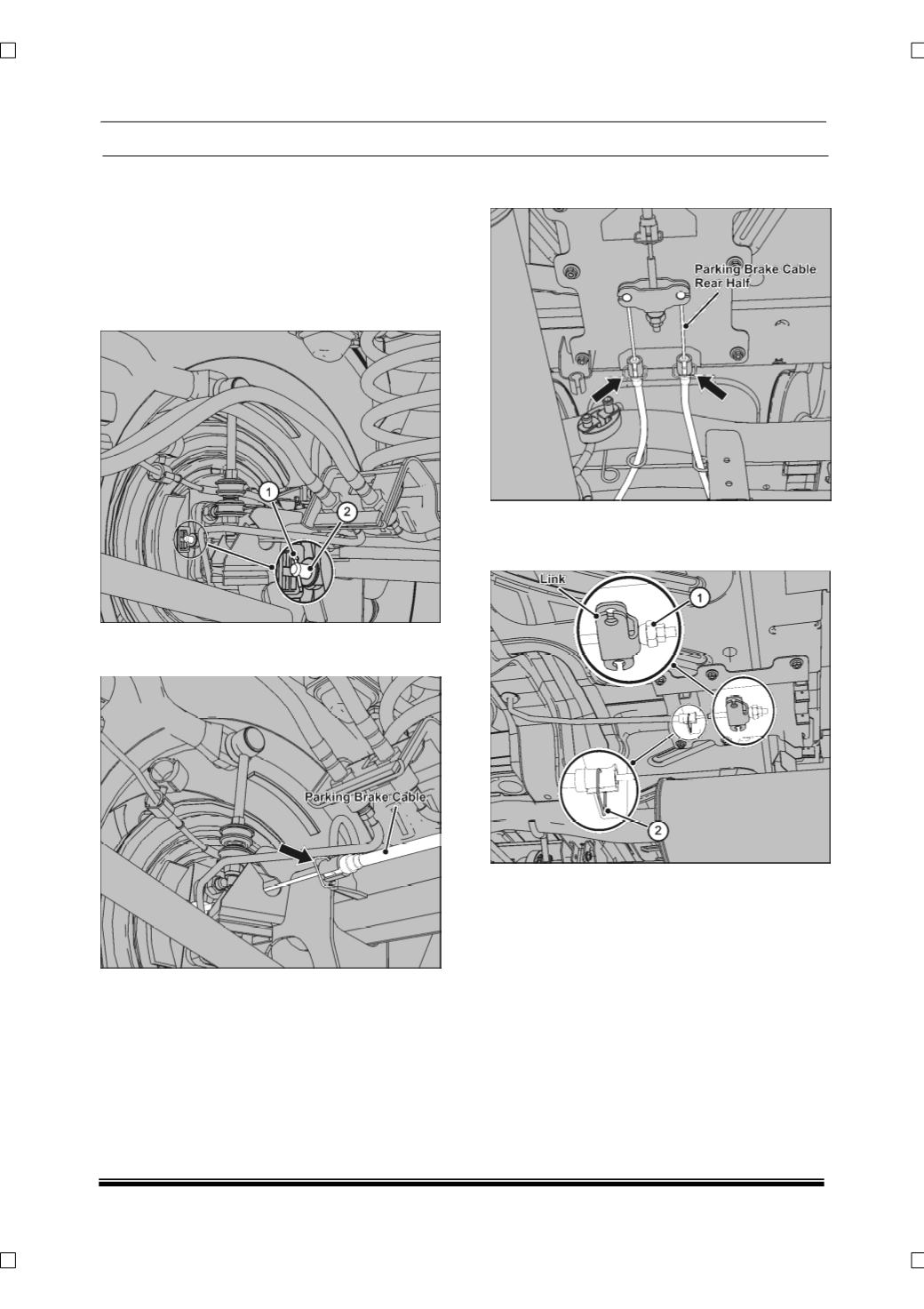

PARKING BRAKE CABLE
REMOVAL
1. Place the vehicle on two post lift.
2. Ensure parking brakes in released condition.
3. Take out the split pin
(1)
and remove the clevis
pin
(2)
from the rear wheel end. Follow the
same procedure for other side also.
4. Remove the clip and separate the parking
brakes cable from the rear axle.
5. Take out clips and disconnect the parking
brake cable rear half from the connector link.
6. Loosen and remove the lock nut, spherical nut
(1) and remove the clip (2) and free the front
half of the parking cable from the link.
7. To disconnect the front cable from the hand
brake side remove the floor console.
(For
procedure refer Floor console removal
procedure in Body section.)
