GEAR BOX
59

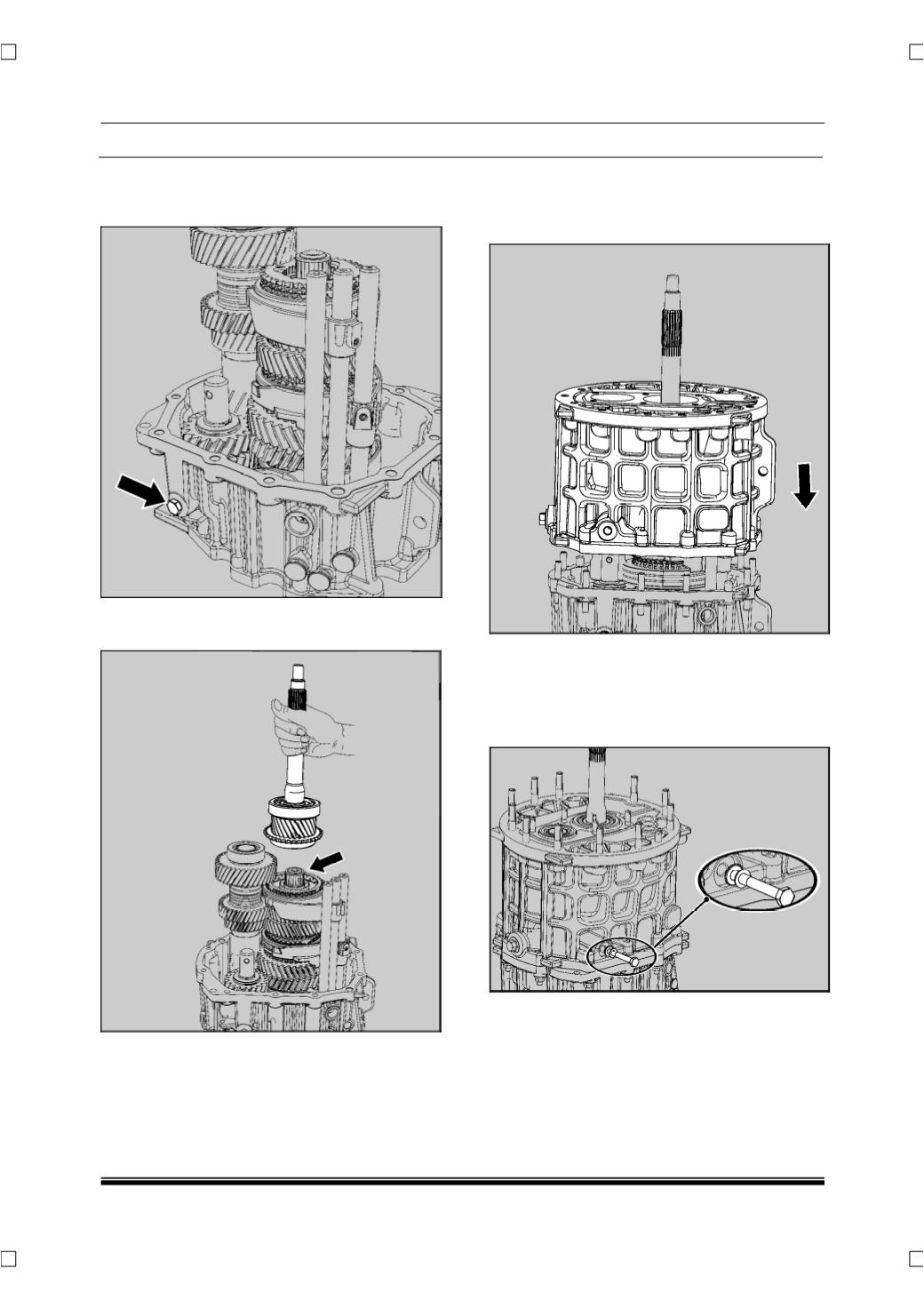

9. Place the washer and tighten the mounting bolt
which is for locking the reverse idler shaft on the
rear half.
10.Place roller thrust bearing and then places the
drive shaft on to the main shaft assembly.
11.Apply shellac and put gasket over housing part-
ing surface. Align the dowel pins and place gear
box housing- front half over the rear half and tap
gently with the mallet.
12.Put the hexagonal flanged nuts and tighten all
nuts evenly.
13.Tighten the bolt along with the spring and bright
washer which is for the reverse idler shaft on the
front housing.
14.Remove the gear box assembly from the mount-
ing stand.
15.Before assembly of rear cover the shim selection
has to be done (for counter and main shaft) as
per the procedure given below.
