GEAR BOX
64
NOTE
•
Stake the collar in undercut with suitable chisel
to secure the nut.
•
See the condition of collar nut if required replace
the same with new one.
•
For securing the main shaft nut; collar to be
staked in he slot.

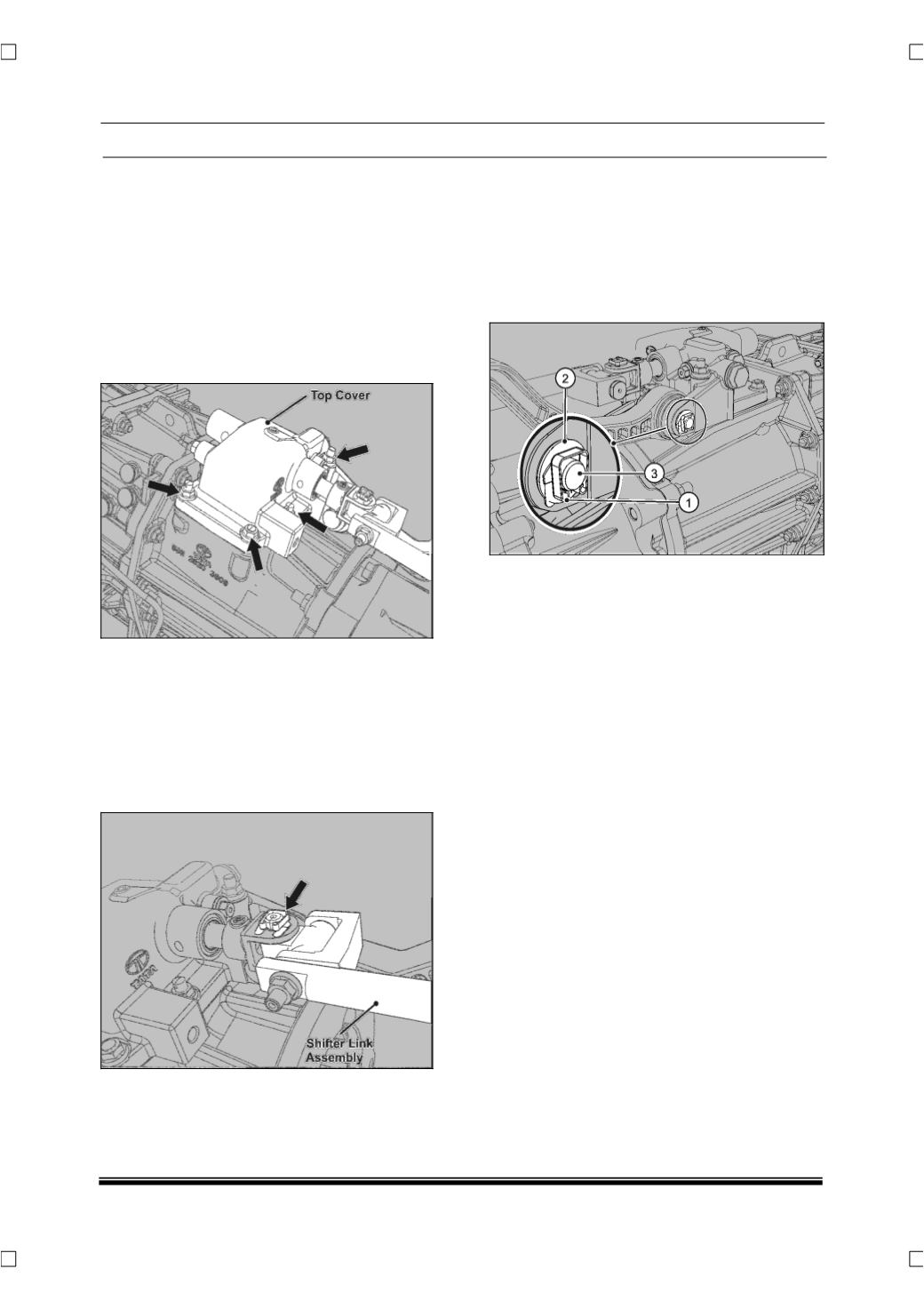

25.Apply adhesive gasket eliminator over top cover
face and fit it over the rear cover and put the
hexagonal flanged nuts and tighten the same.
NOTE
New gasket should be fitted in between the mating
surface of top cover and rear cover at the time of
assembly.
26.Align the shifter linkage assembly properly with
the shifting yoke and then slide the cylindrical pin
and press the retainer clip to lock the shifter link
along with the extension arm on to the gear box.
NOTE
•
Apply grease on the spherical seat of shifter
shaft end.
•
Check the condition of bush in the shifting yoke.
27.Slide the pin (1), place the spring washer (2) and
press the retainer clip (3) to lock the extension
arm on to the gear box.
28.Fit the magnetic drain plug, breather assembly
and reverse indicator switch.
29.Align the clutch housing. Place the spring and
bright washer and tighten the clutch housing
mounting bolts.
30.Fit the clutch release bearing and clutch release
fork. (For procedure refer clutch section.)
