GEAR BOX
63
•

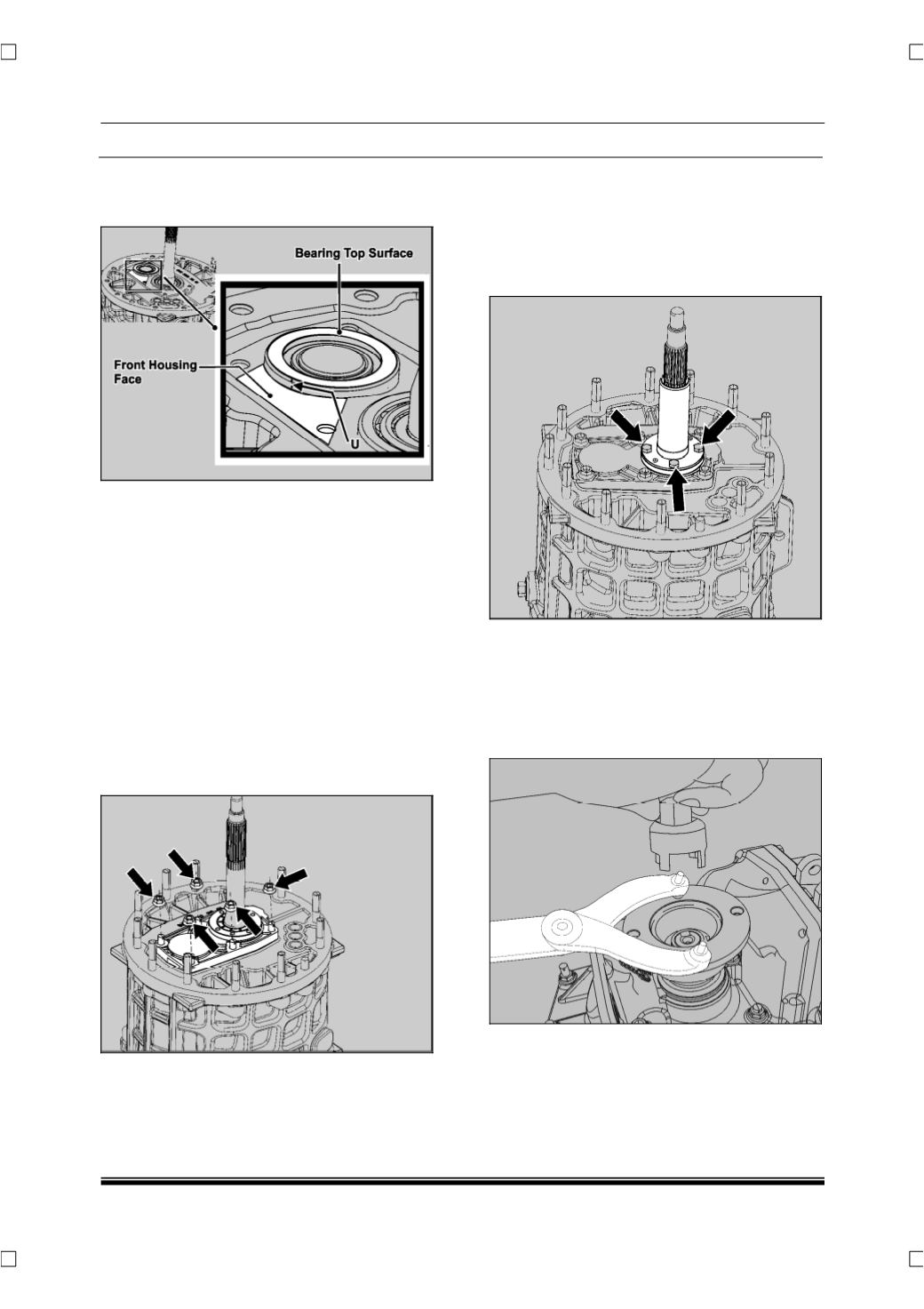

Measure the counter shaft bearing projection
over housing face. Consider this as “U”. Let this
projection be 4.50 mm.
•
Calculate the difference between “T” & “U”. Let it
be “V”.
V = T – U
V = 4.75 – 4.50 mm
V = 0.25 mm
•
Thickness of shim required to maintain the pre-
load of 0.03 to 0.06mm
= V + 0.05
= 0.25 + 0.05 mm
= 0.30 mm
22.Apply adhesive gasket eliminator over front cov-
er face and fit it over the housing and put the
hexagonal flanged nuts and tighten the same.
NOTE
New gasket should be fitted in between the mating
surface of front cover and front half housing at the
time of assembly.
23.Place the bearing tube and tighten the mounting
screws. (4 Nos.)
24.After shim selection is done. Press the end yoke
over the main shaft rear end. Lock the flange as-
sembly with the special tool (Part No. 2894 5890
35 17) hold the collared hexagonal nut with the
sprocket (Part No. 2698 5890 14 01) and tighten
the same to the torque of 25-28 Kg-m.
(For 4X2
Version only)
