GEAR BOX
54
ASSEMBLY

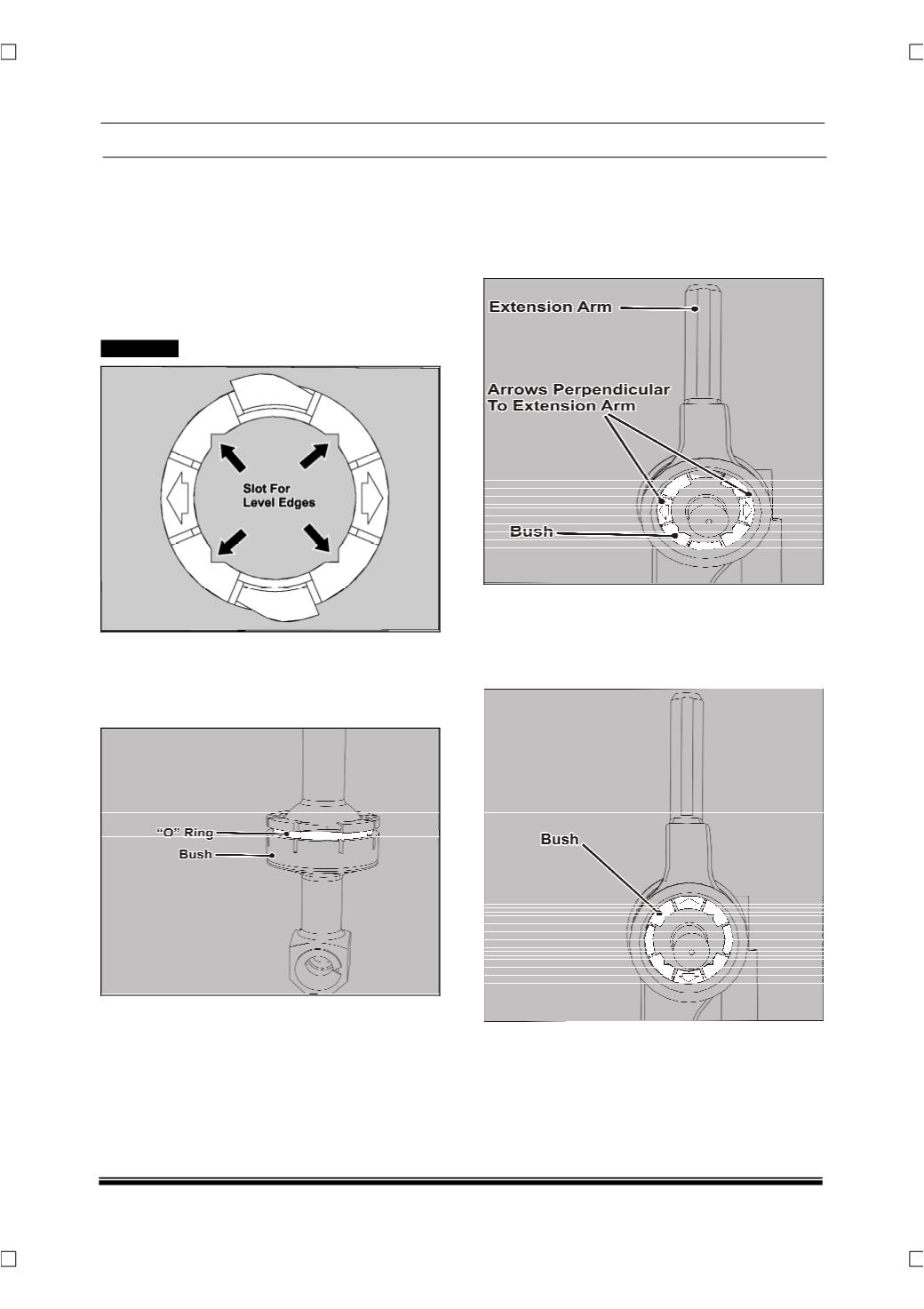

1. Heat the plastic bush by immersing it in the hot
oil.
2. Apply a light coat of grease 3% MOS 320 over
gear shifter lever ball seat.
3. Press the bush over the shifter lever ball and al-
low the plastic bush to cool down such that it is
seated properly on the lever ball.
! CAUTION
Slide the lever eye end edges through the slots pro-
vided on the plastic bush. Otherwise the edges can
damage the plastic bush.
4. Slide the “O” ring on the groove of plastic bush.
5. Press the gear shifter lever along with the bush
inside the bore of extension arm.
NOTE
While pressing care should be taken that the arrow
marks on the bush should be perpendicular to the
extension arm.
6. Lock the bush on the extension arm by turning
the lever and bush assembly in the clockwise di-
rection by 90º such that the arrows on the bush
should be inline with the extension arm as shown
below.
