GEAR BOX
53
DISMANTLING

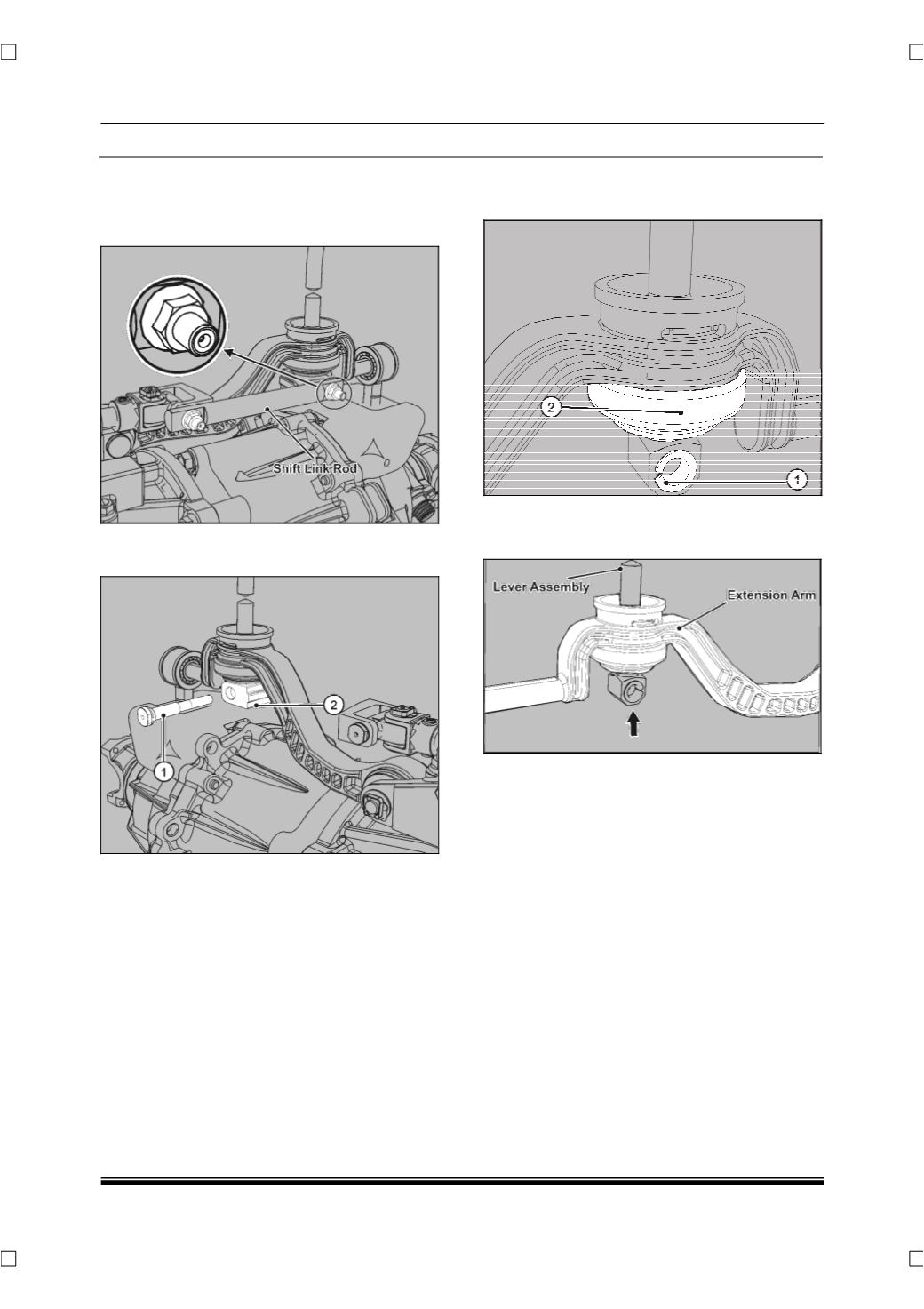

1. Loosen and remove 2 nuts, take out the shift link
rod from the ‘C’ clamp.
2. Take out the pin (1) from bottom side of the gear
shifter lever and take out the ‘C’ clamp (2).
3. Remove the bushes (1) (2 Nos.) from the shifter
lever and pull out the rubber bellow (2).
4. Support the extension arm and pull the shifter
laver assembly upward from extension arm.
NOTE
While doing this the bush will get damaged, remove
the bush from the lever. Always use new bush and
“O’ ring at the time of assembly.
INSPECTION
1. Check condition of bushes if required replace the
same with new bushes at the time of assembly.
2. Check the rubber bellow.
3. Check the extension arm for any crack or dam-
age.
