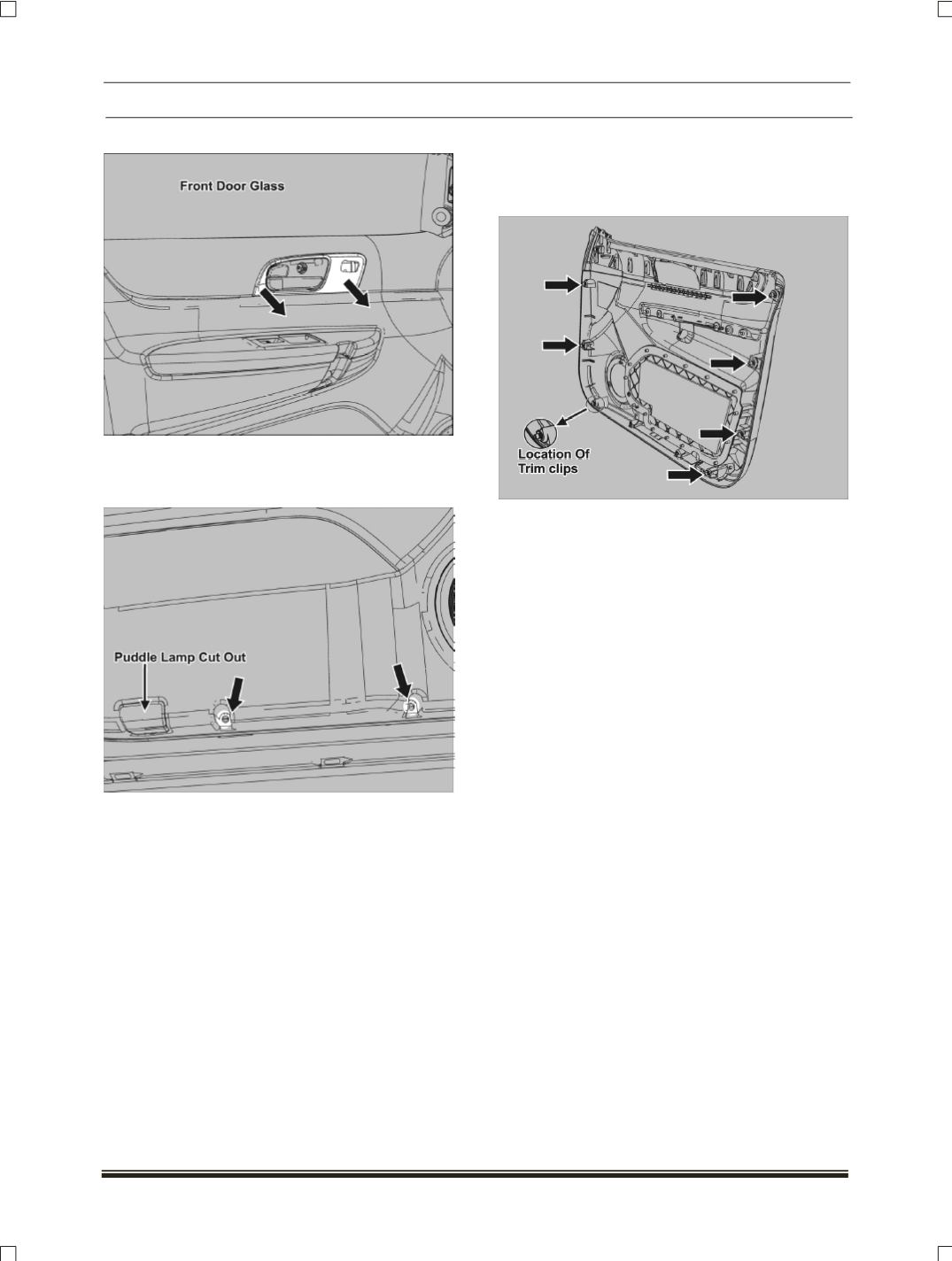

7. Pry out the bezel of inner door handle
8. Loosen and remove the mounting bolts
(2 Nos)
which are located at bottom side of door trim
near puddle lamp cut out.
9. Pull out the door trim carefully so as to free it
from door shell and disconnect the electrical
connections.
NOTE
While lifting door trim, care should be taken such
that tree clips don’t get damage. Below image
gives the location of tree clips on door trim.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
Before assembly check for;
Condition of all trim clips and if found damaged
replace with new one.
Ensure that all electrical connections are
connected and the puddle lamp connector is
passed through the cut out.
After fitment of door trim fit the puddle lamp
