BODY
36

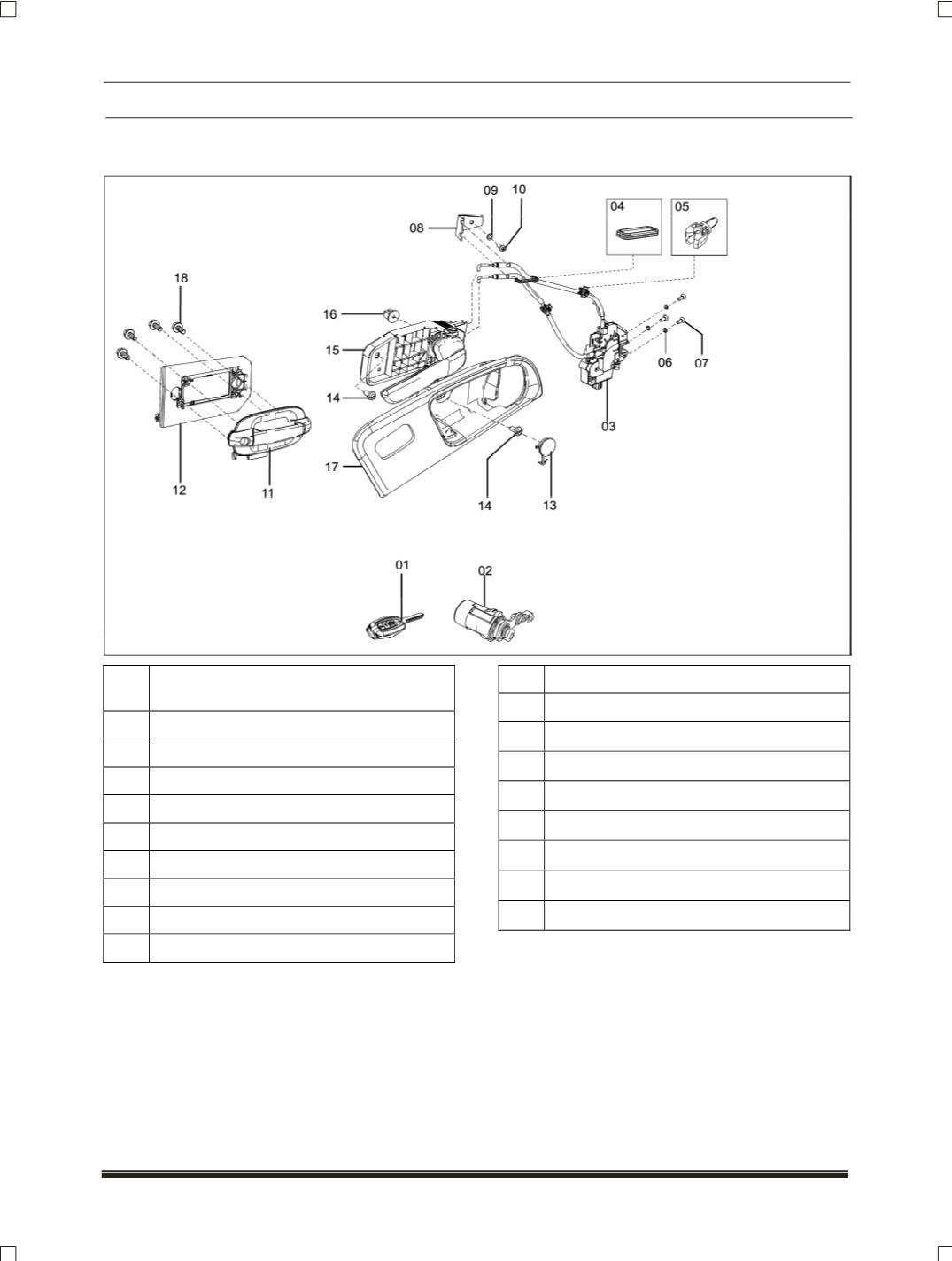

9.2.12 DOOR LOCK HANDLE AND DOOR LATCH
CONSTRUCTIONAL DETAILS
SR.
NO DESCRIPTION
01 Transponder and remote function key
02 Assembly front door lock barrel
03 Assembly latch front door
04 Grommet
05 clamp
06 M-T lock washer C6.4
07 Screw M6 x 16-4.8-H
08 Bracket cable support front door
09 Bright washer 5.3
10 Cross pan hard screw M4X12
11 Bezels assembly front
12 Back plate assemblies front
13 Screw cap
14 Tapping screw C-St4.8X13
15 Assembly handle interior front door inner
16 Screw grommet M4
17 Assembly door release handle
18 Hexagonal flange screw M6X14
