BODY
28

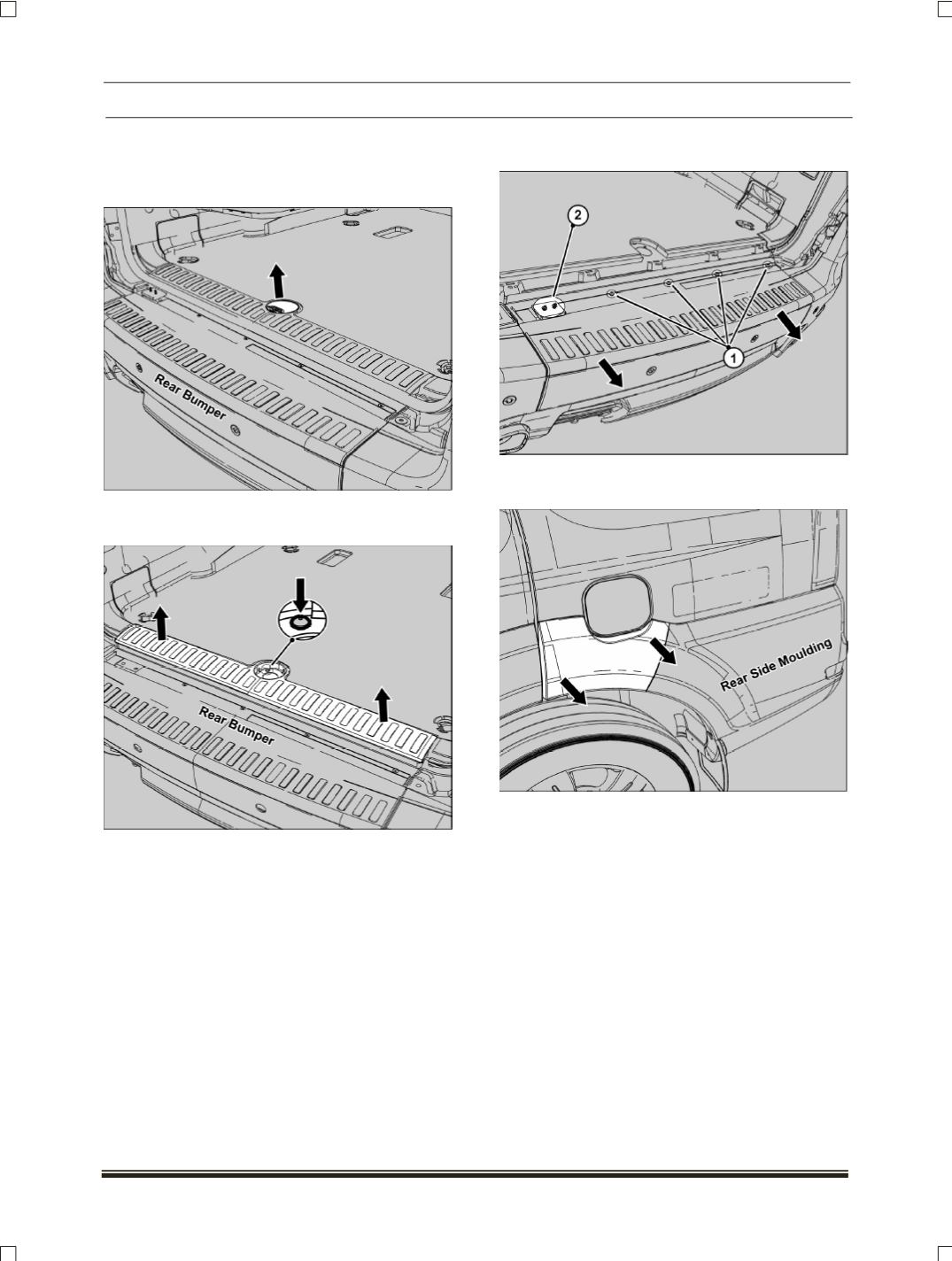

REMOVAL
1. Open the tail gate.
2. Remove luggage scuff plate cap
3. Loosen and remove one mounting screw and
pull out the scuff plate.
4. Remove tail gate rubber beading.
5. Loosen and remove four mounting screws
(1)
and two nut (2)and remove rear bumper cover.
6. Pull out the rear quarter filler molding from both
sides of vehicle.
7. Remove mud flap from both sides.
