ENGINE2.2LDICOR

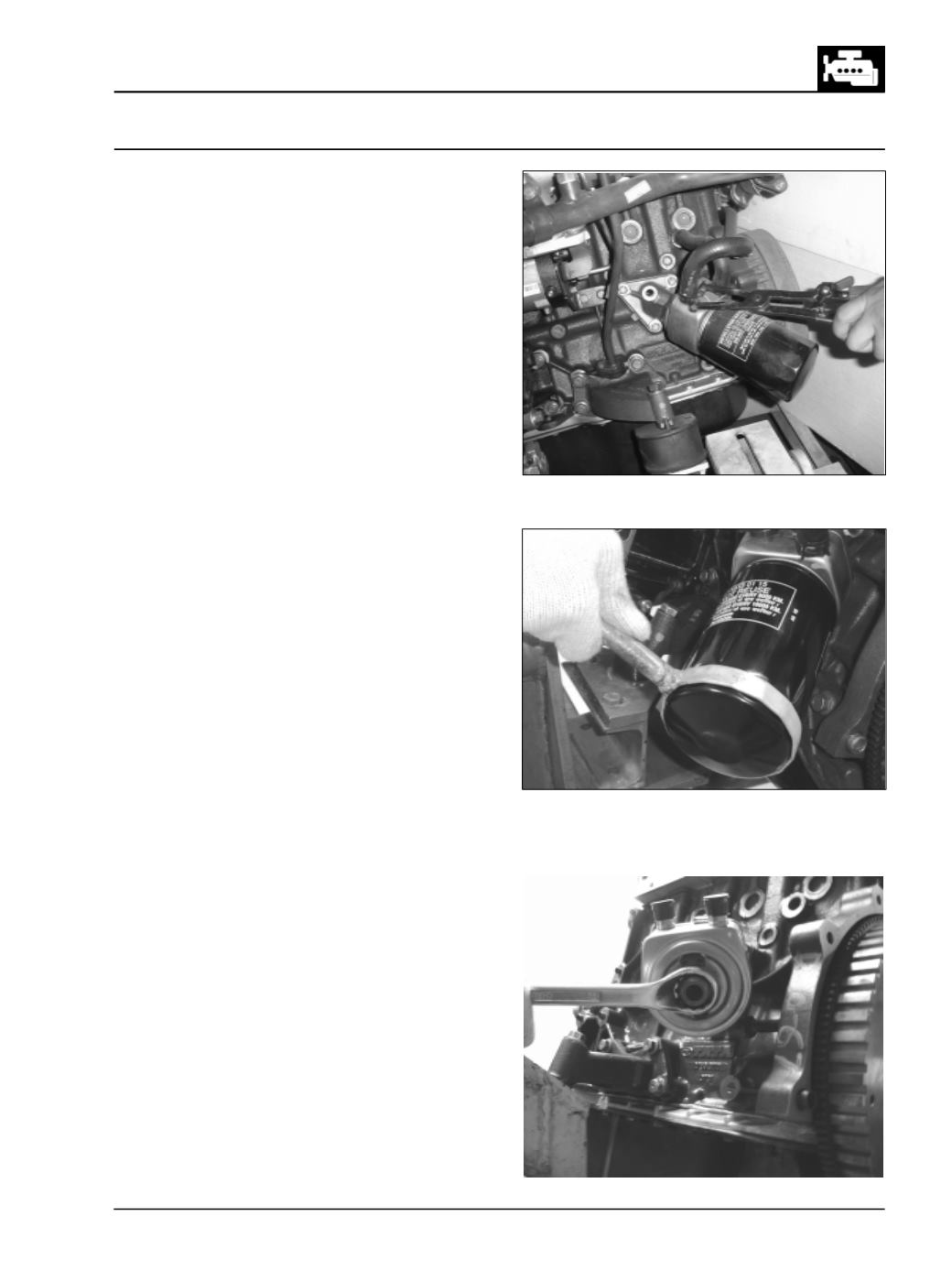

Fig. 199
Fig. 200
Fig. 201
Oil filter &Oil Cooler
Removal
l
Drain the oil from the Engine. Disconnect the Oil
cooler cooling hoses. (Fig. 199)
l
Remove oil filter using special spanner (part no.
2654 5890 18 01). (Fig. 200)
l
Remove oil cooler assembly from crankcase. (Fig.
201)
Fitment
l
Assemble oil cooler with NEWgasket. Tighten the
adaptor to specified torque. (Fig. 201)
