ENGINE2.2LDICOR
l

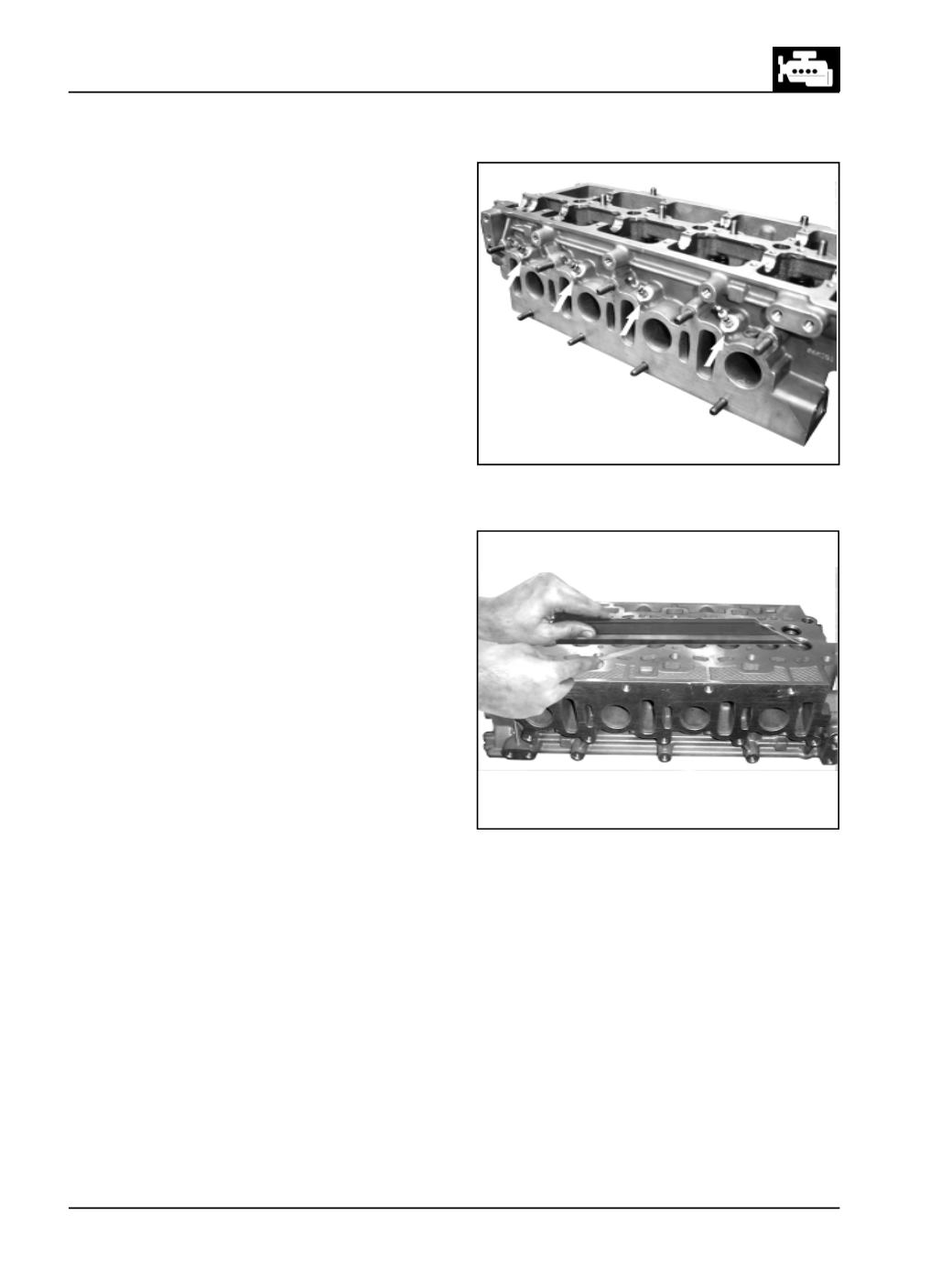

Using a straight edge and feeler gauge, check
evenness of cylinder head parting surface with
crank case. If unevenness exceeds specified values,
replace cylinder head.
l
Permissible unevenness of cylinder head mating
surface-0.030 mm (Length wise) (Fig. 60)
l
Permissible unevenness of cylinder head mating
surface-0.015mm (Cross wise)
NOTE
Cylinder head top and bottom surface remachining
in service is not permitted.
CheckingCylinder HeadMating Surface
Fig. 59
l
Remove the glow plugs. (Fig. 59)
Fig. 60
