SAFARI

ENGINE2.2LDICOR

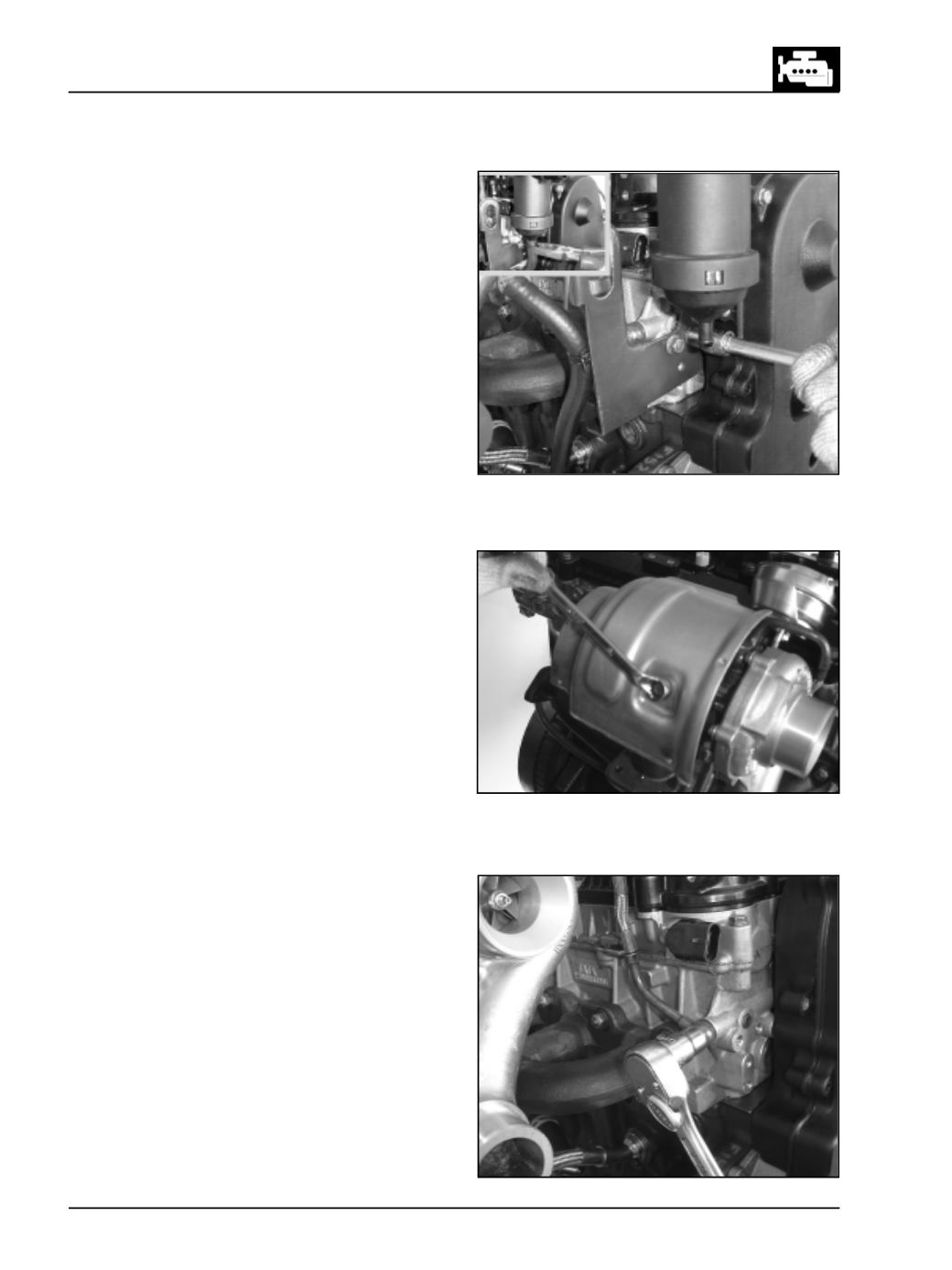

Fig.19

Fig.20

Fig. 21

Remove the oil seperator by disconnecting Its

connections to cylinder block, Cylinder head Cover

& Air intake hose. (Fig.19)

Remove close coupled catalytic converter

connected to VNT (turbocharger) - Refer exhaust

system section of this manual.

Remove the heat shield -VNT. (Fig. 20)

Remove theoil supply lines of VNT. (Fig.21&Fig.22)
