ENGINE2.2LDICOR

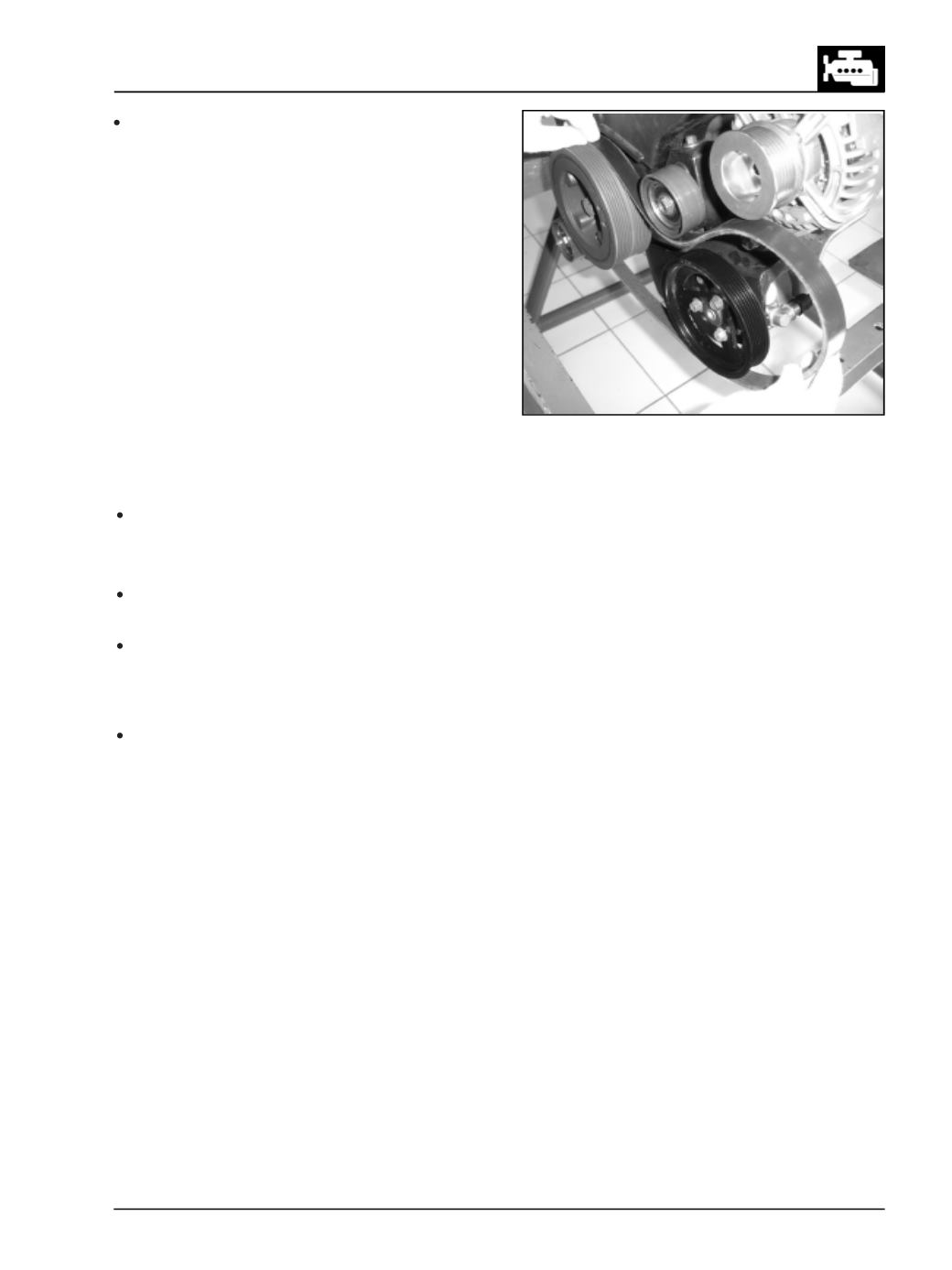

Fig. 6
Remove the belt. (Fig. 6)
Inspection
Inspect theAC Compressor belt for wear, cracks
and signs of failures. Replace if necessary.
Fitment
Install the belt over crank shaft pulley, PS Pump
pulley, Alternator pulley and belt tensioner.
Rotate the belt tensioning screw in anticlockwise
direction till correct belt tension is set. Tighten
the tensioner mounting nut with 4 Kgm torque.
Check belt tension.
Check the frequency in SPAN (Alternator to PS
pump) with CLAVIS gauge. Frequency should be
250+10 Hz for new belt. Belt to be re-tensioned
to 220+10Hz on vehicle after running for 15 mins.
