30. IMPORTANT BODY DIMENSIONS

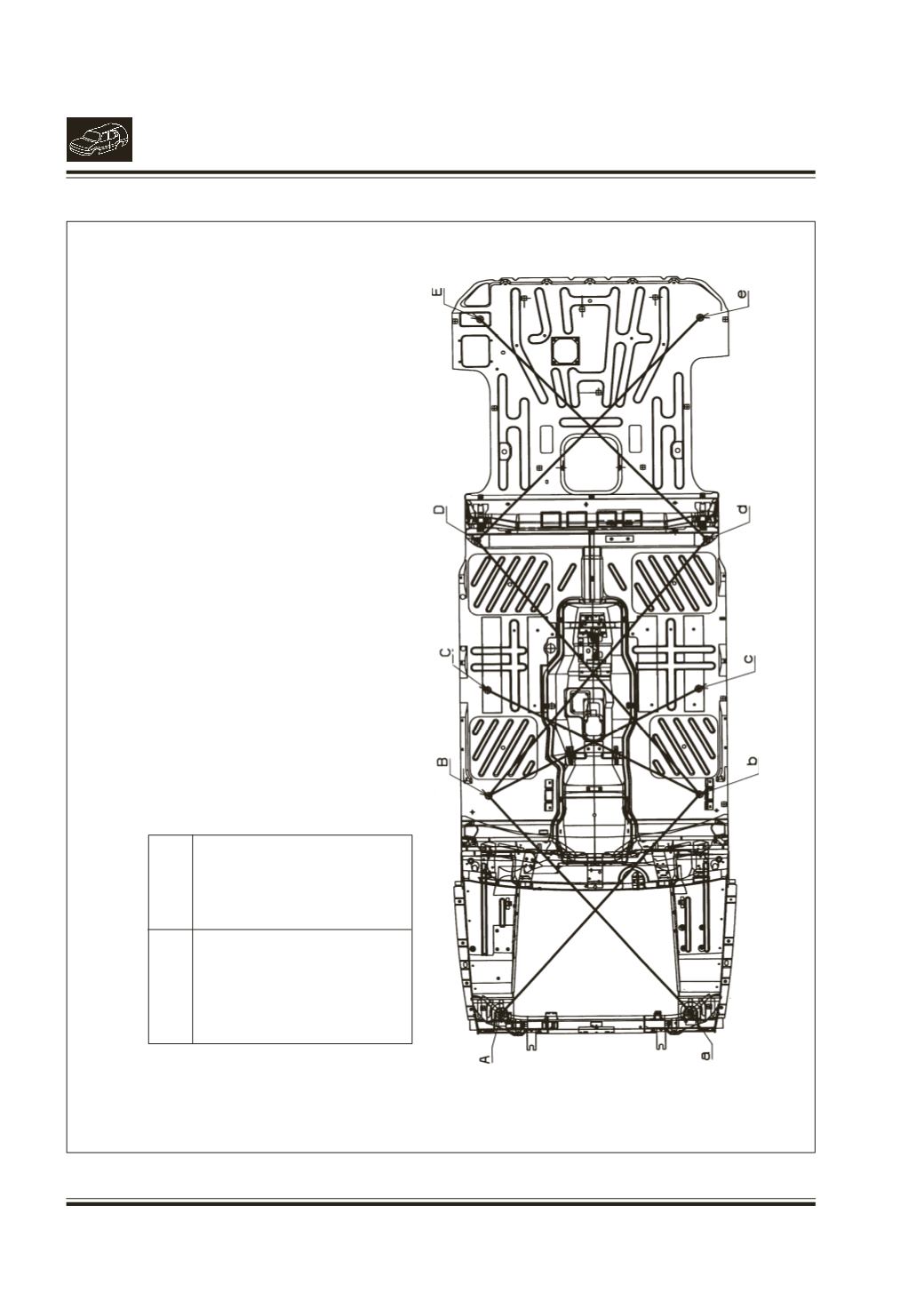

DIMENSIONS IN PLAN VIEW
Measurement
Length
Position
in mm
A-b
1598
a-B
1598
B-c
1278
b-C
1278
B-d
1834
b-D
1834
D-e
1707
d-E
1707
|
|
