13. REMOVAL/INSTALLATION OF BONNET

(Fig. 18)

REMOVAL

l

Open the bonnet and support it with a suitable

method.

l

Disconnect engine inspection lamp.

l

Remove ball joint locking clips of balancer rod

and remove balancer rod from RH & LH sides.

l

Support the bonnet properly and remove hinge

mounting screws on bonnet fromRH & LH sides.

l

Remove the bonnet.

INSTALLATION

l

Locate the bonnet on the hinges

l

Support the Bonnet with a suitable method and

hold it in proper position.

l

Fit 3 flanged screws for hinge mounting RH & 3

flanged screws for hinge mounting LH to the

bonnet.

l

Ensure correct position of the bonnet by closing

and opening the bonnet.

l

Assemble balancer rod on ball pins and lock with

locking clips on RH and LH side.

l

Tighten the hinge mounting screws.

l

Connect the engine inspection lamp.

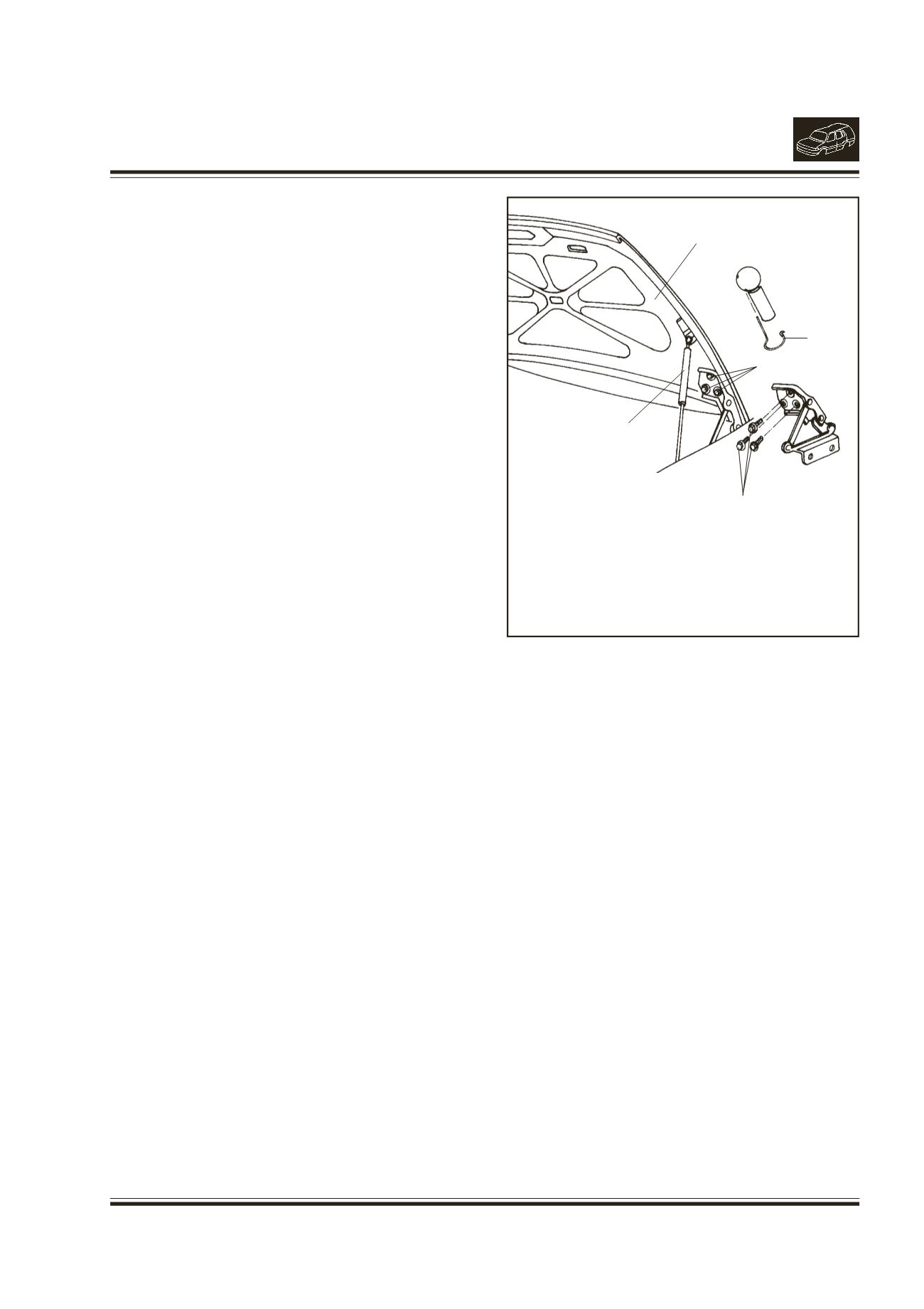

Fig. 18.

1.

LOCKINGCLIP

2.

BALANCERROD

3.

MOUNTINGSCREWS

4.

BONNET

1

2

3

3

4
