ELECTRICALS
17F. FLASHER UNIT :
Function
It provides blinking output to side indicators and
hazard warning lamps.
Location
It is located in cabin fuse box.
Connection details

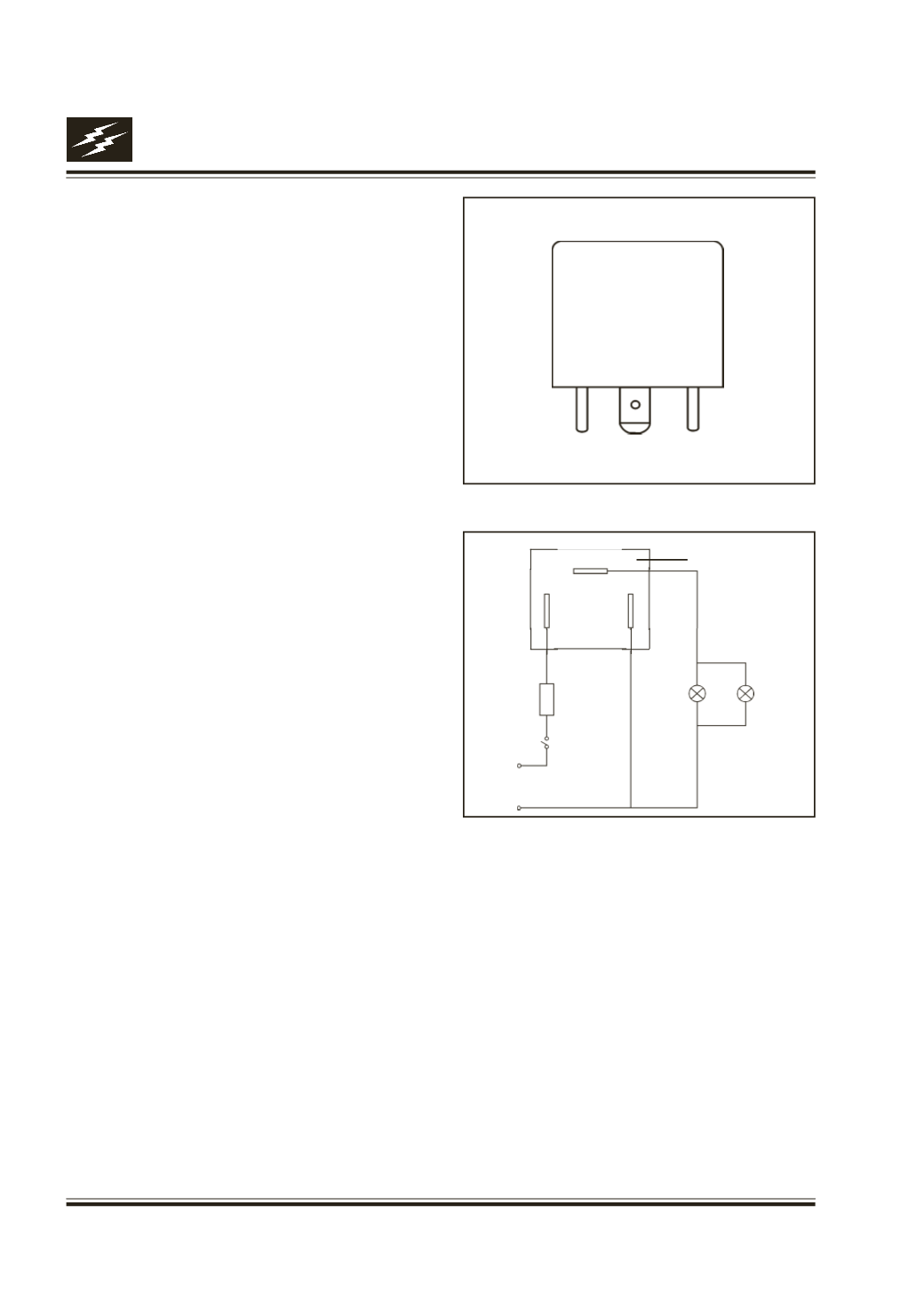

Connection details are shown in Fig.49
Checking flasher unit
a) Connect bulb to the flasher unit and battery as
shown in Fig. 50. The bulb should blink at 90
±
30 cpm.
b) Disconnect one of 21 W bulbs. The remaining
bulb should blink atleast 1.8 times of (a) or 140
cpm whichever is greater.
Please refer electrical circuits of Hazard warning
& DI flasher system.
B L E
Fig. 50
Fig. 49
+
FLASHER
5 A
Fuse
SWITCH
12 V
24 W x 2
-
B
E
L
