ELECTRICALS
6. ALTERNATOR :

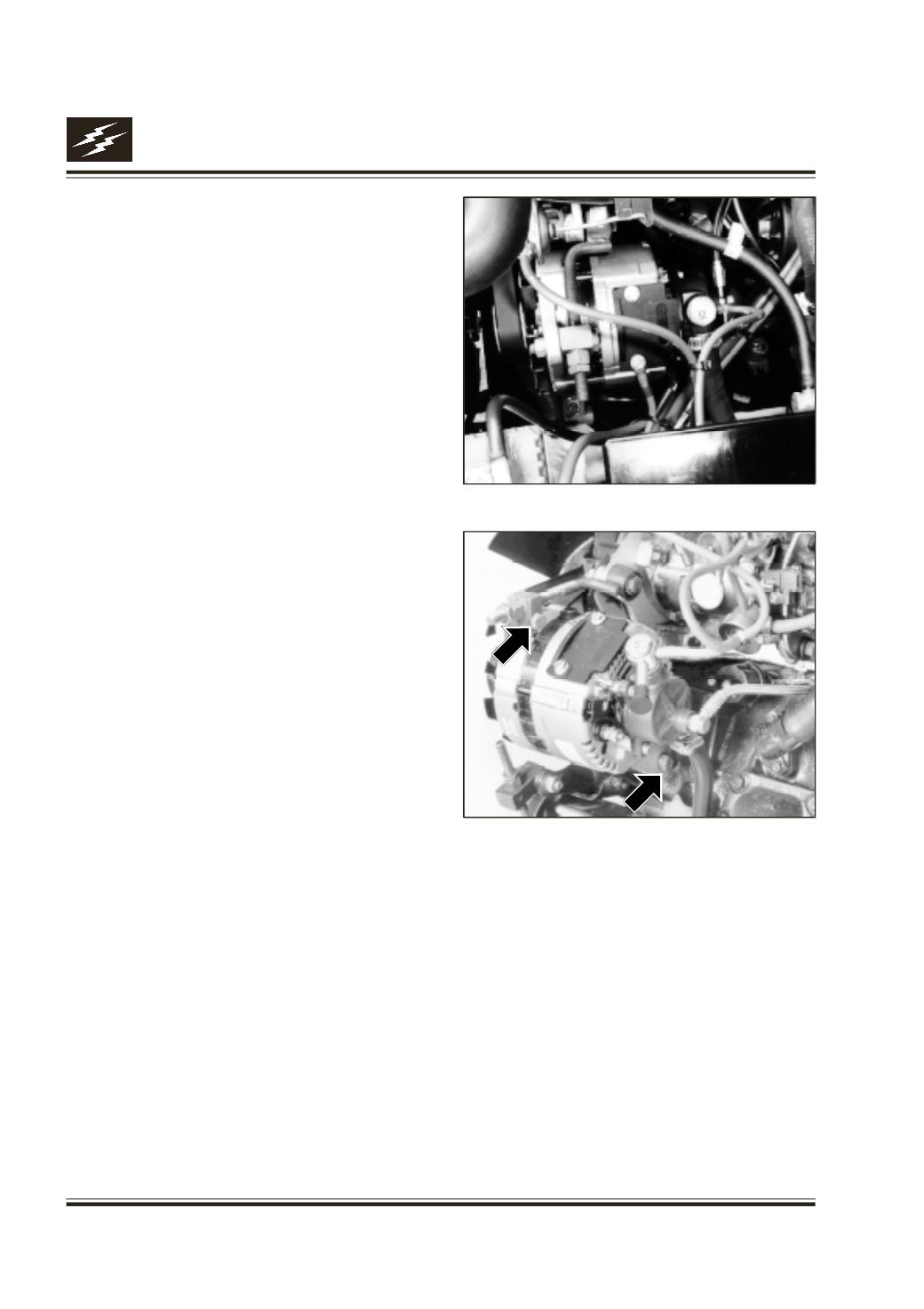

Removal : Fig. 6 & 7
l Disconnect battery earth lead.
l Loosen nut securing cable to alternator and
release cable.
l Disconnect multiplug from alternator.
l Remove nut and bolt securing alternator to
adjustment bracket.
Note : For more details on removal / fitment of
alternator, starter motor refer Engine Group.
l Loosen bolt securing alternator to engine.
l Release drive belt tension by turning the tension
adjusting bolt anti-clockwise.
l Release drive belt from alternator pulley.
l Remove nut and bolt securing alternator to
engine.
l Release alternator from bracket and remove
alternator.
Fitment :
l Position alternator to engine and locate in support
bracket.
l Fit nut and bolt securing alternator to engine, but
do not tighten.
l Clean pulley vee‘s.
l Locate drive belt to alternator pulley. Ensure
grooves on drive belt and pulleys are correctly
located.
l Fit nut and bolt securing alternator to adjustment
bracket.
l Adjust drive belt tension.
l Connect multiplug and cable to alternator, fit and
tighten cable nut.
l Connect battery earth lead.
Fig. 7
Fig. 6
