SAFARI

ELECTRICALS

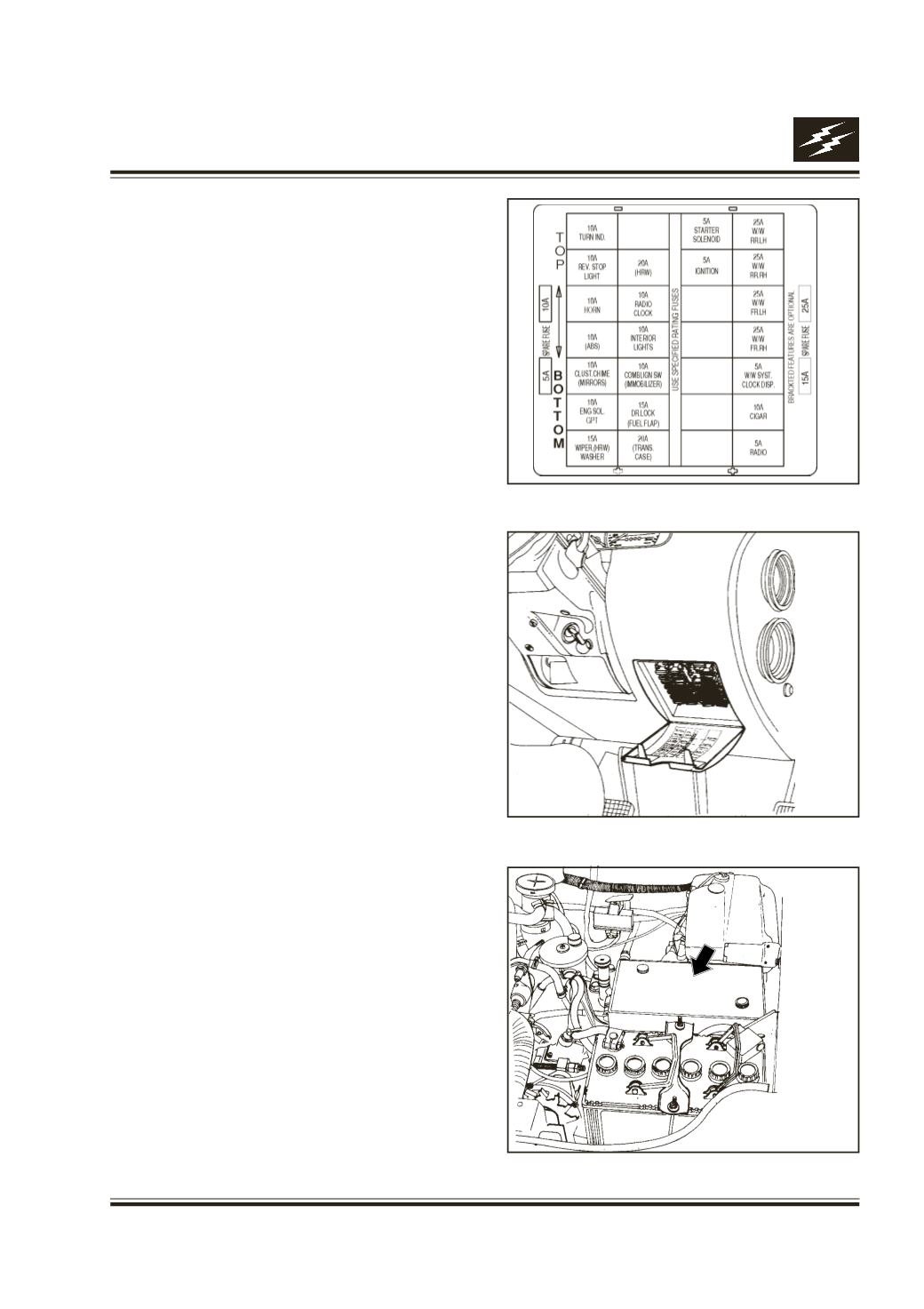

FUSES

Fig. 3

All the electrical circuits in the vehicle have fuses

to protect them from a short circuit or overload.

These fuses are located in 2 fuse boxes.

The interior fuse box is below the dash board on

driver’s side. Fig. 4 Remove the fuse box lid by

grabbing and pulling down the slot.

The under bonnet fuse box is located in engine

compartment on LHS. Fig. 5

Fuses & relays shown here are for guidance only.

The actual fuse & relay location are given on

the covers of the respective fuse/relay boxes.

Checking and Replacing Fuses

If any electrical unit in the vehicle has stopped

functioning, the fuses should be checked first.

Turn the ignition key to lock position.

Remove the cover of the fuse box.

Check each fuse and look for burnt wire inside

the fuse. If it is burnt, replace it with one of the

spare fuses of same rating.

If the replacement fuse of same rating burns out

then, there is probably a serious electrical

problem. Get the defect rectified.

FUSE BOX

Fig. 4

Fig. 5

Fig. 3
